Hyundai Ioniq 5 N 2025 Fuse Box Info

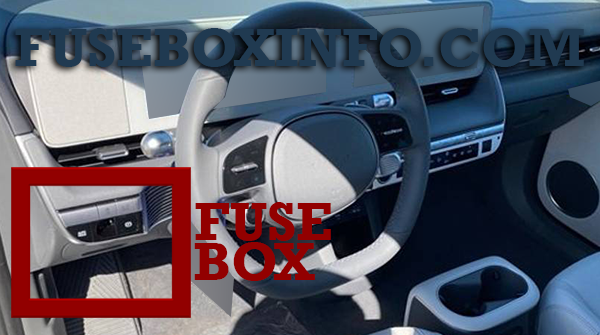

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

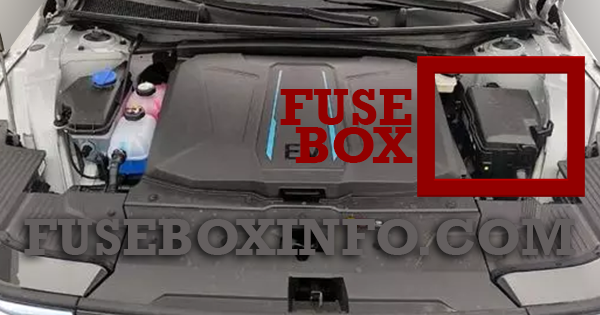

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ESC | 15A | ECS Unit |
| ADP SPEAKER FRT |
15A | FRT ADP SPEAKER |
| A/C 1 | 7.5A | A/C Control Module |
| BRAKE SWITCH |
7.5A | BDC, Stop Lamp Switch |
| MEMORY | 10A | A/C CONTROL MODULE, HUD UNIT, MOOD LAMP(MASTER UNIT, DOOR), WPC, USB JACK, CLUSTER, ADAS PRK ECU, BDC, ADP UNIT, REAR CORNER RADAR |
| AIRBAG IND | 7.5A | OVERHEAD CONSOLE PAB LAMP |
| E-SHIFTER 3 | 10A | SBW LEVER COMPLETE |
| IG3 9 | 10A | BMS, REAR INVERTER |
| MODULE 7 | 10A | P/WDW MAIN SW, O/S HDL DRIV/PASS |
| CCU | 10A | CCU |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | DCU, CCU, STOP LAMP SWITCH |
| IG3 8 | 10A | ICCU, V2L, SCU, VCMS, REAR EOP, CCU |
| WIRELESS DCU |
10A | DCU |
| CHILD LOCK | 15A | REAR DOOR LATCH LH/RH |
| MULTIMEDIA | 25A | CCNC |
| MODULE 4 | 10A | WPC, C/PAD SW, CCNC, DATA LINK CONNECTOR, ECM(DCM), ADP, EXT AMP, HEAD LAMP OPTION TYPE LH/RH |
| CLUSTER | 7.5A | CLUSTER, HUD UNIT |
| IG3 7 | 10A | CCNC, A/C CONTROL MODULE, PTC HTR, INCAR SNSR, PM SNSR |
| SBCM DRV | 20A | SBCM DRIV UNIT |
| SBCM PASS | 20A | SBCM PASS UNIT |
| MODULE 6 | 7.5A | DATA LINK CONNECTOR |
| TAILGATE OPEN |
10A | TAILGATE LATCH |
| VISION ROOF | 10A | VISION ROOF ECU |
| MODULE 8 | 7.5A | MULTI FUNCTION SW, P/WDW MAIN SW |
| MODULE 1 | 10A | CCU, ADAR PRK ECU, BDC, CCNC, KEYBOARD, DCU, PE ROOM J/B P/OUTLET RLY COIL, EXT AMP, ADP UNIT, FR ADP SPEAKER, RR ADP SPEAKER |
| S/HEATER FRT | 25A | FR PASS SEAT HEATER ECU |
| WASHER | 15A | MULTI FUNCTION SW |
| MODULE 9 | 10A | DATA LINK CONNECTOR, RAIN SNSR, HAZARD SW MULTI FUNCTION SW, PTGM |
| BDC 1 | 10A | UWB BLE MASTER/SLAVE, BDC, UWB REAR LH/RH, UWB FR LH/RH |
| AIRBAG 1 | 10A | AIRBAG CONTROL UNIT |
| USB CHARGER | 15A | RR USB CHARGER, CTR USB CHARGER, USB JACK |
| ADP SPEAKER REAR |
15A | REAR ADP SPEAKER |
| P/WINDOW RH | 25A | RR RH P/WDW SW, FR DRIV SAFETY ECU |
| MODULE 5 | 7.5A | BDC |
| BATTERY MANAGEMENT |
10A | BMS |
| S/HEATER REAR RH |
25A | REAR SEAT RH HEATER ECU |
| AMP | 25A | EXT AMP |
| MODULE 3 | 10A | C/PAD SW, ADAS DRV ECU, FR CAMERA(W/S GLASS) ADAS PRK ECU, RR INVERTER, RR C/RADAR, SCC RADAR ECS UNIT, FR INVERTER, ELSD ECU, FR C/RADAR |
| P/WINDOW LH | 25A | FR PASS P/WDW SW, RR LH P/WDW SW, FR PASS SAFETY ECU(RHD) |
| AIRBAG 2 | 10A | AIRBAG CONTROL UNIT |
| DOOR LOCK | 20A | FR DOOR ACTR DRIV/PASS, RR DOOR ACTR LH/RH |
| S/HEATER REAR LH |
25A | REAR SEAT LH HEATER ECU |
| AAF | 10A | AAF UNIT UPR/LH/RH |
| E-LSD | 20A | E-LSD ECU |
| EPCU 2 | 10A | RR INVERTER |

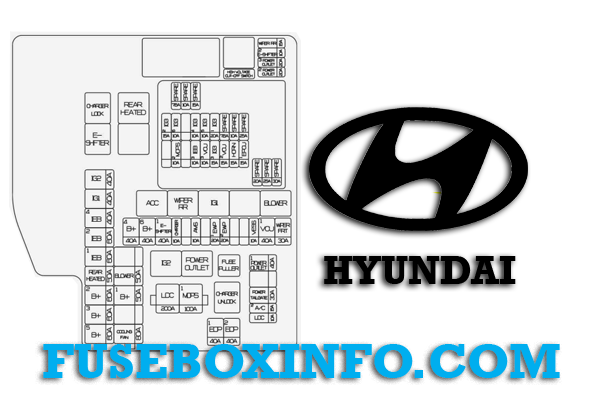

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 200A | PE ROOM J/B (FUSE: A/CON2, PTGM, EOP2, EOP1, P/OUTLET) |
| MDPS 1 | 100A | MDPS UNIT |
| IG2 | 40A | PE ROOM J/B (RELAY: IG2) |
| IG1 | 40A | PE ROOM J/B (RELAY: ACC, IG1) |
| IEB4 | 40A | DATA LINK CONNECTOR (DIAGNOSIS) |
| IEB2 | 60A | IEB UNIT |
| IEB1 | 60A | IEB UNIT |
| RR HTD | 50A | PE ROOM J/B (RELAY: RR HTD) |
| B+2 | 60A | PDC (FUSE: CHILD LOCK, BDC1, BRAKE SW, CCU, S/HEATER RR LH / RH, DR LOCK, TAILGATE OPEN), (RLY: AUTO CUT RLY) |
| B+3 | 60A | PDC (FUSE:ECS, E-LSD, EPCU2, ADP SPKR RR, S/HEATER FRT ADP SPKR FR, P/WINDOW LH/RH, SBCM DRIV/PASS, DCU, MODULE7 |
| B+5 | 60A | PCB BLOCK (FUSE: EPCU1, VCU2, WIPER1, B/A HORN, HORN) (RLY: IG3) |
| BLOWER | 50A | PE ROOM J/B (RELAY: BLOWER) |
| B+1 | 50A | PDC (FUSE: AMP, MODULE9, BATTERY MANAGEMENT, AAF, AIR BAG2, VISION ROOF) |
| COOLING FAN |
80A | COOLING FAN UNIT |
| RR WIPER | 15A | PE ROOM J/B (RELAY: RR WIPER) |
| E-SHIFTER2 | 10A | PE ROOM J/B (RELAY: E-SHIFTER1 RLY COIL) SCU, SBW LEVER COMPLETE |
| POWER OUTLET3 |
20A | RR POWER OUTLET |
| POWER OUTLET2 |
20A | FR POWER OUTLET |
| B+4 | 40A | PDC (IPS9, IPS12, IPS11, IPS8, IPS10) |
| B+6 | 40A | PDC (IPS3, IPS7, IPS2, IPS6, IPS5, IPS1, IPS4) |
| E-SHIFTER1 | 40A | PE ROOM J/B (RELAY: E-SHIFTER1) |
| CHARGER | 10A | PE ROOM J/B (RELAY: CHARGER LOCK/UNLOCK SW, COIL) ICCU, VCMS |
| AMS | 15A | BATT SENSOR |
| EWP1 | 20A | EWP BATT 1 |
| EWP2 | 20A | EWP BATT 2 |
| IG3 10 | 20A | PE ROOM J/B (RELAY: IG3) |
| VESS | 10A | VESS UNIT |
| VCU1 | 40A | VCU |
| FRT WIPER | 30A | FRT WIPER MOTOR |
| POWER OUTLET1 |
40A | PE ROOM J/B (RELAY : P/OUTLET) |
| POWER TAILGATE |
30A | POWER TAILGATE MODULE |
| A/C2 | 15A | A/C CONTROL MODULE |
| LDC | 10A | DATA LINK CONNECTOR |
| EOP1 | 40A | RR EOP |
| EOP2 | 40A | FRT EOP |
| IG3 2 | 15A | VCU |
| IG3 6 | 10A | COOLING FAN, FRT EOP |
| IG3 4 | 10A | COOL VALVE, FRT INVERTER, EWP1, EWP2, E_COMP |
| IG3 5 | 10A | 3WAY VALVE |
| IG3 1 | 20A | PDC (FUSE : IG3 7, IG3 8, IG3 9) |
| B/A HORN | 10A | PCB BLOCK (RLY : B/A HORN RLY) |
| MDPS 2 | 10A | MDPS |
| IEB 3 | 10A | IEB UNIT, DATA LINK CONNECTOR (DIAGNOSIS) |
| VCU 3 | 10A | VCU |
| IG3 3 | 15A | RR PE EWP |
| VCU 2 | 15A | VCU |
| HORN | 15A | PCB BLOCK (RLY : HORN RLY) |
| EPCU 1 | 15A | FRT INVERTER |
