Hyundai Elantra Hybrid 2024 Fuse Box Info

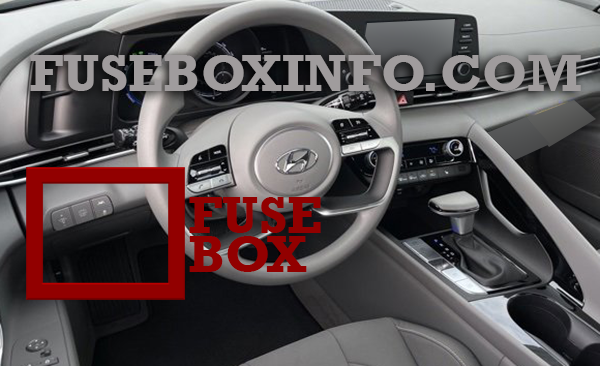

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

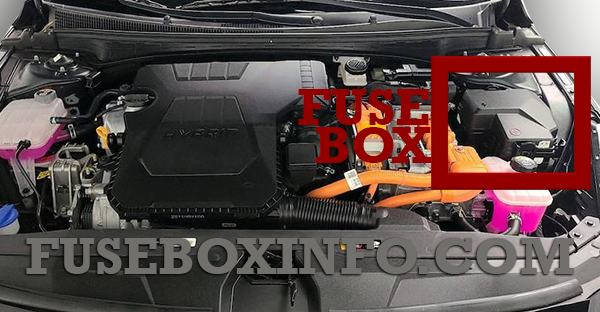

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MEMORY1 | 10A | Instrument Cluster, A/C Controller, A/C Control Module |
| AIR BAG2 | 10A | SRS Control Module |
| MODULE4 | 10A | Front View Camera, Crash Pad Switch, IBU, Front Console Switch |
| MODULE7 | 7.5A | Rear Seat Warmer Control Module |
| START | 7.5A | Burglar Alarm Relay, Transaxle Range Switch, HPCU |
| BATTERY MANAGEMENT |
10A | BMS Control Module |
| CLUSTER | 7.5A | Instrument Cluster |
| IBU2 | 7.5A | IBU |
| A/C1 | 7.5A | A/C Controller, A/C Control Module, PM Sensor, E/R Junction Block (Blower Relay, PTC Heater1/2 Relay), Electronic A/C Compressor |
| TRUNK | 10A | Trunk Lid latch |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module |
| P/WINDOW LH | 25A | Power Window Main Switch |
| MULTIMEDIA | 15A | Audio, A/V & Navigation Head Unit |
| FCA | 10A | Front Radar |
| MDPS | 7.5A | MDPS Unit |
| MODULE6 | 7.5A | IBU, IAU |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| SAFETY P/ WINDOW DRV |
25A | Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Passenger Power Window Switch, Power Window Main Switch |
| BRAKE SWITCH | 10A | IBU, Stop Lamp Switch |
| IBU1 | 15A | IBU, Sport Mode Switch |
| SAFETY P/WINDOW PASS |
25A | SAFETY ECU PASS |
| MODULE2 | 10A | E/R Junction Block (Power Outlet Relay), AMP, IBU, IAU, Audio, Power Outside Mirror Switch, BMS, A/V & Navigation Head Unit |
| AIR BAG1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE5 | 10A | A/T Shift Lever Indicator, Front Wireless Charger, A/C Controller, Electro Chromic Mirror, A/C Control Module, Audio, A/V & Navigation Head Unit, AMP, Data Link Connector, Rear Seat Warmer Control Module, Front Seat Warmer Control Module |
| AMP | 25A | AMP |
| HEATED MIRROR | 10A | Driver/Passenger Outside Mirror Heated, A/C Control Module, A/C Controller, ECU (N Line only) |
| DOOR LOCK | 20A | Door Lock/Unlock Actuator |
| IAU | 10A | IAU, Driver/Passenger Door NFC Module |
| MODULE3 | 7.5A | Sport Mode Switch, Stop Light Switch, IAU |
| A/BAG IND | 7.5A | Instrument Cluster, Overhead Console Lamp |
| WASHER | 15A | Multifunction Switch |
| P/SEAT DRV | 30A | Passenger Power Seat |
| WIPER | 10A | PCM/ECM, IBU |
| MODULE1 | 10A | Driver/Passenger Smart Key Outside Handle, Vess, Data Link Connector, Hazard Switch, Key Solenoid |
| SUNROOF | 20A | Sunroof Motor |
| USB CHARGER | 15A | Front USB Charger, Console USB Charger |
| IG1 | 25A | PCB Block (Fuse - IEB4, ECU3, TCU2, EWP3) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 80A | MDPS Unit |
| COOLING FAN2 | 60A | [G4FP] Cooling Fan Controller |
| COOLING FAN | 60A | Cooling Fan Motor |
| IEB 3 | 60A | IDB Unit |
| PTC HEATER 2 | 50A | PTC Heater 2 Relay |
| REAR HEATED | 40A | Rear Glass Heated |
| B+5 | 60A | PCB Block (Engine Control Relay, Fuse - ECU 2/HORN/WIPER) |
| B+1 | 60A | ICU Junction Block (IPS2/IPS5/IPS6/IPS7/IPS14) |
| B+2 | 60A | ICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10) |
| B+3 | 50A | ICU Junction Block (Fuse - TRUNK, AMP, SAFETY P/WINDOW DRV, SAFETY P/WINDOW PASS, EWP2, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, S/HEATER RR, Long Term Load Latch Relay) |
| IEB 2 | 60A | IDB Unit |
| PTC HEATER | 50A | PTC Heater |
| BLOWER | 40A | BLOWER Motor, Multipurpose Check Connector |
| IG1 | 40A | E/R Junction Block (PDM (IG1/ACC) Relay), Ignition Switch |
| IG2 | 40A | E/R Junction Block (PDM (IG2) Relay, Ignition Switch |
| BATTERY C/ FAN 1 |
15A | Battery C/Fan |
| IEB1 | 40A | IDB Unit, Multipurpose Check Connector |
| CLUTCH ACTUATOR |
30A | Clutch Actuator |
| POWER OUTLET 1 |
40A | Power Outlet |
| EWP 2 | 10A | Auxiliary Electric Water Pump |
| EWP 1 | 10A | Electric Water Pump |
| POWER OUTLET 2 |
20A | Front Power Outlet |
| DCT 1 | 40A | TCM |
| DCT 2 | 40A | TCM |
| B+4 | 40A | ICU Junction Block (Power Window Relay, Fuse - AIR BAG 2, IBU 1, BRAKE SWITCH, DOOR LOCK, MODULE 1, SUNROOF, IAU, BMS) |
| HEV ECU 1 | 10A | HPCU |
| IG3 | 20A | IG3 Relay |
| TCU 1 | 10A | TCM |
| FUEL PUMP | 20A | Fuel Pump Motor |
| HEV ECU 2 | 10A | HPCU, BMS Control Module |
| BATTERY C/ FAN 2 |
10A | Battery C/Fan Relay |
| WIPER | 25A | Wiper Motor |
| HORN | 15A | Horn |
| IGN COIL | 20A | Ignition Coil #1 ~ #4 |
| ECU2 | 15A | ECM |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| SENSOR2 | 10A | Camshaft Position Sensor #1/#2 (Intake/Exhaust), Mass Air Flow Sensor, ELCM, Oil Control Valve #1/#2 (Intake/Exhaust), Cooling Fan, Purge Control Solenoid Valve |
| ECU3 | 10A | ECM, HPCU, Clutch Actuator |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| IEB 4 | 10A | IDB Unit, Multipurpose Check Connector |
| EWP 3 | 10A | Auxiliary Electric Water Pump |
| ECU1 | 20A | ECM |
| TCU2 | 15A | Transaxle Range Switch, TCM |
