Hyundai Veloster 2021 Fuse Box Info

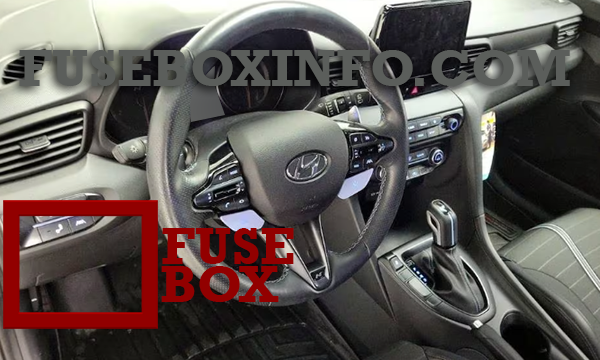

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

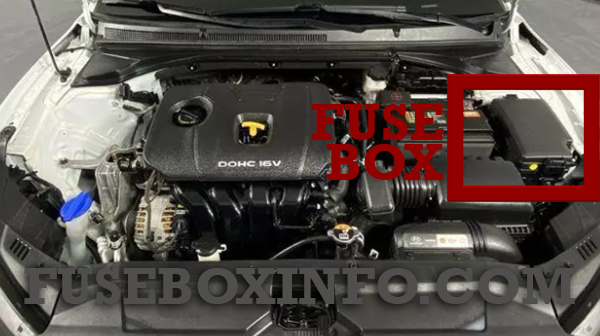

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MODULE5 | 7.5A | A/T Shift Lever IND., Electro Chromic Mirror, A/V & Navigation Head Unit, A/C Control Module, Crash Pad Switch, Front Seat Warmer Module, Audio |
| MODULE3 | 7.5A | Sport Mode Switch, BCM |
| SUNROOF1 | 20A | Sunroof Control Module (GLASS) |
| TAIL GATE OPEN | 10A | Tail Gate Relay |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| MULTI MEDIA | 15A | Keyboard, Audio, A/V & Navigation Head Unit |
| P/WINDOW RH | 25A | Power Window RH Relay |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch |
| SPARE | - | Spare |
| MODULE4 | 7.5A | Blind-Spot Collision Warning Unit LH/RH, Stop Lamp Switch, Parking Assist Buzzer, Lane Keeping Assist Unit |
| PDM2 | 7.5A | Smart Key Control Module, Immobilizer Module |
| SUNROOF2 | 20A | Sunroof Control Module (ROLLER) |
| INTERIOR LAMP | 7.5A | Vanity Lamp LH/RH, Center Room Lamp, Luggage Lamp, Overhead Console Lamp, Wireless Charger Unit |
| SPARE | - | Spare |
| SPARE | - | Spare |
| MEMORY | 10A | A/C Control Module, Head Up Display, Instrument Cluster |
| SPARE | - | Spare |
| AMP | 30A | AMP |
| MODULE6 | 7.5A | Smart Key Control Module, BCM |
| MDPS | 7.5A | MDPS Unit |
| MODULE1 | 7.5A | BCM, Rain Sensor, Ignition Key Interlock Switch, Hazard Switch, Data Link Connector |
| MODULE7 | 7.5A | Front Seat Warmer Module, PCB Block (A/Con Comp Relay) |
| A/BAG IND | 7.5A | Instrument Cluster, Hazard Switch |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, Smart Key Control Module |
| START | 7.5A | Transaxle Range Switch (DCT), ECM, Ignition Lock & Clutch Switch, E/R Junction Block (START #1 Relay, B/Alarm Relay), Smart Key Control Module |
| CLUSTER | 7.5A | Head Up Display, Instrument Cluster |
| DOOR LOCK | 20A | ICM Relay Box (Twoturn Unlock Relay) |
| PDM3 | 7.5A | Start Stop Button Switch, Immobilizer Module |
| FCA | 10A | Forward Collision Avoidance Assist Unit |
| S/HEATER | 20A | Front Seat Warmer Module |
| A/C2 | 10A | - |
| A/C1 | 7.5A | A/C Control Module, E/R Junction Block (Blower Relay) |
| PDM1 | 15A | Smart Key Control Module |
| SPARE | - | Spare |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection |
| IG1 | 25A | PCB Block(FUSE : ECU5, VACUUM PUMP, ABS3, TCU2) |
| MODULE2 | 10A | Wireless Charger Unit, Smart Key Control Module, Audio, Amp, Keyboard, A/V & Navigation Head Unit, USB Charge, Power Outside Mirror Switch, BCM |
| WASHER | 15A | Multifunction Switch |
| WIPER (LO/HI) | 10A | BCM |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| WIPER FRT | 25A | Front Wiper Motor, PCB Block (Front Wiper(Low) Relay) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| POWER OUTLET | 20A | Front Power Outlet |
| SPARE | - | Spare |
| HEATED STEERING | 15A | BCM |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 150A | Alternator, E/R Junction Block (Fuse - MDPS, B/ALARM HORN, ABS1, ABS2) |
| MDPS | 80A | MDPS Unit |
| B+5 | 60A | PCB Block ((Fuse - ECU4, ECU3, HORN, A/CON COMP (G4NH)), Engine Control Relay) |
| B+2 | 60A | IGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2) |
| B+3 | 60A | IGPM (IPS3, IPS4, IPS5, IPS6) |
| B+4 | 50A | IGPM (Fuse - P/WINDOW LH/RH, TAILGATE OPEN, SUNROOF1/2, AMP, P/SEAT(DRV)) |
| COOLING FAN1 | 60A | E/R Junction Block (C/Fan2 Hi Relay) (G4FJ) |
| REAR HEATED | 40A | E/R Junction Block (Rear Heated Relay) |
| BLOWER | 40A | E/R Junction Block (Blower Relay) |
| IG1 | 40A |
W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (PDM #2 Relay (ACC), PDM #3 Relay (IG1)) |
| IG2 | 40A |
W/O Smark Key : E/R Junction Block (START #1 Relay), Ignition Switch With Smark Key : E/R Junction Block (START #1 Relay, PDM #4 Relay (IG2)) |
| FUEL PUMP | 20A | E/R Junction Block (Fuel Pump Relay) |
| VACUUM PUMP1 | 20A | Vacuum Pump |
| TCU1 | 15A | TCM |
| COOLING FAN2 | 40A | E/R Junction Block (C/Fan1 Low Relay, C/Fan2 Hi Relay) (G4NH) |
| B+1 | 40A | IGPM ((Fuse - BRAKE SWITCH, PDM1, PDM3, MODULE1, DOOR LOCK), Leak Current Autocut Device) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| B/ALARM HORN | 15A | E/R Junction Block (B/ALARM Horn Relay) |
| ABS1 | 40A | ESC Module, ABS Control Module, Multipurpose Check Connector |
| ABS2 | 30A | ESC Module, ABS Control Module |
| SENSOR2 | 10A |
G4FJ : Canister Close Valve, Oil Control Valve #1/#2, RCV Control Solenoid Valve, Purge Control Solenoid Valve, E/R Junction Block (C/FAN2 HI Relay) G4NH : Canister Close Valve, Oil Control Valve #1/#2/#3, Electronic Thermostat, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, E/R Junction Block (C/FAN 1 Low Relay, C/FAN 2 HI Relay) |
| ECU2 | 10A | ECM (G4FJ) |
| ECU1 | 20A | ECM/PCM |
| INJECTOR | 15A | Injector #1/#2/#3/#4 (G4NH) |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| ECU3 | 15A | ECM/PCM |
| A/C | 10A | A/CON COMP Relay (G4NH) |
| ECU5 | 10A | ECM/PCM |
| VACUUM PUMP2 | 15A | Vacuum Pump (G4FJ) |
| ABS3 | 10A | ABS Control Module, ESC Module, Multipurpose Check Connector |
| TCU2 | 15A | Transmission Range Switch(A/T), TCM (With DCT) |
| SENSOR3 | 10A | E/R Junction Block (F/PUMP Relay) |
| ECU4 | 15A | ECM/PCM |
| HORN | 15A | Horn Relay |
[G4FJ] : 1.6 T-GDI
[G4NH] : 2.0 MPI
