Hyundai Veloster 2012 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

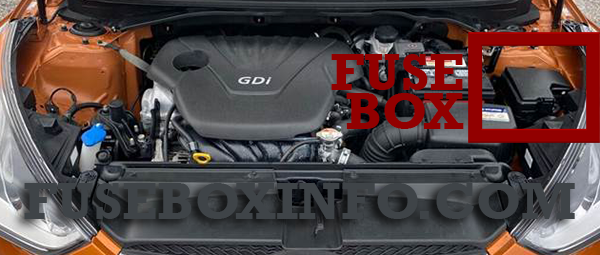

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| C/LIGHTER | 15A | Cigarette Lighter |
| DRL | 10A | Not Used |
| INVERTER 1 | 10A | Smart Key Control Module, A/C Inverter Module |
| MDPS | 10A | EPS Control Module |
| A/BAG IND | 10A | Instrument Cluster (Air Bag IND.) |
| POWER OUTLET | 15A | Power Outlet |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch |
| IG 2 | 10A | E/R Fuse & Relay Box (Front Wiper Relay, Blower Relay), Crash Pad Switch, Panaroma Sunroof Motor, A/C Control Module, IPS Control Module |
| WIPER FRT | 25A | Multifunction Switch, Front Wiper Motor, E/R Fuse & Relay Box (Front Wiper Relay) |
| CLUSTER | 10A | Instrument Cluster, Tire Pressure Monitoring Module, Sport Mode Switch, Shift Lever Indicator |
| AUDIO 2 | 10A | Power Outside Mirror Switch, AMP, A/V & Navigation Head Unit, MTS Module, Smart Key Control Module, IPS Control Module |
| MULTIMEDIA | 15A | A/V & Navigation Head Unit, MTS Module |
| A/BAG | 15A | Passenger Occupant Detection Sensor, SRS Control Module, Telltale |
| IG 1 | 10A | Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor Center LH/RH, Rear Parking Assist Buzzer, IPS Control Module, Driver/Passenger Seat Warmer, Driver/Passenger Seat Warmer Switch |
| SMART KEY 1 | 15A | Smart Key Control Module |
| MEMORY | 10A | Data Link Connector, Instrument Cluster, A/C Control Module |
| A/CON | 10A | ECM |
| ABS | 10A | ESC Module, ESC Off Switch, E/R Fuse & Relay Box (HAC Relay, Multipurpose Check Connector) |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Flasher Sound Relay, Tail Gate Latch Relay, Two Turn Unlock Relay, IPS Control Module |
| FOLD'G MIRR/ FOG LP RR | 15A | Not Used |
| STOP LP | 15A | Stop Lamp Switch, Key Solenoid, Stop Signal Relay, Smart Key Control Module |
| ECU 1 | 10A | Immobilizer Module, Smart Key Control Module, ECM, Stop Lamp Switch |
| AMP | 25A | AMP |
| INVERTER 2 | 25A | A/C Inverter Module |
| INTERIOR LAMP | 10A | Luggage Room Lamp, Map Lamp, Room Lamp, Vanity Lamp LH/RH, Overhead Console Lamp |
| SMART KEY 2 | 10A | Smart Key Control Module, Immobilizer Module, Start Stop Button Switch |
| TCU | 15A | TCM |
| TAIL LP LH | 10A | Rear Combination Lamp LH, License Lamp LH/RH, Shift Lever Indicator, Instrument Cluster, Multifunction Switch, Passenger Power Window Switch, Power Window Main Switch, AUX & USB Jack, Inside Miiror A/C Control Module, ESC Off Switch, A/V & Navigation Head Unit, Crash Pad Switch, Driver/Passenger Seat Warmer Switch, Head Lamp LH |
| S/HEATER | 20A | Driver/Passenger Seat Warmer |
| P/WDW LH | 25A | Power Window Main Switch |
| START | 10A | Burglar Alarm Relay, Transaxle Range Switch, Smart Key Control Module, ECM, TCM, E/R Fuse & Relay Box (Start Relay) |
| B/UP LP 1 | 15A | Back-Up Lamp Switch, Transaxle Range Switch |
| TAIL LP RH | 10A | Head Lamp RH, Rear Combination Lamp RH |
| SAFETY POWER WINDOW | 25A | Driver Safety Power Window Module |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| B/UP LP 2 | 10A | A/V & Navigation Head Unit, Transaxle Range Switch, MTS Module, TCM, Back-Up Lamp Switch, Rear Combination Lamp LH/RH, IPS Control Module |
| ECU 2 | 15A | Condenser, Ignition Coil #1/#2/#3/#4 |
| HTD MIRR | 10A | ECM, A/C Control Module, Dirver/Passenger Power Outside Mirror |
| P/SEAT DRV | 25A | Not Used |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | EPS Control Module |
| BLOWER | 40A | E/R Fuse & Relay Box (Blower Relay) |
| DCT 1 | 40A | TCM |
| RR HTD | 40A | E/R Fuse & Relay Box (Rear Defogger Relay) |
| ALT | 125A | E/R Fuse & Relay Box (Multi Fuse - DCT 1, MDPS, RR HTD, BLOWER), Alternator |
| ABS 2 | 30A | Multipurpose Check Connector, ESC Module |
| B+ 2 | 50A | Smart Junction Box (Power Window Relay, IPS Control Module (ARISU LT), Fuse - SAFETY POWER WINDOW, AMP) |
| B+ 1 | 50A | Leak Current Autocut Device (Room Lamp Relay, Leak Current Autocut Switch, Fuse - INTERIOR LAMP, MULTIMEDIA, MEMORY ), Fuse - S/HEATER |
| C/FAN | 40A | E/R Fuse & Relay Box (Cooling Fan (High) Relay, Cooling Fan (Low) Relay) |
| A/CON | 10A | E/R Fuse & Relay Box (A/CON Relay) |
| FOG LP FRT | 10A | E/R Fuse & Relay Box (Fog Lamp Relay) |
| HORN | 15A | E/R Fuse & Relay Box (Burglar Alarm Horn Relay, Horn Relay) |
| SUNROOF | 20A | Panorama Sunroof Motor |
| IG 2 | 40A | Ignition Switch, PDM Relay Box (IG 2 Relay), E/R Fuse & Relay Box (Start Relay) |
| IG 1 | 40A | Ignition Switch, PDM Relay Box (IG 1 Relay, ACC Relay) |
| SENSOR 1 | 20A | ECM |
| SENSOR 2 | 10A | Oil Control Valve #1 (Intake)/#2 (Exhaust), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, E/R Fuse & Relay Box (A/CON Relay) |
| SENSOR 3 | 15A | ECM, Oxygen Sensor (Up)/(Down), E/R Fuse & Relay Box (HAC Relay) |
| ECU 2 | 15A | ECM |
| DCT 3 | 15A | TCM |
| F/PUMP | 15A | E/R Fuse & Relay Box (Fuel Pump Relay) |
| ABS 1 | 40A | ESC Module |
| ECU 1 | 30A | E/R Fuse & Relay Box (Engine Conrol Relay, Fuse - ECU 2, ECU 3) |
| DCT 2 | 40A | TCM |
| B+ 3 | 50A | Smart Junction Box (Tail Lamp Relay, IPS Control Module (ARISU RT), Fuse - STOP LP, SMART KEY 1/2, INVERTER 2, DR LOCK ) |
| ECU 3 | 10A | Sport Mode Switch |
