Hyundai Santa Fe Hybrid 2023 Fuse Box Info
Passenger compartment fuse box location:

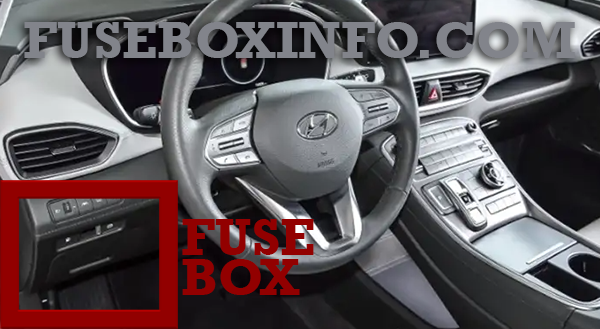

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Hybrid vehicle):
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | Stop Lamp Switch, Data Link Connector, Driver Door Area Unit |
| AIR BAG 1 | 15A | SRS Control Module |
| BRAKE SWITCH |
7.5A | IBU, Stop Lamp Switch |
| MODULE 9 | 15A | Audio, A/V & Navigation Head Unit, Instrument Cluster, Front A/C Control Module, Head-Up Display, Rear Occupant Alert (ROA) Sensor, Driver IMS Control Module, Power Tail Gate Unit, Driver Door Area Unit, Rear A/C Control Module,Driver/Passenger Power Outside Mirror |
| MODULE 10 | 10A | Blind-Spot Collision Warning Unit LH/RH, Front Wireless Charger, VESS UNIT |
| MODULE 7 | 10A | Rear Corner Radar LH/RH |
| BATTERY MANAGEMENT |
7.5A | BMS Control Module |
| AIR BAG IND. | 10A | Instrument Cluster, Overhead Console Assembly |
| IBU 1 | 7.5A | IBU |
| MODULE 2 | 7.5A | AC Inverter Outlet, AC Inverter Module, Rear Seat Heater LH/RH, Front Seat Warmer Control Module, Front Air Ventilation Control Module |
| MODULE 8 | 7.5A | Driver/Passenger Smart Key Outside Handle, Hazard Switch, Driver/Passenger Power Outside Mirror, Data Link Connector, Rain Sensor, UIP Sensor Mood Lamp Unit, Mood Lamp, Mood Lamp #1/#2 |
| S/HEATER FRT | 20A | Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| AIR BAG 2 | 15A | SRS Control Module |
| E-SHIFTER 1 | 10A | Electronic Shift Dial |
| E-SHIFTER 2 | 7.5A | Electronic Shift Dial |
| MODULE 5 | 7.5A | Crash Pad Switch,Upper Console Switch, Surround View Monitor ECU, Steering Angle Sensor, IBU, ADAS Parking ECU, Front View Camera, AWD ECM, VESS UNIT |
| IBU 2 | 15A | IBU |
| SUNROOF 2 | 20A | Panorama Sunroof |
| MODULE 1 | 7.5A | IBU |
| P/WDW RH | 25A | Driver/Passenger Safety Power Window Module, Rear Safety Power Window RH, Rear Power Window Switch RH, Passenger Power Window Switch |
| RR S/HEATER LH |
25A | Rear Seat Heater LH |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| MDPS | 10A | MDPS Unit |
| A/CON | 7.5A | E/R Junction Block (RLY. 4, RLY. 6, RLY. 9), Front A/C Control Module, Electronic A/C Compressor HEV) |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tail Gate Relay, Dead Lock Relay |
| REAR A/CON | 10A | Rear A/C Control Module, Rear Blower Motor, Front A/C Control Module |
| SUNROOF 1 | 20A | Panoramic Sunroof |
| P/WDW LH | 25A | Driver/Passenger Safety Power Window Module, Rear Safety Power Window LH, Rear Power Window Switch LH, Passenger Power Window Switch |
| MODULE 3 | 7.5A | IBU, PCB Block (Battery C/Fan Relay) |
| MODULE 6 | 7.5A | Audio, A/V & Navigation Head Unit, A/V & Navigation Keyboard, Front A/C Control Module, AMP, Front Wireless Charger, E-Call Unit, Electro Chromic Mirror, Rear Seat Haeter LH/RH, Driver IMS Control Module, Overhead Console Assembly, Front Seat Warmer Control Module, Front Air Ventilation Control Module |
| WASHER | 15A | Multifunction Switch |
| RR S/HEATER RH |
25A | Rear Seat Heater RH |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | AMP |
| ACC | 7.5A | E-Call Unit, Surround View Monitor ECU, ADAS Parking ECU, A/V & Navigation Keyboard, Audio, IBU, A/V & Navigation Head Unit, Front USB Charger, Rear USB Charger LH/RH, AMP |
| P/SEAT PASS | 30A | Passenger Seat Manual Switch, Walk In Relay |
| P/SEAT DRV | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
Passenger compartment fuse box (Plug-in hybrid vehicle):
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | Data Link Connector, Stop Lamp Switch, Driver Door Area Unit IAU (Identity Authentication Unit) |
| AIR BAG 1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| IG3 2 | 10A | Instrument Cluster, Front A/C Control Module, CDM Unit,Electronic A/C Compressor, Audio, A/V & Navigation Head Unit |
| BRAKE SWITCH |
7.5A | IBU, Stop Lamp Switch |
| IG3 4 | 15A | Battery System Assembly, OBC Unit |
| OBC | 10A | OBC Unit |
| MODULE 9 | 15A | Front A/C Control Module, Driver Door Area Unit, Power Tailgate Unit,Rear Occupant Alert (ROA) Sensor, Audio, A/V & Navigation Head Unit,Driver IMS Control Module, Head-Up Display, Instrument Cluster,Driver/Passenger Power Outside Mirror,Electronic Refrigerant Reduced Pressure Valve |
| MODULE 10 | 10A | Rear Corner Radar LH/RH, Front Wireless Charger, VESS Unit |
| A/BAG IND | 10A | Overhead Console Assembly, Instrument Cluster |
| FUEL LID | 10A | Crash Pad Switch, ICM Relay Box (Fuel Lid Lock/Unlock Relay) |
| IBU1 | 7.5A | IBU |
| MODULE 2 | 7.5A | AC Inverter Outlet, AC Inverter Module, Front Air Ventilation Control Module,Front Seat Warmer Control Module, Rear Seat Heater LH/RH |
| MODULE 8 | 7.5A | Hazard Switch, Mood Lamp, Rain Sensor, Mood Lamp Unit,Mood Lamp #1/#2, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror, Data Link Connector |
| S/HEATERDRV/ PASS |
20A | Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| AIR BAG 2 | 15A | SRS Control Module |
| E-SHIFTER1 | 10A | Electronic Shift Dial |
| E-SHIFTER2 | 7.5A | Electronic Shift Dial |
| MODULE 5 | 7.5A | Lane Departure Warning Unit, Crash Pad Switch, IBU,AWD ECU, VESS Unit, Upper Console Switch,Parking Collision Avoidance Assist Unit, Surround View Monitor Unit |
| IG3 3 | 10A | HPCU, SUC |
| IBU 2 | 15A | IBU, BLE (Bluetooth Low Energy) Unit, IAU (Identity Authentication Unit),Driver/Passenger Smart Key Outside Handle |
| SUNROOF 2 | 20A | Panorama Sunroof |
| MODULE 1 | 7.5A | IBU, IAU (Identity Authentication Unit) |
| IG3 1 | 20A | ICM Relay Box (IG3 Relay) |
| P/WINDOW RH | 25A | Passenger Safety Power Window Module,Rear Power Window Switch RH, Rear Safety Power Window RH |
| IG3 5 | 10A | Electronic Water Pump (Battery), Electronic Water Pump (HEV) |
| RR SEAT(LH) | 25A | Rear Seat Heater LH |
| CLUSTER | 7.5A | Instrument Cluster, Head Up Display |
| MDPS | 10A | MDPS Unit, MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| A/C | 7.5A | E/R Junction Block (Blower Relay, PTC Heater Relay#1/#2),Front A/C Control Module |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tailgate Relay, Driver Door Unlock Relay |
| SUNROOF1 | 20A | Panorama Sunroof |
| P/WINDOW LH | 25A | Driver Safety Power Window Module, Rear Power Window Switch LH,Rear Safety Power Window LH |
| MODULE 3 | 7.5A | IBU |
| MODULE 6 | 7.5A | Audio, A/V & Navigation Head Unit, A/V & Navigation Keyboard,Front Wireless Charger, Electro Chromic Mirror,Overhead Console Assembly, Rear Seat Heater LH/RH,Driver IMS Control Module, Front Seat Warmer Control Module,Front Air Ventilation Control Module |
| WASHER | 15A | Multifunction Switch |
| CHARGERLOCK | 10A | CDM Unit, ICM Relay Box (Charger Connector Lock/Unlock Relay) |
| RR SEAT(RH) | 25A | Rear Seat Heater RH |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | AMP |
| ACC | 7.5A | IBU, Front USB Charger, A/V & Navigation Keyboard,Parking Collision Avoidance Assist Unit, Surround View Monitor Unit,Rear USB Charger LH/RH, IAU (Identity Authentication Unit), Audio, A/V & Navigation Head Unit, AMP |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
Engine compartment fuse box (Hybrid vehicle):
| Fuse/Relay Name | Rating | Functions |
| C/FAN 1 | 80A | Cooling Fan Controller |
| B+4 | 50A | ICU Junction Block (Fuse – F16/F17/F26/F27/F36/F46) |
| B+2 | 50A | ICU Junction Block (IPS 8 SPOC+/IPS 11/IPS 13/IPS 14/IPS 15) |
| B+3 | 50A | ICU Junction Block (Fuse – F19/F29/F38/F39/F48/F49) |
| IEB 1 | 40A | IEB Unit |
| BLOWER | 40A | RLY. 9 (Blower Relay) |
| IG2 | 40A | PCB Block (IG2 Relay) |
| ABS | 30A | Not used |
| MDPS | 100A | MDPS Unit |
| IEB 2 | 60A | IEB Unit |
| B+6 | 60A | PCB Block (B+) |
| CVVD | 50A | CVVD Actuator |
| RR HTD1 | 40A | RLY. 1 (Rear Heated Relay) |
| INVERTER | 40A | AC Inverter Module |
| E-SHIFTER 1 | 40A | SCU |
| HTD MIRR | 10A | RLY. 1 (Rear Heated Relay), Driver/Passenger Outside Mirror, Front A/C Control Module |
| B+5 | 50A | ICU Junction Block (F4/F14/F23/F24/F33/F34/F44) |
| IEB 3 | 60A | IEB Unit |
| B+1 | 50A | ICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS 4/IPS 5/IPS 6/IPS 7/ Long Term Load Latch Relay, Short Term Load Latch elay) |
| PTC HEATER 1 |
50A | RLY. 4 (PTC Heater Relay #1) |
| PTC HEATER 2 |
50A | RLY. 6 (PTC Heater Relay #2) |
| POWER TAIL GATE |
30A | Power Tail Gate Unit |
| FUEL PUMP | 20A | RLY. 5 (Fuel Pump Relay) |
| AMS | 10A | Battery Sensor |
| EWP 1 | 10A | Electronic Water Pump |
| AWD | 20A | AWD ECM |
| E-SHIFTER 2 | 10A | SCU |
| BATTERY C/ FAN |
15A | PCB Block (Battery C/FAN Relay) |
| OPCU | 20A | OPU |
| HPCU 1 | 10A | HPCU |
| BATTERY MANAGEMENT |
10A | BMS Control Module |
| TRAILER 1 | 30A | Trailer Module |
| IG1 | 40A | IG1 Relay |
| TCU2 | 10A | TCM |
| SENSOR3 | 20A | ECM, Oxygen Sensor (Up/Down) |
| SENSOR1 | 10A | ELCM |
| EWP2 | 10A | Electronic Water Pump |
| ECU3 | 10A | ECM, CVVD Actuator |
| SENSOR6 | 10A | OPU |
| POWER OUTLET1 |
20A | Luggage Power Outlet |
| WIPER2 | 10A | IBU, Front Wiper Motor |
| HORN | 15A | Horn Relay |
| IEB4 | 10A | IEB Unit |
| SENSOR2 | 10A | Purge Control Solenoid Valve, Oil Control Valve #1/#2(Intake/Exhaust), Oil Pump Solenoid Valve, Cooling Fan Motor, RCV Control Solenoid Valve |
| SENSOR4 | 15A | Active Purge Pump |
| SENSOR5 | 10A | E/R Junction Block (RLY. 5) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| ACC | 20A | ICU Junction Block (Fuse – F37/F47) |
| POWER OUTLET2 |
20A | Front Power Outlet |
| WIPER1 | 30A | Front Wiper Motor, Front Wiper (Low) Relay |
| E-SHIFTER3 | 10A | SCU |
| FCA | 10A | Front Radar Unit |
| HPCU 2 | 10A | HPCU |
| ECU1 | 15A | ECM |
| ECU4 | 20A | ECM |
| TCU1 | 15A | TCM |
| RR HTD2 | 10A | E/R Junction Block (RLY. 1) |
Engine compartment fuse box (Plug-in hybrid vehicle):
| Fuse/Relay Name | Rating | Functions |
| IG1 | 40A | IG1 Relay |
| TCU2 | 10A | TCM |
| SENSOR3 | 20A | ECM, Oxygen Sensor (Up/Down) |
| SENSOR1 | 10A | ELCM |
| EWP2 | 10A | Electronic Water Pump |
| ECU3 | 10A | ECM, CVVD Actuator |
| SENSOR6 | 10A | OPU |
| POWER OUTLET1 |
20A | Luggage Power Outlet |
| WIPER FRT2 | 10A | IBU |
| HORN | 15A | Horn Relay |
| IEB4 | 10A | IEB Unit |
| SENSOR2 | 10A | Cooling Fan Motor, Purge Control Solenoid Valve,Oil Control Valve #1/#2, Oil Pump Solenoid Valve,RCV Control Solenoid Valve |
| SENSOR4 | 15A | Active Purge Pump |
| SENSOR5 | 10A | E/R Junction Block (Fuel Pump Relay) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| ACC | 20A | ICU Junction Block (Fuse - ACC) |
| POWER OUTLET2 |
20A | Front Power Outlet |
| WIPER1 | 30A | Front Wiper Motor, Front Wiper (Low) Relay |
| E-SHIFTER3 | 10A | SCU |
| FCA | 10A | Front Radar Unit |
| HPCU 2 | 10A | HPCU |
| ECU1 | 15A | ECM |
| ECU4 | 20A | ECM |
| TCU1 | 15A | TCM |
| REARHEATED2 | 10A | E/R Junction Block (Rear Heated Relay) |
