Hyundai Genesis Sedan 2010 Fuse Box Info
Passenger compartment fuse box location:

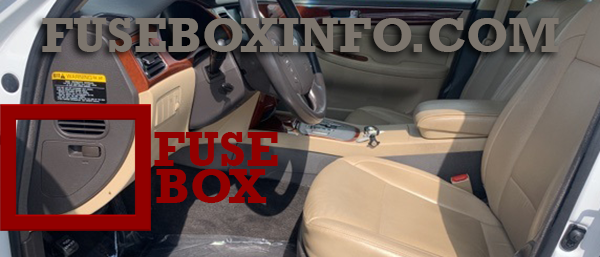

The fuse box is located on the left hand side of the instrument panel facing the driver’s side door.

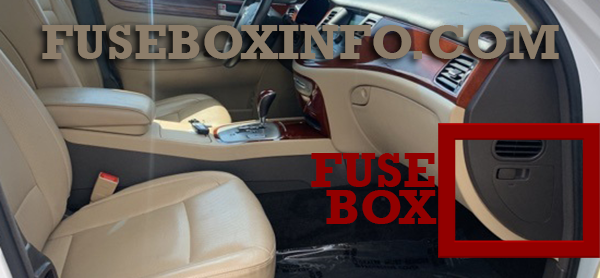

The fuse box is located on the right hand side of the instrument panel facing the passenger’s side door.

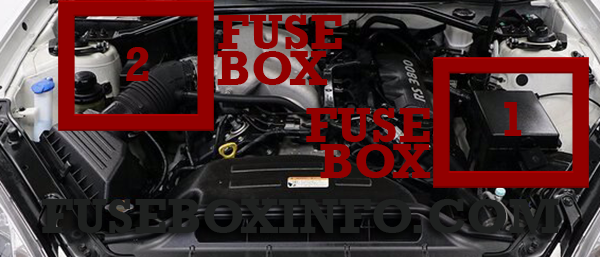

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
| Fuse/Relay Name | Rating | Functions |
| P/WDW (LH) | 30A | Driver Power Window Module, Rear Door Module LH |
| P/WDW (RH) | 30A | Passenger Power Window Module, Rear Door Module RH |
| CHASSIS UNIT | 10A | Steering Angle Sensor, Key Lock Module, Tire Pressure Monitoring Module |
| CRUISE SWITCH | 10A | Multifunction Switch, Crash Pad Switch, A/C Control Module |
| START | 10A | Transaxle Range Switch, ECM |
| ESCL SW | 10A | FOB Holder, Start Stop Button Switch |
| CLUSTER | 10A | Instrument Cluster |
| A/CON 4 | 10A | A/C Control Module |
| KEY ILLUMINATION | 10A | Start Stop Button Switch, Door Warning Switch, FOB Holder, Key Solenoid |
| IG KEY SUPPLY 1 | 30A | E/R Junction Box Fuse (INHIBITOR SW 10A, ECU-2 10A, EHPS 10A, CRUISE 10A, TCU 15A, ESP 10A, STOP LP 10, AFLS 10A) |
| DR LOCK (LH) | 10A | Driver Door Module |
| A/BAG IND | 10A | Instrument Cluster |
| AFLS | 10A | Auto Head Lamp Leveling Device Sensor, Adaptive Front Lighting Module, Head Lamp LH, Head Lamp RH |
| ESCL 2 | 10A | PDM |
| SECURITY LP | 10A | Data Link Connector, Auto Light Sensor & Security Indicator |
| BODY UNIT 3 | 10A | FAM, IPM, Tilt & Telescopic Module, PDM, Driver Door Module, Passenger Door Module, IMS Control Module, Multifunction Switch, Electronic Parking Brake Module, Forward & Rear Parking Assist Control Module |
| BODY UNIT 2 | 10A | FAM, Multifunction Switch, Tilt & Telescopic Module, Instrument Cluster, Driver Door Module, Passenger Door Module, IMS Control Module, Rear Curtain Module |
| P/HANDLE | 15A | Tilt & Telescopic Module |
| A/BAG | 15A | SRS Control Module, PODS Module, Telltale Lamp |
| AUDIO 2 | 15A | Audio, Front Monitor, AV Head Module, Media Module (With AV) |
| S/HTD ECU (FR-LH) | 15A | Driver CCS Control Module, Driver Seat Warmer Module (W/O CCS) |
| F/LID OPEN | 10A | Fuel Filler Door Switch |
| AUDIO 3 | 10A | AV Head Module, Audio, Active Headrest Sensor Module, Passenger Air Bag Indicator |
| A/CON 3 | 10A | RF Receiver, A/C Control Module |
| P/CONN | 30A | I/P Junction Box Fuse LH (BODY UNIT 2 10, A/CON 3 10A, AUDIO 2 15A) |
Passenger compartment fuse box (Passenger’s side):
| Fuse/Relay Name | Rating | Functions |
| CURTAIN (RR) | 10A | Rear Curtain Module |
| MIRROR | 10A | Driver Door Module, Passenger Door Module |
| IG KEY SUPPLY 2 | 30A | E/R Junction Box Fuse (AQS 10A, WASHER 15A) |
| S/ROOF | 20A | Overhead Console Lamp |
| CONSOLE SW | 10A | Console Switch LH/RH, Piezo Buzzer |
| A/CON 1 | 10A | Active Incar Sensor, A/C Control Module |
| P/SEAT (FR-RH) | 20A | Passenger Power Seat Relay Box |
| TPMS | 10A | Tire Pressure Monitoring Module, Electro Chromic Mirror |
| BODY UNIT 1 | 10A | Instrument Cluster, Driver CCS Control Module, PDM, IPM, Rheostat |
| ECM | 10A | Electro Chromic Mirror, Overhead Console Lamp, Rain Sensor, Rear Curtain Module, Camera Module |
| S/HTD ECU (FR-RH) | 15A | Passenger Seat Warmer Module |
| DR LOCK (RH) | 15A | Passenger Door Module |
| P/OUTLET (FR) | 10A | ACC Socket Relay |
| A/CON 2 | 10A | A/C Control Module, IPM, PDM, Key Lock Module |
| ESCL 1 | 25A | PDM |
| AUDIO 1 | 10A | Audio, Camera Module, Front Monitor, Media Module, AV Head Module |
Engine compartment fuse box (Main fuse box):
| Fuse/Relay Name | Rating | Functions |
| WIPER | 30A | Electronic Control Wiper Module |
| FAM POWER-1 | 40A | FAM |
| FAM POWER-2 | 40A | FAM |
| START | 30A | Start Relay |
| ECU | 30A | Engine Control Relay |
| BLOWER MOTOR | 40A | Blower Relay |
| IGN SW-1 | 40A | Ignition Switch (IG1, ACC) |
| HTD GLASS (RR) | 40A | Heated Glass (RR) Relay |
| IGN SW-2 | 40A | Ignition Switch (IG2, START) |
| A/CON | 10A | A/C Control Module |
| EPB-1 | 15A | Electronic Parking Brake Module |
| EPB-2 | 15A | Electronic Parking Brake Module |
| HORN | 15A | Horn Relay |
| IPM | 10A | IPM |
| AQS | 10A | AQS Sensor, Electronic Control Wiper Module, Blower Relay, Head Lamp (Low) Relay |
| HTD GLASS (FR) | 15A | Heated Glass (FR) Relay |
| WASHER | 15A | Washer Relay |
| MIRROR HTD | 10A | A/C Control Module, Power Outside Mirror Motor LH/RH |
| TCU | 15A | TCM |
| AFLS | 10A | Head Lamp LH/RH |
| EHPS | 10A | EHPS Module |
| ESC | 10A | ESC Control Module, Multipurpose Check Connector |
| ECU-2 | 10A | ECM |
| IGN COIL-1 | 15A | Ignition Coil |
| IGN COIL-2 | 15A | Ignition Coil, Condenser |
| ENG SNSR-1 | 10A | ECM, Mass Air Flow Sensor (GSL 3.8L), Oxygen Sensor, Camshaft Position Sensor (GSL 4.6L) |
| ENG SNSR-2 | 10A | Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve, Oil Control Valve, ECM, Cooling Fan Relay, Immobilizer Module, Canister Close Valve |
| ENG SNSR-3 | 15A | ECM (GSL 3.8L), Injector, Fuel Pump Relay |
| H/LP (LO-RH) | 15A | Head Lamp RH |
| H/LP (LO-LH) | 15A | Head Lamp LH, ECM |
| INHIBITOR SW | 10A | Transaxle Range Switch (GSL 3.8L) |
| CRUISE | 10A | Smart Cruise Control Module |
| STOP LP | 10A | Stop Lamp Switch, Stop Lamp Relay, Generator |
| ECU-1 | 10A | ECM, TCM |
| ROOM LP | 10A | Room Lamp Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
Engine compartment fuse box (Sub fuse box):
| Fuse/Relay Name | Rating | Functions |
| ALT | 200A | Generator |
| I/P LH PWR | 60A | I/P Junction Box LH |
| I/P RH PWR | 60A | I/P Junction Box RH |
| COOLING | 60A | Cooling Fan Relay |
| EHPS | 80A | EHPS Module |
| AMP-1 | 40A | AV JBL Amp |
| AMP-2 | 30A | Amp |
| ESCL (ACC) | 30A | ESCL (ACC) Relay |
| ABS-1 | 30A | ESC Control Module, Multipurpose Check Connector |
| ABS-2 | 30A | ESC Control Module, Multipurpose Check Connector |
| ESCL (IGN1) | 30A | ESCL (IGN1) Relay |
| ESCL (IGN2) | 30A | ESCL (IGN2) Relay |
| P/SEAT FL | 30A | Driver Power Seat Relay Box, IMS Control Module, Front Lumbar Support Switch |
| H/LP WASHER | 20A | - |
| B/UP LP (GSL 4.6L) | 10A | Back-up Lamp Relay |
| ACC SOCKET | 25A | ACC Socket Relay |
| T/LID | 10A | Trunk Lid Relay |
| DRL | 15A | DRL Relay |
| STOP LP | 10A | Stop Lamp Relay, Stop Lamp Switch, IPM |
| B/UP LP (GSL 3.8L) | 10A | Rear Combination Lamp LH/RH (IN), Electro Chromic Mirror, Camera Module, Rear Curtain Module |
