Honda Prelude 2026 Fuse Box Info

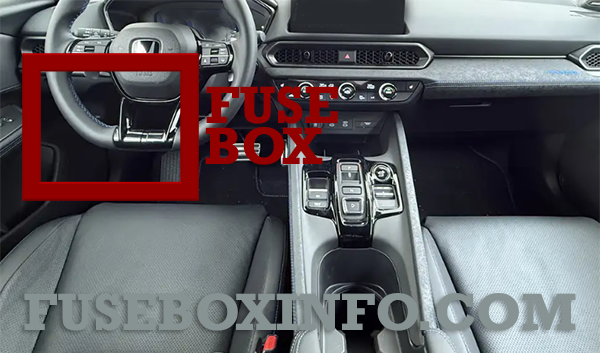

Passenger compartment fuse box location:
The fuse box is located under the dashboard on the driver’s side.

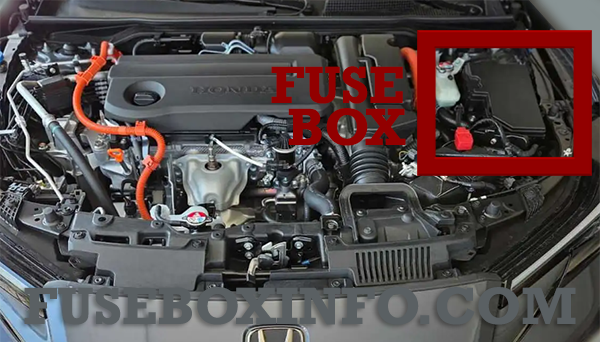

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | P/W DR |
| 2 | 20A | P/W AS |
| 3 | - | - |
| 4 | - | - |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | 10A | T/G MTR |
| 8 | 10A | USB CHG |
| 9 | 20A | FR ACC SOCKET |
| 10 | 20A | DOOR LOCK |
| 11 | 10A | METER |
| 12 | 10A | OPTION3 (ST CUT) |
| 13 | 10A | OPTION2 |
| 14 | 10A | OPTION6 (VB SOL) |
| 15 | 10A | DR DOOR UNLOCK |
| 16 | 10A | SBW |
| 17 | - | - |
| 18 | (20A) | HAC OP |
| 19 | - | - |
| 20 | 10A | RR FOG* |
| 21 | - | - |
| 22 | 10A | SMART |
| 23 | 10A | DR DOOR LOCK |
| 24 | 20A | OUT HANDLE |
| 25 | 10A | IMG |
| 26 | 10A | SRS |
| 27 | 20A | ACG / D/V |
| 28 | 10A | OPTION5 |
| 29 | 15A | FUEL PUMP |
| 30 | 10A | L SIDE DOOR UNLOCK |
| 31 | 10A | R SIDE DOOR UNLOCK |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | 10A | R SIDE DOOR LOCK |
| 40 | - | - |
| 41 | - | - |
| 42 | 10A | ESB |
| 43 | 10A | A/C |
| 44 | 10A | DRL |
| 45 | 10A | ACC |
| 46 | 10A | ACC KEY LOCK |
| 47 | 10A | L SIDE DOOR LOCK |
| 48 | 20A | H/SEAT |
| 49 | - | - |
| 50 | - | - |
| 51 | - | - |
| 52 | 15A | IGA2 |
| 53 | - | - |
| 54 | 10A | OPTION1 |
| 55 | - | - |
| 56 | 30A | ADS |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 175A | BATTERY |
| 2 |
40A 40A 60A 40A 40A 30A 60A |
- - F/BOX OPTION - - AUDIO AMP F/BOX MAIN |
| 3 |
30A 30A 70A 30A (40A) 40A (40A) |
- - - RR DEFROSTER A/C PTC1 HTR MTR A/C PTC2 |
| 4 |
40A 40A 40A 30A 30A 30A 30A |
ESB ABS/VSA MTR RFC P-ACT MTR IG MAIN - R/M2 |
| 5 |
30A 30A 70A 30A 40A 40A 40A |
OPTION6 WIPER EPS R/M1 ABS/VSA FSR ENG EWP F/BOX MAIN2 |
| 6 | - | - |
| 7 | 30A | IG MAIN2 |
| 8 | - | - |
| 9 | - | - |
| 10 | (7.5A) | AUDIO SUB |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | 10A | BATT IR |
| 15 | 10A | BATT SNSR |
| 16 | - | - |
| 17 | 15A | WASHER |
| 18 | 15A | HORN |
| 19 | 15A | BACK UP |
| 20 | 15A | AUDIO |
| 21 | 15A | IGP |
| 22 | 10A | BACKUP FI-ECU |
| 23 | 15A | DBW |
| 24 | 7.5A | RFC RLY CL+ |
| 25 | 7.5A | PCU EWP |
| 26 | 7.5A | P-ACT ECU |
| 27 | 15A | LCM L |
| 28 | 15A | INJ |
| 29 | 10A | STOP |
| 30 | 15A | LCM R |
| 31 | 15A | IG COIL |
| 32 | 20A | EVTC |
| 33 | 15A | HAZARD |
| 34 | - | - |
| 35 | - | - |
| 36 | 7.5A | IG1 MON2 |
| 37 | - | - |
| 38 | 10A | IGB |
| 39 | 15A | IGA |
| 40 | - | - |
| 41 | 10A | IGPS [LAF] |
| 42 | - | - |
| 43 | - | - |
| 44 | - | - |
