Honda Accord 2023 Fuse Box Info
Passenger compartment fuse box location:
The fuse box A (Main Fuse Box) is under the dashboard on the driver’s side. The fuse box B (Sub Fuse Box) is under the dashboard on the driver’s side.

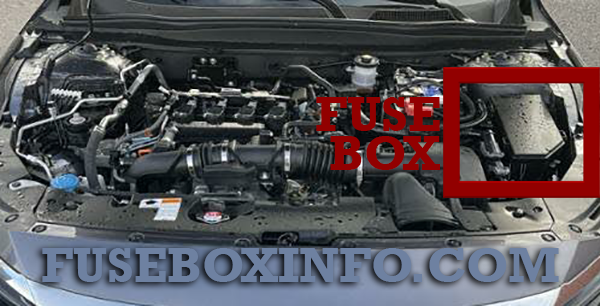

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | P/W DR |
| 2 | 20A | P/W AS |
| 3 | 20A | P/W RR R |
| 4 | 20A | P/W RR L |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | 10A | TRUNK LOCK ACT |
| 8 | - | - |
| 9 | 20A | FR ACC SOCKET |
| 10 | 20A | DOOR LOCK |
| 11 | 10A | METER |
| 12 | (10A) | STARTER CUT |
| 13 | 10A | OPTION2 |
| 14 | 10A | MISS SOL |
| 15 | (10A) | DR DOOR UNLOCK |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | 10A | CGW |
| 21 | - | - |
| 22 | 10A | SMART |
| 23 | (10A) | DR DOOR LOCK |
| 24 | - | - |
| 25 | - | - |
| 26 | 10A | SRS |
| 27 | 10A | ACG |
| 28 | 10A | VSA/ABS |
| 29 | 20A | FUEL PUMP |
| 30 | 10A | L SIDE DOOR UNLOCK |
| 31 | 10A | R SIDE DOOR UNLOCK |
| 32 | (20A) | SUN ROOF* |
| 33 | (7.5A) | - |
| 34 | 10A | USB CHG |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | 10A | R SIDE DOOR LOCK |
| 40 | (20A) | DR P/SEAT SLIDE* |
| 41 | (20A) | DR P/SEAT REC* |
| 42 | (10A) | - |
| 43 | 10A | A/C |
| 44 | 10A | DRL |
| 45 | 10A | ACC |
| 46 | 10A | ACC KEY LOCK |
| 47 | 10A | L SIDE DOOR LOCK |
| 48 | (20A) | FR H/SEAT* |
| 49 | (20A) | - |
| 50 | (10A) | P/LUMBAR DR* |
| 51 | - | - |
| 52 | - | - |
| 53 | (20A) | - |
| 54 | 10A | OPTION1 |
| 55 | - | - |
| 56 | - | - |
* Not available on all models
Passenger compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| A | - | - |
| B | (10A) | EOP |
| C | (15A) | AUDIO VST |
| D | (10A) | ACC VST |
| E | - | - |
| F | - | - |
| G | (10A) | METER |
| H | (10A) | OPTION |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | BATTERY |
| 2 | (30A) | DC/DC2 |
| 40A | - | |
| 60A | F/BOX OPTION | |
| 40A | - | |
| 60A | F/BOX OPTION2 | |
| 60A | - | |
| 60A | F/BOX MAIN | |
| 3 | (30A) | - |
| 30A | ST MAGNETIC SW | |
| 40A | - | |
| 30A | - | |
| 50A | - | |
| 40A | HTR MTR | |
| 40A | RR DEFROSTER | |
| 4 | 40A | ABS/VSA FSR |
| 40A | ABS/VSA MTR | |
| 40A | - | |
| 40A | EBB | |
| 30A | IG MAIN | |
| 40A | - | |
| 30A | R/M2 | |
| 5 | (30A) | DC/DC |
| 30A | WIPER | |
| 70A | EPS | |
| 30A | R/M1 | |
| 40A | - | |
| 30A | MAIN FAN | |
| 60A | F/BOX MAIN2 | |
| 6 | 30A | SUB FAN |
| 7 | 30A | IG MAIN2 |
| 8 | - | - |
| 9 | 15A | BACK UP |
| 10 | 15A | WASHER |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | (10A) | SHUTTER GRILLE |
| 16 | - | - |
| 17 | 10A | MG CLUTCH |
| 18 | 10A | HORN |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | 15A | DBW |
| 23 | 15A | HAZARD |
| 24 | 10A | BACKUP FI-ECU |
| 25 | 15A | IGP |
| 26 | 15A | TCU |
| 27 | 20A | LCM L |
| 28 | 20A | INJ |
| 29 | 10A | STOP |
| 30 | 20A | LCM R |
| 31 | 15A | IG COIL |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | 10A | IGPS [LAF] |
| 37 | (30A) | BACKUP2 |
| 38 | - | - |
| 39 | 10A | VBACT |
| 40 | 7.5A | IGPS FAN |
| 41 | - | - |
| 42 | 7.5A | MON2 |
