Honda Crosstour 2012 Fuse Box Info
Passenger compartment fuse box location:
The driver’s side interior fuse box is under the dashboard on the driver’s side. The passenger’s side interior fuse box is on the lower passenger’s side panel.

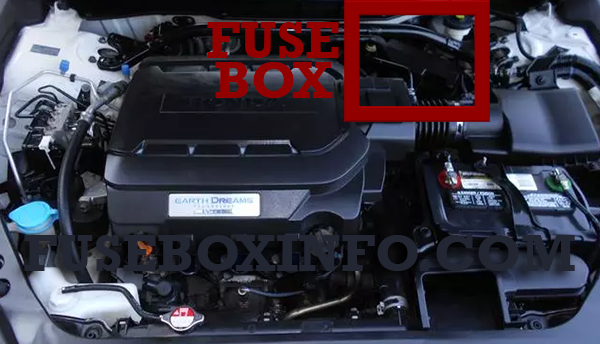

Engine compartment fuse box location:
The under-hood fuse box is located near the + terminal on the 12 volt battery.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not Used |
| 2 | 7.5A | Seat Memory* |
| 3 | 15A | Washer |
| 4 | 10A | Wiper |
| 5 | 7.5A | Meter |
| 6 | 7.5A | ABS/VSA |
| 7 | 15A | ACG |
| 8 | 7.5A | STS |
| 9 | 20A | Fuel Pump |
| 10 | 10A | VB SOL2 |
| 11 | 10A | SRS |
| 12 | 7.5A | OPDS (Occupant Position Detection System) |
| 13 | - | Not Used |
| 14 | 10A | ACM |
| 15 | 7.5A | Daytime Running Lights |
| 16 | 7.5A | A/C |
| 17 | 7.5A | Accessory, Key, Lock |
| 18 | 7.5A | Accessory |
| 19 | 20A | Driver’s Power Seat Sliding |
| 20 | 20A | Moonroof |
| 21 | 20A | Driver’s Power Seat Reclining |
| 22 | 20A | Rear Left Power Window |
| 23 | 15A | Front Accessory Power Socket |
| 24 | 20A | Driver’s Power Window |
| 25 | 15A | Driver’s Side Door Lock |
| 26 | 10A | Left Front Fog Light |
| 27 | 10A | Left Side Small Lights (Exterior) |
| 28 | 10A | Left Headlight High Beam |
| 29 | 7.5A | TPMS |
| 30 | 15A | Left Headlight Low Beam |
| 31 | - | Not Used |
| A | - | Not Used |
*If equipped
Passenger compartment fuse box (Passenger’s Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Right Headlight High Beam |
| 2 | 10A | Right Side Small Lights (Exterior) |
| 3 | 10A | Right Front Fog Light |
| 4 | 15A | Right Headlight Low Beam |
| 5 | - | Not Used |
| 6 | 7.5A | Interior Lights |
| 7 | - | Not Used |
| 8 | 20A | Front Passenger’s Power Seat Reclining |
| 9 | 20A | Front Passenger’s Power Seat Sliding |
| 10 | 10A | Right Side Door Lock |
| 11 | 20A | Rear Right Power Window |
| 12 | 15A | Accessory Power Socket (Console) |
| 13 | 20A | Front Passenger’s Power Window |
| 14 | - | Not Used |
| 15 | 20A | Premium AMP* |
| 16 | 15A | Accessory Power Socket (Cargo) |
| 17 | - | Not Used |
| 18 | 10A | Lumbar Support |
| 19 | 15A | Seat Heater* |
| 20 | - | Not Used |
| 21 | - | Not Used |
| 22 | - | Not Used |
* If equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1-1 | 120A | Battery |
| 1-2 | 40A | Passenger’s Side Fuse Box |
| 2-1 | - | Not Used |
| 2-2 | 40A | ABS/VSA |
| 2-3 | 30A | ABS/VSA Motor |
| 2-4 | 40A | Passenger’s Side Fuse Box |
| 2-5 | - | Not Used |
| 2-6 | - | Not Used |
| 3-1 | 30A | Sub Fan Motor |
| 3-2 | 30A | Wiper Motor |
| 3-3 | 30A | Main Fan Motor |
| 3-4 | 30A | Driver’s Side Light Main |
| 3-5 | 60A | Driver’s Side Fuse Box |
| 3-6 | 30A | Passenger’s Side Light Main |
| 3-7 | - | Not Used |
| 3-8 | 50A | IG Main |
| 4 | 7.5A | Fan Relay |
| 5 | 40A | Rear Defroster |
| 6 | - | Not Used |
| 7 | 15A | Hazard |
| 8 | 20A | Horn, Stop |
| 9 | - | Not Used |
| 10 | (15A) | Trailer |
| 11 | 15A | IG Coil |
| 12 | 15A | FI Sub |
| 13 | - | Not Used |
| 14 | - | Not Used |
| 15 | 10A | Back Up |
| 16 | 7.5A | Interior Lights |
| 17 | 15A | FI Main |
| 18 | 15A | DBW |
| 19 | 7.5A | Back Up, FI ECU |
| 20 | 40A | Heater Motor |
| 21 | 7.5A | MG Clutch |
