Honda CR-Z 2011 Fuse Box

Honda Hits: 416

Honda CR-Z 2011 Fuse Box Info

Passenger compartment fuse box location:

The interior fuse box is located under the driver side dashboard.

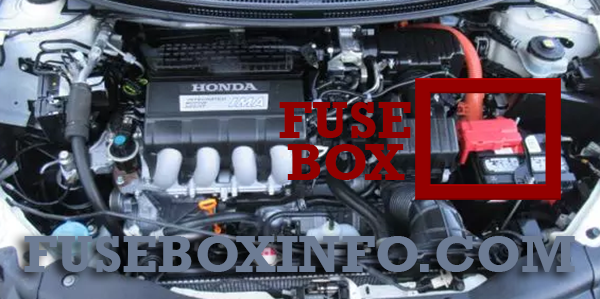

Engine compartment fuse box location:

The under-hood fuse box is located near the + terminal on the 12 volt battery.

Fuse Box Diagram | Layout

Passenger compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	10A	Back Up
2	7.5A	TPMS*
3	20A	Driver's Power Window
4	-	Not Used
5	10A	Back Up Light
6	10A	SRS
7	10A	Transmission*
8	7.5A	SRS
9	20A	Fog Light*
10	7.5A	A/C
11	7.5A	ABS/VSA
12	10A	IMA
13	20A	Accessory Power Socket
14	7.5A	Radio
15	7.5A	Daytime Running Light
16	10A	Rear Wiper
17	20A	Passenger’s Power Window
18	-	-
19	-	-
20	15A	Fuel Pump
21	15A	Washer
22	7.5A	Meter
23	10A	Hazard
24	10A	Stop/Horn
25	20A	Audio AMP*
26	10A	LAF
27	30A	Door Lock Main
28	20A	Headlight Main
29	10A	Small Light
30	30A	Main Fan Motor
31	7.5A	IGPS
32	10A 15A	Right Headlight Low* Right Headlight Low (HID)*
33	20A	Ignition Coil
34	10A 10A	Left Headlight Low* Left Headlight High*
35	7.5A	Door Lock
36	10A	Door Lock
37	30A	ABS FSR/VSA FSR
38	-	-
39	15A	IGP
40	-	-
41	-	-
42	7.5A	IMA 1
43	7.5A	MG Clutch
44	7.5A	STS
45	20A	Door Lock
46	-	-
47	30A	Sub Fan Motor
48	10A 15A	Left Headlight High* Left Headlight Low (HID)*
49	7.5A	Door Lock Motor 2 (UNLOCK)
50	-	-
51	10A	Right Headlight High
52	15A	DBW
53	15A	IMA 2
54	-	-
55	10A	Heated Mirror*
56	30A	Front Wiper
57	30A	Blower Motor
58	30A	ABS/VSA MTR
59	40A* 30A*	Rear Defogger
60	50A	IG Main
61	-	-
62	-	-

*Not available on all models
