Ford Crown Victoria 2001 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

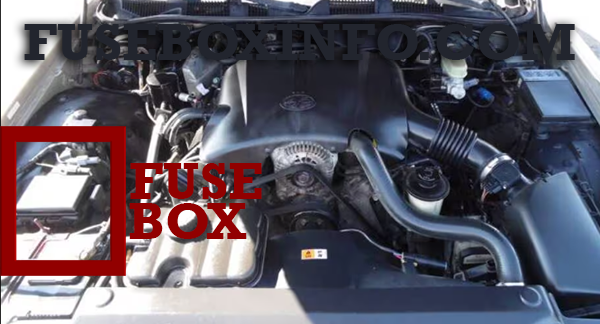

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not Used |
| 2 | - | Not Used |
| 3 | - | Not Used |
| 4 | 10A | Air Bags |
| 5 | - | Not Used |
| 6 | 15A | Instrument Cluster, Warning Lamps Module, Transmission Control Switch, Lighting Control Module (LCM) |
| 7 | - | Not Used |
| 8 | 25A | Power Train Control Module (PCM) Power Relay, Coil-on -Plugs, Radio Noise Capacitator, Passive Anti-theft System (PATS) |
| 9 | - | Not Used |
| 10 | 10A | Rear Window Defrost |
| 11 | - | Not Used |
| 12 | - | Not Used |
| 13 | 5A | Radio |
| 14 | 10A | Traction Control Switch, Anti-lock Brakes (ABS), Instrument Cluster |
| 15 | 15A | Speed Control Servo, Main Light Switch Illumination, Lighting Control Module (LCM), Clock, Police Power Relay |
| 16 | 15A | Reversing lamps, Turn Signals, Shift Lock, DRL Module, EVO Steering, Electronic Day/Night Mirror |
| 17 | 30A | Wiper Motor, Wiper Control Module |
| 18 | 30A | Heater Blower Motor |
| 19 | - | Not Used |
| 20 | - | Not Used |
| 21 | 15A | Multifunction Switch, Lighting Control Module (LCM), PATS Indicator, Parking Lamps, Instrument Panel Light |
| 22 | 15A | Speed Control Servo, Hazard Lights |
| 23 | 15A | Power Windows/Door Locks, PATS, Exterior Rear View Mirrors, EATC Module, Instrument Cluster, Clock, Lighting Control Module (LCM), Interior Lamps |
| 24 | 10A | Left Hand Low Beam |
| 25 | 20A | Power Point, Cigar Lighter, Emergency Flashers |
| 26 | 10A | Right Hand Low Beam |
| 27 | 20A | Lighting Control Module (LCM), Main Light Switch, Cornering Lamps, Fuel Tank Pressure Sensor |
| 28 | 20A | Power Windows |
| 29 | - | Not Used |
| 30 | - | Not Used |
| 31 | - | Not Used |
| 32 | 20A | ABS Values |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Electric Fuel Pump Relay |
| 2 | 30A | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25A | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30A | Police Power Relay |
| 5 | 15A | Horn Relay |
| 6 | 20A | DRL Module |
| 7 | 20A | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30A | Air Suspension System |
| 9 | 50A | Fuses 5 and 9 |
| 10 | 50A | Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 50A | Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30A | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50A | High Speed Cooling Fan Relay |
| 14 | 40A | Rear Window Defrost Relay, Fuse 17 |
| 15 | 40A | Anti-Lock Brake Module |
| 16 | 50A | Police Option Fuse Holder |
| 17 | 30A | Cooling Fan Relay |
| Relay 1 | - | Rear Defrost Relay |
| Relay 2 | - | Horn Relay |
| Relay 3 | - | Cooling Fan Relay |
| Relay 4 | - | Air Suspension Pump Relay, Police Power Relay |
