Ford Crown Victoria 1996 Fuse Box Info

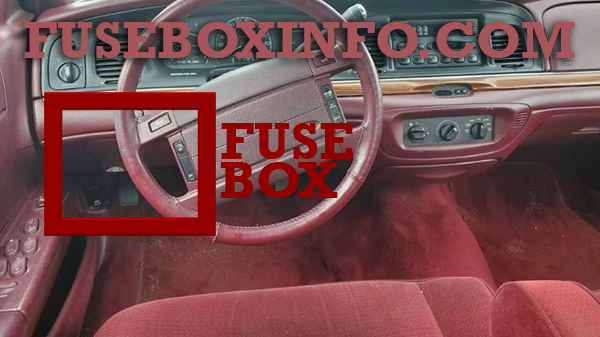

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the left side.

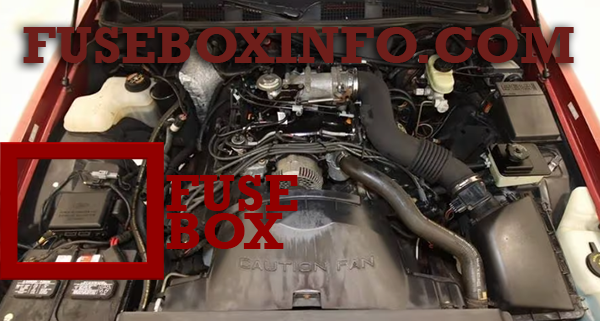

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Hazard Flasher, Speed Control, Stop Lamps |
| 2 | 30A | Wiper Control Module, Windshield Wiper Motor |
| 3 | - | Not Used |
| 4 | 15A | Lighting Control Module, Headlamp Dimmer Switch |
| 5 | 15A | Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Trailer Battery Charging, Electronic Day/Night Mirror, Shift Lock, EATC |
| 6 | 15A | Speed Control, Main Light Switch, Headlamp Dimmer Switch, Lighting Control Module, Clock, Heated Back Lights and Mirrors, Police Power Relay |
| 7 | 25A | Powertrain Control Module (PCM) Power Diode, Ignition Coils |
| 8 | 15A | Lighting Control Module, Power Mirrors, Remote Keyless Entry, Clock Memory, Radio Memory, Electronic Automatic Temperature Control (EATC), Power Door Locks, Power Seats, Power Windows, Police Spot Lamps |
| 9 | 30A | Blower Motor, A/C - Heater Mode Switch |
| 10 | 10A | Air Bag Module |
| 11 | 15A | Radio |
| 12 | 20A | Lighting Control Module, Flash-to-Pass, Main Light Switch |
| 13 | 15A | Air Bag Module, Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module, Front Control Unit |
| 14 | 20A | Window/Door Lock Control, Driver's Door Module, One Touch Down, Analog Instrument Cluster |
| 15 | 10A | Anti-Lock Brakes, Charge Indicator |
| 16 | 20A | Cigar Lighter, Emergency Flasher Relays |
| 17 | 10A | Power Mirrors, Rear Defrost |
| 18 | 15A | Air Bag Module, Digital Instrument Cluster |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| IGN. SW. | 50A | Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| IGN. SW. | 50A | Starter Relay, Fuses 5, 9 |
| LAMPS FUSE PANEL |
40A | Headlamps, Daytime Running Lamps, Fuses 4, 8, 16 and Circuit Breaker 12 |
| EEC | 30A | PCM Power Relay, PCM |
| COOLING FAN | 50A | Cooling Fan Relay |
| HTD BACKLITE |
40A | Rear Window Defrost Relay, Fuse 17 |
| ABS CONTROLLER |
30A | Anti-Lock Brake Module |
| *TRAILER BRAKES |
30A | Electric Brake Controller |
| *TRAILER TOW |
40A | Trailer Turn, Battery Charging Relay |
| **POLICE | 50A | Police Option Fuse Holder |
| **POLICE | 30A | Police Power Relay |
| ***AIR SUSP. PUMP/ SPEEDO |
30A | Air Suspension Compressor Relay, Air Spring Solenoids |
| FUEL PUMP | 20A | Electric Fuel Pump Relay |
| STARTER/ ALTERNATOR |
30A | Starter Relay, Generator, Fuses 15, 18 |
| AUDIO | 25A | Radio Amplifier, Subwoofer Amplifier |
| *TRAILER TOW |
20A | Trailer Exterior Lamp Relays |
| HORNS | 15A | Horn Relay, Horns |
| HI-BEAM HEADLIGHTS |
20A | Lighting Control Module, DRL |
| DOOR LOCKS/ SEAT MOTORS |
20A | Power Door Locks, Power Seats, Trunk Lid Release, Fuel Filler Door Release |
* With trailer tow only
** With police option only
*** With air suspension only
