Can-Am Spyder RT Series 2010 Fuse Box Info
Fuse box location:

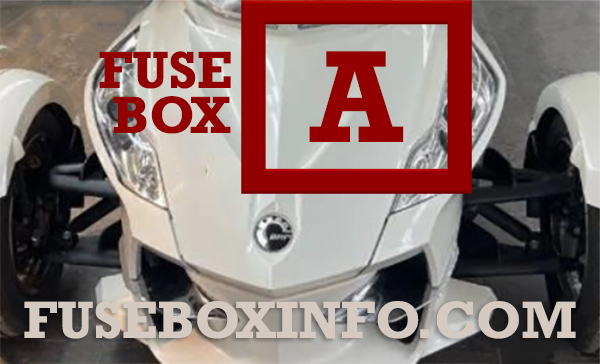

The fuse box A is located in front storage compartment.

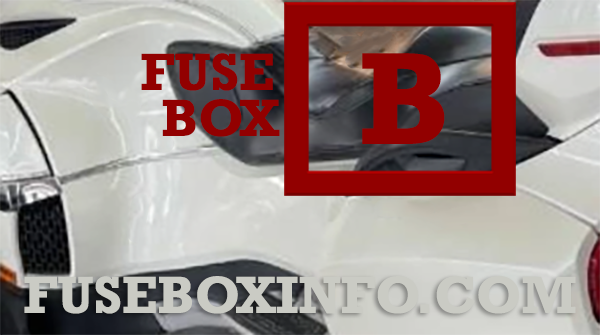

The fuse box B is located under the seat.
Fuse Box Diagram | Layout
Fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Lights: tail, position, plate & day; Vbat: Cluster, VIM & DLC |
| 2 | 10A | Vbat Control: mainr relays; Vkey: SAS, YRS, VCM, ECM, D.E.S.S., PRS & MSR |
| 3 | 25A | Vbat: Mainr relay; Vrelayed: WPM, CL ,FG, CTG, PBS pilot light, TCM, DPS |
| 4 | 15A | Vbat: Cooling fan relay |
| 5 | 10A | Vbat: Hazard, brake light switch |
| 6 | 15A | Vbat: radio (XM, CB, GPS, "iPod") |
| 7 | 10A | Vbat: Backup actuator & trailer module |
| 8 | 20A | Vbat: Horn, shedding relay; Vrelayed: suspension relay, heated grips, HA, LED; Pilot lights: CSS, FHS, FGS |
| 9 | 10A | Vbat: Accessory plugs |
| 10 | 5A | Vrelayed: ECM |
| 11 | 15A | Vrelayed: Injectors & ignition coils |
| 12 | 15A | Vrelayed: HO2S1 & 2, EVAP, CAPS, fuel pump motor, CSV, pre-starting relay |
Fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Accessories |
| 2 | 20A | TCM valves (SE5 model) |
| 3 | 60A | Spare |
| 4 | 40A | Main fuse |
| 5 | 40A | Dynamic Power Steering (DPS) motor |
| 6 | 40A | VSS pump |
| 7 | 30A | Headlights |
| 8 | 25A | VSS valves |
| 9 | 60A | Rectifier (Fuse is located under the LH rear side panel) |
