Ford Crown Victoria 1999 Fuse Box

Ford Crown Victoria 1999 Fuse Box Info

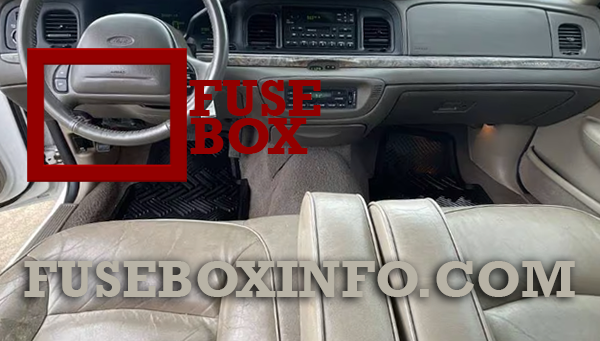

Passenger compartment fuse box location:

The fuse box is located below and to the left of the steering wheel by the brake pedal.



Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 15A Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control
2 30A Wiper Control Module, Windshield Wiper Motor
3 - Not Used
4 15A Lighting Control Module, Main Light Switch
5 15A Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Electronic Day/Night Mirror, Shift Lock, EATC, Speed Chime Warning
6 15A Speed Control, Main Light Switch, Lighting Control Module, Clock, Police Power Relay
7 25A Powertrain Control Module (PCM) Power Diode, Ignition Coils
8 15A Lighting Control Module, Power Mirrors, PATS Module, Keyless Entry, Clock Memory, Electronic Automatic Temperature Control (EATC), Power Windows, Police Spot Light, SecuriLock
9 30A Blower Motor, A/C-Heater Mode Switch
10 10A Air Bag Module
11 15A Radio
12 18A Lighting Control Module, Flash-to-Pass, Main Light Switch
13 15A Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module
14 20A Window/Door Lock Control, Driver’s Door Module, One Touch Down
15 10A Anti-Lock Brakes, Instrument Cluster, Transmission Control Switch
16 20A Cigar Lighter
17 10A Rear Defrost
18 10A Air Bag Module



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 20A Electric Fuel Pump Relay
2 30A Generator, Starter Relay, Fuses 15 and 18
3 25A Radio, CD Changer, Subwoofer Amplifier
4 30A Police Power Relay
5 15A Horn Relay
6 20A DRL Module
7 20A Power door Locks, Power Seats, Trunk Lid Release
8 30A Air Suspension System
9 50A Fuses 5 and 9
10 50A Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14
11 40A Fuses 4, 8, 16 and Circuit Breaker 12
12 30A PCM Power Relay, PCM, Natural Gas Vehicle Module
13 50A High Speed Cooling Fan Relay
14 40A Rear Window Defrost Relay, Fuse 17
15 50A Anti-Lock Brake Module
16 50A Police Option Fuse Holder
17 30A Cooling Fan Relay
Relay 1 - Rear Defrost Relay
Relay 2 - Horn Relay
Relay 3 - Cooling Fan Relay
Relay 4 - Air Suspension Pump Relay, Police Power Relay
