Ford Transit 2019 Fuse Box Info

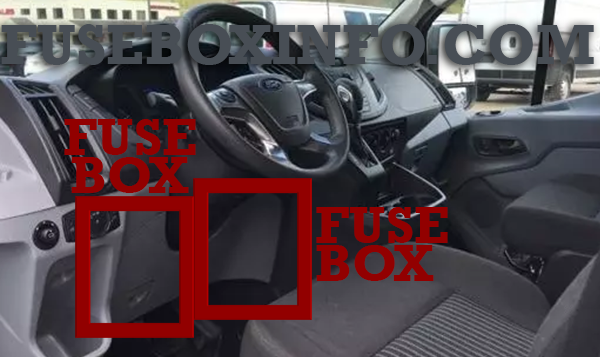

Passenger fuse box location:
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
3.2L POWER STROKE DIESEL:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Restraints control module |
| 2 | 4A | Anti-lock brake system with electronic stability control, Parking brake |
| 3 | 7.5A | Interior lighting, Power point relay control |
| 4 | 10A | Trailer tow reversing lamp relay |
| 5 | 20A | Modified vehicle connections |
| 6 | - | Not Used |
| 7 | 10A | Battery saver relay |
| 8 | 40A | Direct current/alternating current inverter |
| 9 | 30A | Trailer brake control module |
| 10 | 30A | Driver power seat |
| 11 | 30A | Passenger power seat |
| 12 | 30A | Trailer lamps |
| 13 | 25A | Anti-lock brake system with electronic stability control |
| 14 | 5A | Powertrain control module |
| 15 | 40A | Powertrain control module relay |
| 16 | 40A | Body control module |
| 17 | 40A | Anti-lock brake system |
| 18 | 40A | Modified vehicle connections |
| 19 | 5A | Trailer module |
| 20 | 5A | Heated exterior mirror relay, Heated rear window, Direct current/alternating current inverter |
| 21 | 10A | Modified vehicle connections |
| 22 | - | Not used |
| 23 | 7.5A | Air conditioning control module |
| 24 | 10A | Modified vehicle connections |
| 25 | 15A | Body control module |
| 26 | 10A | Heated exterior mirrors |
| 27 | 20A | Heated rear window |
| 28 | 20A | Heated rear window |
| 29 | 10A | Rear parking aid camera, Lane keeping system, Interior rear view mirror |
| 30 | - | Not Used |
| 31 | 10A | Trailer brake ignition feed |
| 32 | 10A | Interior lighting |
| 33 | 10A | Driver heated seat |
| 34 | 10A | Passenger heated seat |
| 35 | 5A | Exterior mirrors, Driver door window control switch |
| 36 | 20A | Horn |
| 37 | 7.5A | SYNC module, GPS module |
| 38 | 5A | Blower motor, Horn relay, Windshield wiper relay |
| 39 | 7.5A | Remote keyless entry, Rear heating, ventilation and air conditioning, Trailer tow backup relay coil, Parking lamp |
| 40 | 40A | Front blower motor |
| 41 | 40A | Rear blower motor |
| 42 | 40A | Heated rear window |
| 43 | 30A | Trailer socket, Trailer tow module |
| 44 | 60A | Auxiliary power points |
| 45 | 40A | Trailer tow module |
| 46 | 30A | Power windows |
| 47 | 20A | Cigar lighter socket |
| 48 | 20A | Rear auxiliary power points |
| 49 | 20A | Front auxiliary power points |
| 50 | 60A | Ignition relay 1 |
| 51 | 60A | Power step, Heated seats |
| 52 | 40A | Modified vehicle connections |
| 53 | 40A | Modified vehicle connections |
| R1 | - | Spare |
| R2 | - | Auxiliary power points |
| R3 | - | Trailer lamps |
| R4 | - | Not used |
| R5 | - | Power windows |
| R6 | - | Ignition 1 |
| R7 | - | Horn |
| R8 | - | Trailer tow reversing lamp |
| R9 | - | Front blower motor |
| R10 | - | Rear blower motor |
| R11 | - | Heated rear window, Heated exterior mirrors |
| R12 | - | Heated seats |
| R13 | - | Modified vehicle connections |
3.5L ECOBOOST™/3.7L:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Restraints control module |
| 2 | 4A | Anti-lock brake system with electronic stability control |
| 3 | 7.5A | Interior lighting, Power point relay control |
| 4 | 10A | Trailer tow reversing lamp relay |
| 5 | 20A | Modified vehicle connections |
| 6 | - | Not Used |
| 7 | 10A | Battery saver |
| 8 | 40A | Direct current/alternating current inverter |
| 9 | 30A | Trailer brake module |
| 10 | 30A | Driver power seat |
| 11 | 30A | Passenger power seat |
| 12 | 30A | Trailer lamps |
| 13 | 25A | Anti-lock brake system with electronic stability control |
| 14 | 5A | Powertrain control module |
| 15 | 40A | Powertrain control module relay |
| 16 | 40A | Body control module |
| 17 | 40A | Anti-lock brake system |
| 18 | 40A | Modified vehicle connections |
| 19 | 5A | Trailer module |
| 20 | 5A | Heated exterior mirror relay, Heated rear window, Direct current/alternating current inverter |
| 21 | 10A | Modified vehicle connections |
| 22 | - | Not used |
| 23 | 7.5A | Air conditioning control module |
| 24 | 10A | Modified vehicle connections |
| 25 | 15A | Body control module |
| 26 | 10A | Heated exterior mirrors |
| 27 | 20A | Heated rear window |
| 28 | 20A | Heated rear window |
| 29 | 10A | Rear parking aid camera, Lane keeping system, Interior rear view mirror |
| 30 | - | Not Used |
| 31 | 10A | Trailer brake ignition feed |
| 32 | 10A | Interior lighting |
| 33 | 10A | Driver heated seat |
| 34 | 10A | Passenger heated seat |
| 35 | 5A | Exterior mirrors, Driver door window control switch |
| 36 | 20A | Horn |
| 37 | 7.5A | SYNC module, GPS module |
| 38 | 5A | Blower motor relay, Horn relay, Windshield wiper relay |
| 39 | 7.5A | Remote keyless entry, Rear heating, ventilation and air conditioning, Trailer tow backup relay coil, Parking lamp |
| 40 | 40A | Front blower motor |
| 41 | 40A | Rear blower motor |
| 42 | 40A | Heated rear window |
| 43 | 30A | Trailer socket, Trailer tow module |
| 44 | 60A | Auxiliary power points |
| 45 | 40A | Trailer tow module |
| 46 | 30A | Power windows |
| 47 | 20A | Cigar lighter socket |
| 48 | 20A | Rear auxiliary power points |
| 49 | 20A | Front auxiliary power points |
| 50 | 60A | Ignition relay 1 |
| 51 | 60A | Power step, Heated seats |
| 52 | 40A | Modified vehicle connections |
| 53 | 40A | Modified vehicle connections |
| R1 | - | Spare |
| R2 | - | Auxiliary power points |
| R3 | - | Trailer lamps |
| R4 | - | Not used |
| R5 | - | Power windows |
| R6 | - | Ignition relay 1 |
| R7 | - | Horn |
| R8 | - | Trailer tow reversing lamp |
| R9 | - | Front blower motor |
| R10 | - | Rear blower motor |
| R11 | - | Heated rear window, Heated exterior mirrors |
| R12 | - | Heated seats |
| R13 | - | Modified vehicle connections |
Passenger compartment fuse box (Body Control Module):
3.2L POWER STROKE DIESEL:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Central locking system |
| 2 | 15A | Central locking system |
| 3 | 15A | Ignition switch |
| 4 | 5A | Parking assist control module, Brake shift interlock |
| 5 | 5A | Rain sensor module |
| 6 | 15A | Windshield washer pump |
| 7 | 7.5A | Exterior mirrors |
| 8 | - | Not used |
| 9 | 10A | Right-hand high beam |
| 10 | 10A | Left-hand high beam |
| 11 | 25A | Right-hand exterior lamps, Left-hand position lamps |
| 12 | - | Not used |
| 13 | 15A | Secondary On-Board Diagnostic Control Module A, Battery saver |
| 14 | 25A | Direction indicators, Power windows, Heated windshield element |
| 15 | 25A | Left-hand exterior lamps, Right-hand headlamp, Central high mounted stoplamp |
| 16 | 20A | Audio unit, Navigation unit |
| 17 | 7.5A | Instrument panel cluster, Auxiliary heater control module |
| 18 | 10A | Headlamp switch, Steering wheel module, Stoplamp switch |
| 19 | 5A | Front control/display interface module |
| 20 | 5A | Ignition passive anti-theft system |
| 21 | 3A | Spare |
3.5L ECOBOOST™/3.7L:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Central locking system |
| 2 | 15A | Central locking system |
| 3 | 15A | Ignition switch |
| 4 | 5A | Parking assist control module, Brake shift interlock |
| 5 | 5A | Rain sensor module |
| 6 | 15A | Windshield washer pump |
| 7 | 7.5A | Exterior mirrors |
| 8 | - | Not used |
| 9 | 10A | Right-hand high beam |
| 10 | 10A | Left-hand high beam |
| 11 | 25A | Right-hand exterior lamps, Left-hand position lamps |
| 12 | - | Not used |
| 13 | 15A | Secondary On-Board Diagnostic Control Module A, Battery saver |
| 14 | 25A | Direction indicators, Power windows, Heated windshield element |
| 15 | 25A | Left-hand exterior lamps, Right-hand headlamp, Central high mounted stoplamp |
| 16 | 20A | Audio unit, Navigation unit |
| 17 | 7.5A | Instrument panel cluster, Auxiliary heater control module |
| 18 | 10A | Headlamp switch, Steering wheel module, Stoplamp switch |
| 19 | 5A | Front control/display interface module |
| 20 | 5A | Ignition passive anti-theft system |
| 21 | 3A | Spare |
Engine compartment fuse box:
3.2L POWER STROKE DIESEL:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Selective catalytic reduction system |
| 2 | 15A | Selective catalytic reduction system |
| 3 | 15A | Selective catalytic reduction system |
| 4 | 10A | Selective catalytic reduction system |
| 5 | 3A | Diesel particulate filter vaporizer, Glow plug monitor |
| 6 | - | Not used |
| 7 | 7.5A | Automatic transmission module |
| 8 | - | Not used |
| 9 | - | Not used |
| 10 | 30A | Power step, Heated seats |
| 11 | 10A | Air conditioning clutch |
| 12 | 20A | Diesel particulate filter vaporizer glow plug |
| 13 | - | Not used |
| 14 | 3A | Selective catalytic reduction system |
| 15 | - | Not used |
| 16 | 10A | Fuel pump relay |
| 17 | 15A | Automatic transmission module |
| 18 | 30A | Fuel pump relay, Automatic transmission module |
| 19 | 30A | Starter motor solenoid |
| 20 | 60A | Glow plugs |
| 21 | 60A | Ignition relay 3 |
| 22 |
40A - |
Selective catalytic reduction system Not used |
| 23 | 10A | Spare |
| 24 | - | Not used |
| 25 | 10A | Spare |
| 26 | 20A | Spare |
| 27 | - | Not Used |
| 28 | 7.5A | Crankcase pressure sensor |
| 29 |
- 7.5A |
Not used Positive crankcase ventilation valve heater element |
| 30 |
60A - |
Cooling fan Not used |
| 31 | - | Not used |
| 32 | 30A | Windshield wiper motor |
| 33 | - | Not used |
| 34 | - | Not Used |
| 35 | 15A | Powertrain control module |
| 36 | 15A | Particulate matter sensor, Selective catalytic reduction system, Nitrogen oxides sensor |
| 37 | 7.5A | Fuel volume control valve |
| 38 |
- 7.5A |
Not used Air conditioning clutch |
| 39 | 15A | Exhaust gas temperature sensor, Fuel vaporizer system fuel pump, Coolant bypass solenoid valve, Low-speed cooling fan, High-speed cooling fan |
| R1 | - | Ignition relay 3 |
| R2 | - | Not used |
| R3 | - | Not Used |
| R4 | - | Not used |
| R5 | - | Not used |
| R6 | - | Windshield wiper on/off relay |
| R7 | - | Windshield wiper high/low speed relay |
| R8 | - | Not used |
| R9 | - | Starter motor |
| R10 | - | Air conditioning clutch |
| R11 | - | Fuel vaporizer system glow plug |
| R12 | - | Fuel injection pump |
| R13 | - | Not used |
| R14 | - | Not used |
| R15 | - | Low-speed and high-speed cooling fan relay |
| R16 | - | Selective catalytic reduction system |
| R17 | - | Powertrain control module |
| R18 | - | High speed cooling fan |
3.5L ECOBOOST™/3.7L:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 7.5A | Automatic transmission module |
| 8 | 30A | Cooling fan |
| 9 | - | Not used |
| 10 | 30A | Power step, Heated seats |
| 11 | 10A | Air conditioning clutch |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Not used |
| 16 | 20A | Fuel pump relay |
| 17 | - | Not used |
| 18 | 30A | Anti-lock brake system, Fuel pump relay |
| 19 | 30A | Starter motor solenoid |
| 20 | - | Not used |
| 21 | 60A | Ignition relay 3 |
| 22 | 40A | Selective catalytic reduction system catalyst, Brake vacuum pump relay |
| 23 | 10A | Spare |
| 24 | - | Not used |
| 25 | 10A | Spare |
| 26 | 20A | Spare |
| 27 | - | Not Used |
| 28 | - | Not used |
| 29 | 3A | Audio unit |
| 30 | 40A | Cooling fan |
| 31 | 40A | Cooling fan |
| 32 | 30A | Windshield wiper motor |
| 33 | - | Not used |
| 34 | - | Not Used |
| 35 | 20A | Powertrain control module |
| 36 | 20A | Mass air flow sensor |
| 37 | - | Not used |
| 38 | 20A | Air conditioning clutch |
| 39 |
7-5A 10A |
Exhaust gas temperature sensor -3.7L, Fuel vaporizer system fuel pump -3.7L, Coolant bypass solenoid valve -3.7L, Low-speed cooling fan -3.7L, High-speed cooling fan -3.7L Exhaust gas temperature sensor - 3.5L Ecoboost, Fuel vaporizer system fuel pump - 3.5L Ecoboost, Coolant bypass solenoid valve - 3.5L Ecoboost, Low-speed cooling fan - 3.5L Ecoboost, High-speed cooling fan - 3.5L Ecoboost |
| R1 | - | Ignition relay 3 |
| R2 | - | Not used |
| R3 | - | Not Used |
| R4 | - | Not used |
| R5 | - | Cooling fan |
| R6 | - | Windshield wiper on/off relay |
| R7 | - | Windshield wiper high/low speed relay |
| R8 | - | Brake vacuum pump |
| R9 | - | Starter motor |
| R10 | - | Air conditioning clutch |
| R11 | - | Not used |
| R12 | - | Fuel injection pump |
| R13 | - | Not used |
| R14 | - | Not used |
| R15 | - | Low-speed and high-speed cooling fan relay |
| R16 | - | Not used |
| R17 | - | Powertrain control module |
| R18 | - | High speed cooling fan |
