Ford Transit 2021 Fuse Box Info

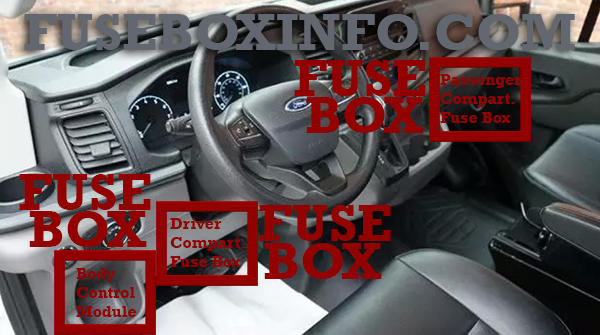

Passenger fuse box location:
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Relay 2 |
| 2 | 40A | Relay 3 |
| 3 | 20A | Relay 1 |
| 4 | 20A | Relay 4 |
| 5 | 20A | Relay 5 |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | 20A | Relay 7 |
| 9 | 20A | Relay 8 |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 20A | Relay 9 |
| 13 | 20A | Relay 6 |
| 14 | 5A | Ignition |
| 15 | 5A | Power supply |
| 16 | 20A | Auxiliary switch 3 relay |
| 17 | 40A | Auxiliary switch 3 relay |
| 18 | 40A | Auxiliary switch 3 relay |
| 19 | 20A | Auxiliary switch 4 relay |
| 20 | 20A | Auxiliary switch 5 relay |
| 21 | 20A | Auxiliary fuse box relay |
| 22 | 20A | Auxiliary switch 7 relay |
| 23 | 20A | Auxiliary switch 8 relay |
| 24 | 20A | Auxiliary switch 9 relay |
Passenger compartment fuse box (Driver Compartment Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | USB port |
| 2 | - | Not used |
| 3 | 5A | USB port |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | 10A | Heated exterior mirrors |
| 10 | 5A | Cooling fan |
| 11 | - | Not used |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Not used |
| 16 | 5A | Rain sensor |
| 17 | - | Not used |
| 18 | 20A | Relay |
| 19 | - | Not used |
| 20 | - | Not used |
| 21 | 20A | Heated rear window |
| 22 | 20A | Heated rear window |
| 23 | 20A | Auxiliary power point |
| 24 | 20A | Auxiliary power point |
| 25 | - | Not used |
| 26 | 25A | Windshield wiper motor |
| 27 | - | Not used |
| 28 | 30A | Modified vehicle connections |
| 29 | 20A | Fuel fired heater |
| 30 | 30A | Power running boards |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | 25A | Load shed relay |
| 42 | 40A | Starter relay |
| 43 | 40A | Upfitter relay |
| 44 | 40A | Starter relay |
| 45 | 10A | Upfitter interface module |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | 5A | Modified vehicle connections |
| 49 | 10A | Brake pedal switch |
| 50 | 30A | Passenger power seat |
| 51 | 40A | Modified vehicle connections |
| 52 | 30A | Driver power seat |
| 53 | 60A | Battery |
| 54 | 60A | Power inverter |
| 55 | 50A | Body control module |
| 56 | 10A | Modified vehicle connections |
| 57 | - | Not used |
| 58 | 10A | Connector camper body interface, Upfitter interface, Secondary junction box |
| 59 | 10A | Rear climate control, Front view camera, Rear view camera, Adaptive cruise control module, Blind spot information system |
| 60 | 10A | Trailer brake control module |
| 61 | - | Not used |
| 62 | 15A | Enhanced cut off relay system module |
| 63 | 20A | Auxiliary power point |
| 64 | 40A | Modified vehicle connections |
| 65 | - | Not used |
| 66 | 10A | Enhanced cut off relay system, Camper, Load shed relay |
| 67 | - | Not used |
| 68 | 5A | Trailer tow module |
| 69 | 5A | Steering wheel module |
| 70 | 5A | Swivel seats |
| 71 | 10A | Passenger heated seat |
| 72 | 10A | Driver heated seat |
| 73 | 20A | Adaptive front lighting module, Headlamp leveling |
| 74 | - | Not used |
| 75 | 20A | Engine compartment fuse box |
| 76 | 10A | Power sliding door control switch |
| 77 | 5A | Headlamp switch |
| 78 | 7.5A | Modified vehicle connections |
| 79 | 5A | Driver compartment fuse box relay |
| 80 | - | Not used |
| 81 | 40A | Trailer tow module |
| 82 | 30A | Power sliding door |
| 83 | 30A | Trailer brake control module |
| 84 | 50A | Body control module |
| 85 | 30A | Power sliding door |
| 86 | 50A | Body control module |
Passenger compartment fuse box (Body Control Module):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 10A | Power inverter |
| 3 | 7.5A | Power window switch, Power exterior mirrors |
| 4 | 20A | Not used |
| 5 | - | Not used |
| 6 | 10A | Not used |
| 7 | 10A | Not used |
| 8 | 5A | Telematics control unit module |
| 9 | 5A | Rear air conditioning |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | 7.5A | Climate control |
| 13 | 7.5A | Data link connector, Steering column, Instrument cluster |
| 14 | 15A | Not used |
| 15 | 15A | SYNC 3 module, Integrated control panel |
| 16 | - | Not used |
| 17 | 7.5A | Not used |
| 18 | 7.5A | Not used |
| 19 | 5A | Not used |
| 20 | 5A | Ignition switch |
| 21 | 5A | Not used |
| 22 | 5A | Not used |
| 23 | 30A | Not used |
| 24 | 30A | Not used |
| 25 | 20A | Not used |
| 26 | 30A | Not used |
| 27 | 30A | Not used |
| 28 | 30A | Not used |
| 29 | 15A | Not used |
| 30 | 5A | Not used |
| 31 | 10A | Data link connector, Remote key receiver |
| 32 | 20A | Radio |
| 33 | - | Not used |
| 34 | 30A | Run/Start relay, Parking aid, Steering column |
| 35 | 5A | Not used |
| 36 | 15A | Parking aid, Steering column control module |
| 37 | 20A | Not used |
| 38 | 30A | Power windows |
Passenger compartment fuse box (Pre-fuse Box):
The fuse box is under the driver seat.
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | Body control module |
| 2 | 80A | Electronic power assist steering |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | 150A | Passenger compartment fuse box |
| 7 | 60A | Camper |
| 8 | - | Not used |
| 9 | 500A | Starter motor, Alternator |
| 10 | 300A | Engine compartment fuse box |
| 11 | 250A | Dual generators |
| 12 | 150A | Driver compartment fuse box |
| 13 | 190A | Load shed relay |
| 14 | 175A | Auxiliary power point 1 |
| 15 | 60A | Auxiliary power point 2 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Wipers |
| 2 | - | Not used |
| 3 | 40A | All-Wheel Drive |
| 4 | 30A | Parking lamps |
| 5 | 10A | Reversing lamp |
| 6 | - | Not used |
| 7 | 40A | Front blower motor |
| 8 | - | Not used |
| 9 | 15A | Rear door latch |
| 10 | - | Not used |
| 11 | 40A | Auxiliary power point, USB port |
| 12 | 20A | Horn |
| 13 | - | Not used |
| 14 | 15A | Vehicle power 5 |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | 10A | Right-hand high-intensity discharge headlamps |
| 18 | 40A | Rear window defroster |
| 19 | 20A | Front fog lamps |
| 20 | 10A | Power folding mirrors |
| 21 | 15A | Vehicle power 4 |
| 22 | 40A | Rear blower motor |
| 23 | 20A | Fuel pump |
| 24 | 40A | Run/Start relay |
| 25 | 40A | Auxiliary power points |
| 26 | 10A | Left-hand high-intensity discharge headlamps |
| 27 | - | Not used |
| 28 | 20A | Vehicle power 1 |
| 29 | - | Not used |
| 30 | 15A | Coolant pump |
| 31 | 5A | Anti-lock brake system |
| 32 | 15A | Transmission control module |
| 33 | 30A | Starter motor |
| 34 | - | Not used |
| 35 | 15A | Vehicle power 2 |
| 36 | 5A | Engine coolant bypass valve |
| 37 | 5A | Glow plugs, Powertrain control module |
| 38 |
40A 60A |
Anti-lock brake system with electronic stability control (excluding 510 series) Cooling fan (510 series) |
| 39 | - | Not used |
| 40 | 10A | Vehicle power 3 |
| 41 | - | Not used |
| 42 |
- 15A |
Not used (excluding 510 series) Cooling fan (510 series) |
| 43 | 60A | Anti-lock brake system pump |
| 44 |
25A - |
Cooling fan (excluding 510 series) Not used (510 series) |
| 45 | 30A | Trailer socket |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 |
50A 40A |
Cooling fan (excluding 510 series) Anti-lock brake system with electronic stability control (510 series) |
| 49 | - | Not used |
| 50 | - | Not used |
| 51 | 10A | Air conditioning clutch |
| 52 |
50A 60A |
Cooling fan (excluding 510 series) Cooling fan (510 series) |
| 53 | - | Not used |
| 54 | 20A | Battery back-up sounder |
| 55 | 25A | Transmission fluid pump |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | 30A | Trailer socket |
| 59 | - | Cooling fan relay |
