Ford Transit 2015 Fuse Box Info
Passenger fuse box location:
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Airbag module |
| 2 | 4A | Anti-lock brake system with electronic stability control, Parking brake |
| 3 | - | Not Used |
| 4 | 10A | Trailer tow back-up lamp relay |
| 5 | 20A | Cutaway body connectors |
| 6 | - | Not Used |
| 7 | - | Not Used |
| 8 | 40A | AC power outlet socket |
| 9 | 30A | Trailer brake module |
| 10 | 30A | Driver power seat |
| 11 | 30A | Passenger power seat |
| 12 | 30A | Trailer tow park lamp relay |
| 13 | 25A | Anti-lock brake system with electronic stability control valves |
| 14 | 5A | Powertrain control module B+ relay |
| 15 | 40A | Powertrain control module power relay |
| 16 | 40A | Body control module power feed |
| 17 | 40A | Ignition relay 3 |
| 18 | 40A | Modified vehicle connections |
| 19 | - | Not Used |
| 20 | 5A | Heated exterior mirror relay |
| 21 | 10A | Modified vehicle ignition connections |
| 22 | 15A | Passenger compartment fuse panel |
| 23 | 7.5A | Air conditioning control module |
| 24 | 10A | Cutaway body connectors |
| 25 | 7.5A | Interior lighting |
| 26 | 10A | Heated exterior mirrors |
| 27 | 20A | Heated rear window |
| 28 | 20A | Heated rear window |
| 29 | 10A | Rear parking aid camera, Lane keeping system, Electro mirror |
| 30 | - | Not Used |
| 31 | 10A | Trailer brake ignition feed |
| 32 | 10A | Interior lighting |
| 33 | - | Not Used |
| 34 | - | Not Used |
| 35 | 5A | Power folding mirrors |
| 36 | 20A | Horn |
| 37 | 7.5A | SYNC module |
| 38 | 5A | Blower motor, Horn relay, Windshield wiper relay |
| 39 | 7.5A | Remote keyless entry, Battery, Power windows, Rear heating, ventilation and air conditioning |
| 40 | 40A | Front blower motor |
| 41 | 40A | Rear blower motor |
| 42 | 40A | Heated rear window |
| 43 | 30A | Trailer socket |
| 44 | 60A | Auxiliary power points |
| 45 | 40A | Trailer connectors B+ supply |
| 46 | 30A | Power windows |
| 47 | 20A | Cigar lighter socket |
| 48 | 20A | Rear auxiliary power points |
| 49 | 20A | Front auxiliary power points |
| 50 | 60A | Ignition relay 1 |
| 51 | 60A | Ignition relay 2 |
| 52 | 40A | Modified vehicle connections |
| 53 | 40A | Modified vehicle connections |
| R1 | - | Not used (spare) |
| R2 | - | Auxiliary power points |
| R3 | - | Trailer tow parking lamp |
| R4 | - | Ignition 2 |
| R5 | - | Power windows |
| R6 | - | Ignition 1 |
| R7 | - | Horn |
| R8 | - | Trailer tow back-up lamp |
| R9 | - | Front blower motor |
| R10 | - | Rear blower motor |
| R11 | - | Heated rear window, Heated exterior mirrors |
| R12 | - | Not used |
| R13 | - | Modified vehicle connections |

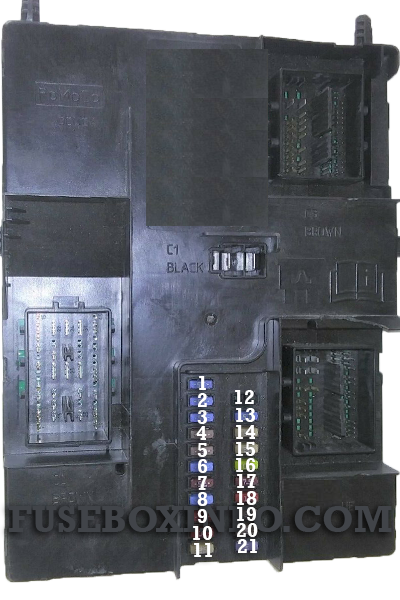

Passenger compartment fuse box (Body Control Module):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Central locking system 2 |
| 2 | 15A | Central locking system 1 |
| 3 | 15A | Ignition switch |
| 4 | 5A | Parking assist control module, Brake transmission shift interlock |
| 5 | 5A | Rain sensor module |
| 6 | 15A | Windshield washer pump |
| 7 | - | Not used |
| 8 | - | Not used |
| 9 | 10A | Right-hand high beam |
| 10 | 10A | Left-hand high beam |
| 11 | 25A | Right-hand exterior lamps, Left-hand position lamps |
| 12 | - | Not used |
| 13 | 15A | On-board diagnostic, Battery saver |
| 14 | 25A | Turn signal indicator, Power windows delayed accessory. Lane departure sensor heated windshield pad |
| 15 | 25A | Left-hand exterior lamps, Right-hand position lamps. High mounted stoplamp |
| 16 | 20A | Audio unit, Navigation unit |
| 17 | 7.5A | Instrument panel cluster, Heater control |
| 18 | 10A | Headlamp switch module, Steering wheel module. Stoplamp switch supply |
| 19 | 5A | Front control/display interface module |
| 20 | 5A | Ignition passive anti-theft system |
| 21 | 3A | Accessory relay, customer access feed |

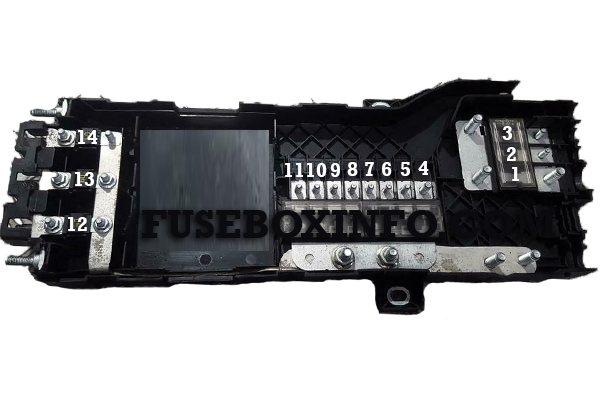

Passenger compartment fuse box (Pre-fuse Box):
This box is located under the driver's seat.
| Fuse/Relay N° | Rating | Functions |
| 1 | 470A | Engine compartment fuse box, Starter motor, Alternator |
| 2 | 100A | Passenger compartment fuse panel, Body control module fuse box |
| 3 | 40A | Powertrain control module, Anti-lock brake system |
| 4 | 200A | Passenger compartment fuse panel |
| 5 | 100A | Passenger compartment fuse panel |
| 6 | 80A | Positive temperature coefficient heater |
| 7 | - | Not Used |
| 8 | 100A | Engine junction box feed |
| 9 | 100A | Passenger compartment fuse panel |
| 10 | 60A | Passenger compartment fuse panel supply |
| 11 | 60A | Passenger compartment fuse panel supply |
| 12 | 60A | Auxiliary power point 1 |
| 13 | 60A | Auxiliary power point 2 |
| 14 | 60A | Auxiliary power point 3 |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Selective Catalytic Reduction - Diesel |
| 2 | 15A | Selective Catalytic Reduction - Diesel |
| 3 | 15A | Selective Catalytic Reduction - Diesel |
| 4 | 10A | Selective Catalytic Reduction - Diesel |
| 5 | 3A | Diesel particulate filter vaporizer, Glow plug monitor |
| 6 | 3A | Anti-lock brake system, Stability assist, Ignition |
| 7 | 7.5A | Powertrain control module |
| 8 | 20A | Cooling fan - Gasoline |
| 9 | 30A | Left-hand windshield wiper |
| 10 | 30A | Right-hand windshield wiper |
| 11 | 10A | Air conditioning clutch |
| 12 | 20A | Diesel particulate filter vaporizer glow plug |
| 13 | - | Not used |
| 14 | 3A | Selective Catalytic Reduction - ignition - Diesel |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | 40A | Anti-lock brake system, Stability assist pump |
| 19 | 30A | Starter solenoid |
| 20 | 60A | Glow plugs |
| 21 | 60A | Ignition relay 3 |
| 22 | 40A | Selective Catalytic Reduction relay feed |
| 22 | 40A | Electric vacuum pump relay feed |
| 23 | 10A | PROTECTED CIRCUIT FUSE |
| 24 | 10A | Fuel injection pump - Diesel |
| 24 | 20A | Fuel injection pump - Gasoline |
| 25 | 15A | Throttle control unit - Diesel |
| 25 | 10A | PROTECTED CIRCUIT FUSE - Gasoline |
| 26 | 20A | PROTECTED CIRCUIT FUSE |
| 27 | - | Not Used |
| 28 | 7.5A | Climate controlled seats |
| 28 | 10A | Injection power - Gasoline 3.7L |
| 29 | 3A | Ignition feed - Audio - Gasoline |
| 29 | 7.5A | Crank case ventilation heater – Diesel |
| 30 | 60A | Single cooling fan |
| 30 | 40A | Twin cooling fan |
| 31 | 40A | Twin cooling fan 2 - Gasoline |
| 32 | 30A | Windshield wiper motor |
| 32 | 60A | Windshield dual wiper motors |
| 33 | 20A | Start-Stop auxiliary water pump |
| 34 | - | Not Used |
| 35 | 20A | Powertrain control system supply - Gasoline |
| 35 | 15A | Powertrain control system supply - Diesel |
| 36 | 20A | Mass air flow sensor - Gasoline |
| 36 | 15A | Mass air flow sensor, NOX sensor 1, 2 - Diesel |
| 37 | 7.5A | Volume Control Valve |
| 38 | 20A | Air conditioning clutch - Gasoline |
| 38 | 7.5A | Air conditioning clutch - Diesel |
| 39 | 10A | UEGO, VAP PUMP, EBYPASS, EDF, HEDF - Gasoline |
| 39 | 15A | UEGO, VAP PUMP, EBYPASS, EDF, HEDF - Diesel |
| R1 | - | Ignition 3 |
| R2 | - | Not used |
| R3 | - | Not Used |
| R4 | - | Not used |
| R5 | - | Cooling fan - Gasoline |
| R6 | - | Windshield wiper - on and off |
| R7 | - | Windshield wiper - low and high speed |
| R8 | - | Electrical Vacuum Pump - Gasoline |
| R9 | - | Starter motor |
| R10 | - | Air conditioning clutch |
| R11 | - | Fuel vaporizer system glow plug |
| R12 | - | Fuel injection pump |
| R13 | - | Not used |
| R14 | - | Not used |
| R15 | - | Low and high speed cooling fan |
| R16 | - | Selective Catalytic Reduction - Diesel |
| R17 | - | Powertrain control module |
| R18 | - | High speed cooling fan |
