Citroën DS3 2015 Fuse Box Info

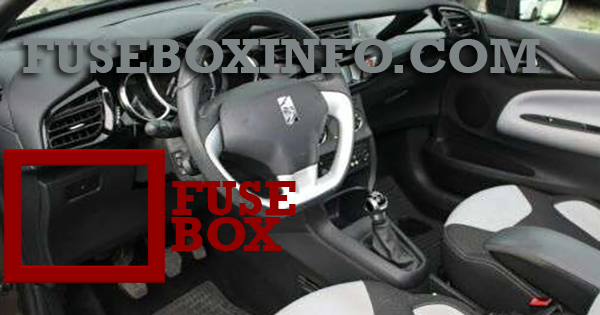

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

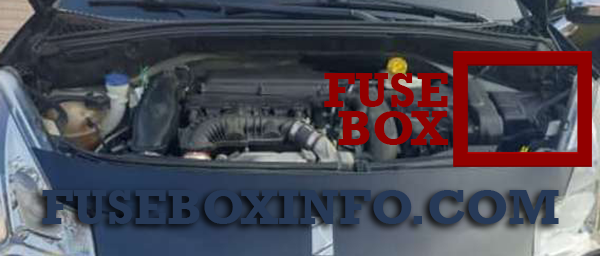

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Rear wiper |
| 2 | - | Not used |
| 3 | 5A | Air bags and pretensioners control unit |
| 4 | 10A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel) |
| 5 | 30A | Electric windows panel, passenger’s electric window control, front electric window motor |
| 6 | 30A | Driver’s electric window motor |
| 7 | 5A | Courtesy lamp |
| 8 | 20A | Multifunction screen, audio system, navigation radio, alarm control unit, alarm siren |
| 9 | 30A | 12 V socket, portable navigation support supply |
| 10 | 15A | Steering wheel controls |
| 11 | 15A | Ignition, diagnostic socket, automatic gearbox control unit |
| 12 | 15A | Rain/brightness sensor, trailer relay unit |
| 13 | 5A | Main stop switch, engine relay unit |
| 14 | 15A | Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier |
| 15 | 30A | Locking |
| 16 | - | Not used |
| 17 | 40A | Rear screen and door mirrors demisting/defrosting |
| SH | - | PARC shunt |
| FH36 | 5A | Trailer relay unit |
| FH37 | - | Not used |
| FH38 | 20A | Hi-Fi amplifier |
| FH39 | - | Not used |
| FH40 | 40A | Trailer relay unit |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 20A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel) |
| 2 | 15A | Horn |
| 3 | 10A | Front/rear wash-wipe |
| 4 | 20A | LED lamps |
| 5 | 15A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), EGR electrovalve (Diesel), blow-by heater and electrovalves (VTi) |
| 6 | 10A | ABS/DSC control unit, secondary stop switch |
| 7 | 10A | Electric power steering, automatic gearbox |
| 8 | 25A | Starter control |
| 9 | 10A | Switching and protection unit (Diesel) |
| 10 | 30A | Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol) |
| 11 | 40A | Heater blower |
| 12 | 30A | Windscreen wipers slow/fast speed |
| 13 | 40A | Built-in systems interface supply (ignition positive) |
| 14 | 30A | Valvetronic supply (VTi) |
| 15 | 10A | Right-hand main beam headlamp |
| 16 | 10A | Left-hand main beam headlamp |
| 17 | 15A | Left-hand dipped beam headlamp |
| 18 | 15A | Right-hand dipped beam headlamp |
| 19 | 15A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel) |
| 20 | 10A | Pumps, electronic thermostat (VTi), timimg electrovalve (THP), water in fuel sensor (Diesel) |
| 21 | 5A | Fan assembly control supply, ABS/DSC, turbo pump (THP) |
| Maxi fuses | ||
| 1 | 60A | Fan assembly |
| 2 | 30A | ABS / DSC pump |
| 3 | 30A | ABS / DSC electrovalves |
| 4 | 60A | Built-in Systems Interface (BSI) supply |
| 5 | 60A | Built-in Systems Interface (BSI) supply |
| 6 | 20A | Additional cooling fan unit (THP) |
| 7 | - | Dashboard fusebox |
| 8 | - | Not used |
