Chevrolet Prizm 1998 Fuse Box Info

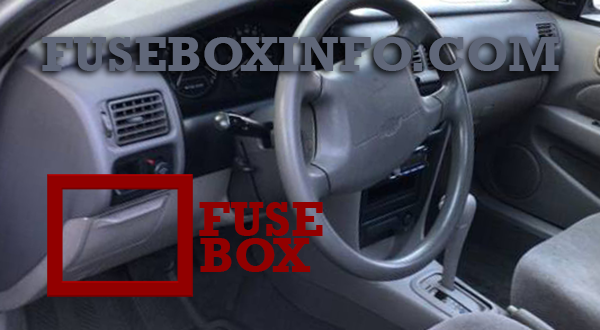

Passenger compartment fuse box location:
The fuse box is located below the dimmer switch, behind the storage compartment cover.

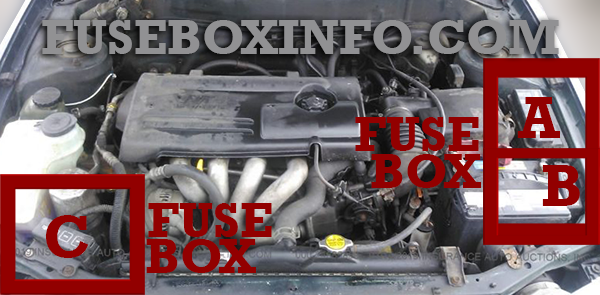

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| TURN | Turn Signal |
| ECU-IG | ABS System, BTSI, Cruise Control, Cooling Fan |
| ST | Starting System |
| S-HTR | Not Used |
| IGN | Fuel Injection System, Charge Indicator, Air Bag System |
| D/L | Power Door Lock |
| GAUGE | RKE System, Sunroof, Power Windows, Rear Defogger, Warning Alarms, DRL, Gages, Heater, Generator, Backup Lamps |
| OBD | OBD II System |
| FOG | Not Used |
| CIG | Cigarette Lighter, Air Bags, Power Mirrors, BTSI, Radio |
| WIP | Windshield Wiper System |
| STOP | Stoplamps, BTSI |
| *1 | DEF System, Fuel Injection System |
| TAIL | Exterior Lamps, Insmment Panel Dimming |
| ECU-B | Air Bag Indicator |
Engine compartment fuse box A:
| Fuse/Relay Name | Functions |
| FL ABS | ABS System |
| ST | Starting System (Relay) |
| MAIN | Starting System, Headlamps |
| FL ALT | Charging System, Cooling Fan |
| DOME | Sunroof, Dome Lamp, RKE System, Trunk Lamp, DRL, Radio, Warning Alarms |
| HEAD | Headlamp (Relay) |
| HAZARD | Hazard Lamp |
| AM2 | Starting System, Accessories |
| HEAD (LH) or HEAD (LH-UPR) |
Left Headlamp (High-Beam) |
| ALT-S | Charging System |
| HEAD (RH) or HEAD (RH-UPR) |
Right Headlamp (High-Beam) |
| EFI or F-HTR | Fuel Injection System |
| HORN | Horn System |
| EFI or F-HTR | Fuel Injection System (Relay) |
| FAN No. 1 | Cooling Fan (Relay) |
| RDI | Cooling Fan |
| ENGINE MAIN | Main Engine (Relay) |
| HORN (Relay) | Horn System |
| AM1 | Starting System, Air Bags |
Engine compartment fuse box B:
| Fuse/Relay Name | Functions |
| DRL | DRL System |
| HEAD (RH-LWR) |
Right Headlamps (Low-Beam) |
| HEAD (LH-LWR) |
Left Headlamps (Low-Beam) |
| CDS | A/C Condenser Fan |
| AC MG | Air Conditioning System (Relay) |
| AC FAN N0.3 | Air Conditioner Fan Relay #3 |
| AC FAN N0.2 | Air Conditioner Fan Relay #2 |
| DIMMER | Instrument Panel Dimming (Relay) |
Engine compartment fuse box C:
| Fuse/Relay Name | Functions |
| A/C | Air Conditioning System |
| HTR | Heating System |
| HTR | Heating System (Relay) |
| DRL | DRL System (Relay) |
