Cadillac VISTIQ 2026 Fuse Box Info
Passenger compartment fuse box location:

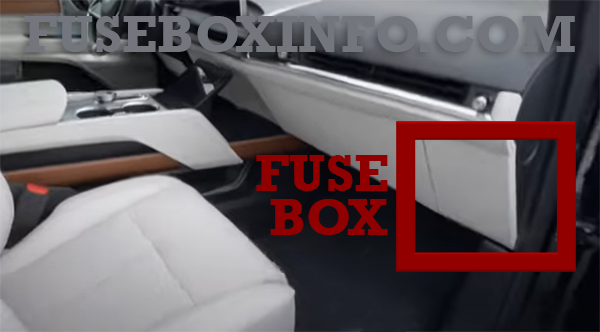

The instrument panel fuse box is on the passenger side of the instrument panel, between the glove box and the door.

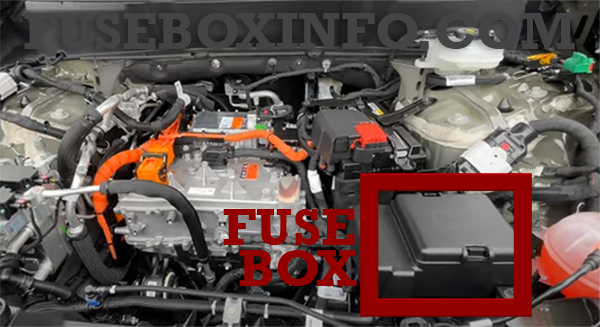

Engine compartment fuse box location:
Luggage compartment fuse box location:

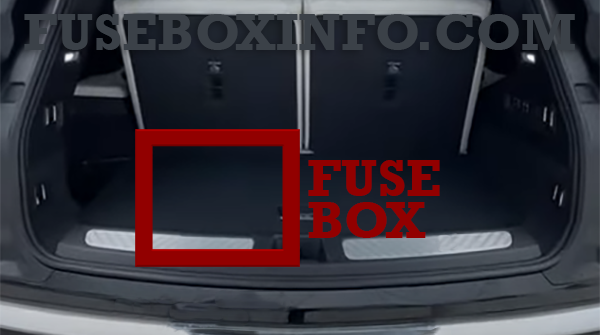

The luggage compartment fuse box is located behind a cover on the driver side of the luggage compartment.
Fuse Box Diagram | Layout

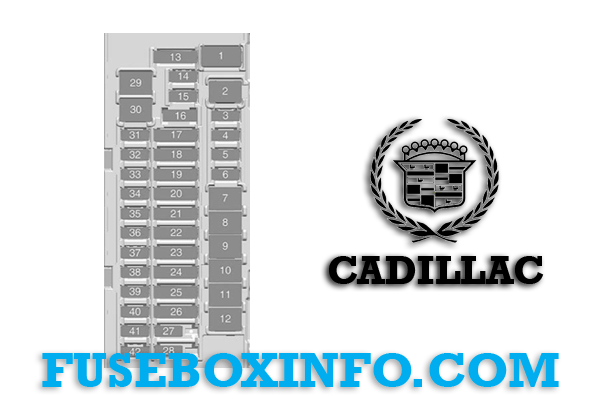

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | APO – Auxiliary Power Outlet |
| 2 | CHARGE_USB_ROW 3_CONSOLE – Charge USB Row 3 Console |
| 3 | - |
| 4 | HVPO_CHARGE_USB_ROW 2 – High Voltage Power Outlet Charge USB ROW 2 |
| 5 | ESCL_RC – Electric Steering Column Lock |
| 6 | ELM 1 – Exterior Lighting Module 1 |
| 7 | PRESENTING_DR_RT Presenting Door Right |
| 8 | DR_LATCH_RT – Door Latch Right |
| 9 | DR_LATCH_LT – Door Latch Left |
| 10 | CPM – Steering Column Position Module |
| 11 | ACP 4 – ADAS Compute Platform 4 |
| 12 | PRESENTING_DR_LT - Presenting Door Left |
| 13 | TRAILER_EU & IPE_AWD_VICM_TPIM - Trailer EU & Integrated Power Electronics AWD/Vehicle Integration Control Module/Traction Power Inverter Module |
| 14 | RR_WIPER – Rear Wiper |
| 15 | LRR-FRT/LIDAR – Front Long Range Radar/LIDAR |
| 16 | CLOCK SPRING |
| 17 | SEAT_FAN_RT & SEAT_FAN_LT – Seat Fan Right & Seat Fan Left |
| 18 | VCD & SRR – Virtual Cockpit Display & Short Range Radar |
| 19 | MISC2 & MISC1 – RUN/CRANK Miscellaneous 2 Switch Bank/Electronic Toll Collection/Interior Particulate Matter Sensor/ Reflective Light Auxiliary Display and Miscellaneous 1 Electronic Brake Control Module/Exterior Lighting Module/Sensing and Diagnostic Module/Inside Rear View Mirror |
| 20 | BCM 1 & VICM – Body Control Module 1 & Vehicle Integration Control Module |
| 21 | RSI_JACK & SW_BANK_ETRS- Rear Seat Infotainment Jack & Switch Bank Electronic Transmission Range Select |
| 22 | VKM/AUX JACK & ACP 3 – Virtual Key Module/Auxiliary Jack & ADAS Compute Platform 3 |
| 23 | T/LIGHT RT & T/LIGHT LT– Tail Light Right & Tail Light Left |
| 24 | PAM_SBZA & SDM/AOS PAM Side Blind Zone Alert & Sensing and Diagnostic Module/Automatic Occupant Sensing |
| 25 | ACP2/FCM/MFC & DMS/CGM/DLC/VDM ADAS Compute Platform/ Front Camera Module/Multi-Function Control & Driver Monitoring System/Central Gateway Module/Diagnostic Link Connector/Vehicle Data Monitor |
| 26 | ACEC & HUD/HVAC DISPLAY- AC Electric Compressor & Head Up Display/Heating, Ventilation and Air Conditioning Display |
| 27 | BCM 3 – Body Control Module 3 |
| 28 | BCM 2 – Body Control Module 2 |
| 29 | - |
| 30 | BCM 4 – Body Control Module 4 |
| 31 | SD CARD/AQI/ILSS/OHC SD Card/Air Quality Ionizer/Integrated Light and Solar Sensor/Overhead Console |
| 32 | HDLT LT – Headlight Left |
| 33 | HDLT RT – Headlight Right |
| 34 | ELM 2 – Exterior Lighting Module 2 |
| 35 | HSWM – Heated Steering Wheel Module |
| 36 | VCU 1 – Virtual Cockpit Unit 1 |
| 37 | TCP – Telematics Control Platform |
| 38 | WCM_FRT – Wireless Charging Module Front |
| 39 | HVSL – High Voltage System Lockout |
| 40 | VCU 2 – Virtual Cockpit Unit 2 |
| 41 | ELM 6 – Exterior Lighting Module 6 |
| 42 | - |

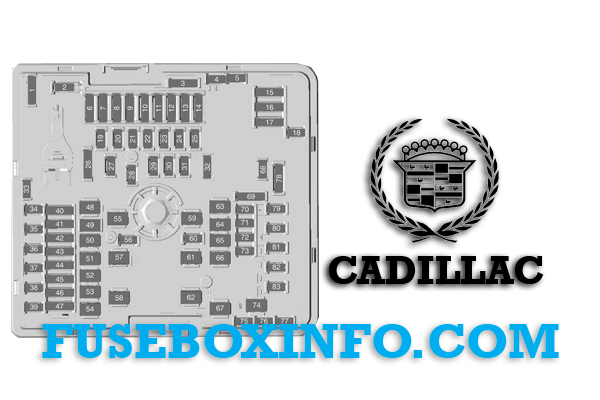

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SPARE |
| 2 | TUMBLE_SEAT_RT_MTR Power Fold Tumble Rear Right Seat Motor |
| 3 | SPARE |
| 4 | SPARE |
| 5 | SPARE |
| 6 | MSM/MBM – Memory Seat Module/Memory Bolster Module |
| 7 | MTR_PEEV_SCEV – Motor: Primary Evaporator Expansion Valve/Secondary Chiller Expansion Valve IRM – Integrated Refrigerant Model |
| 8 | MTR_MCV – Motor Main Coolant Valve |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | IPE_AWD – Integrated Power Electronics AWD OBCM2 – On Board Charging Module 2 |
| 13 | ESSCP – Energy Storage System Coolant Pump PECP – Power Electronics Coolant Pump |
| 14 | - |
| 15 | TRLR PRK LIGHT – Trailer Park Lights |
| 16 | MTR_CCCP – Cabin Conditioning Coolant Pump TRLR REV LIGHT – Trailer Reverse Light |
| 17 | - |
| 18 | GLBX DR RELSE – Glove Box Door Release |
| 19 | - |
| 20 | TUMBLE_SEAT_LT_MTR Power Fold Tumble Rear Left Seat Motor |
| 21 | CPDM – Charge Port Door Motor |
| 22 | DC_AC_INVERTER – DC AC Inverter |
| 23 | - |
| 24 | - |
| 25 | - |
| 26 | SPARE |
| 27 | - |
| 28 | SENSOR FARM HEATER |
| 29 | - |
| 30 | RR_CARGO_APO – Rear Cargo Auxiliary Power Outlet |
| 31 | TIM1 – Trailer Interface Module 1 |
| 32 | SPARE |
| 33 | SPARE |
| 34 | ELM5 – Exterior Lighting Module 5 |
| 35 | ELM4 – Exterior Lighting Module 4 |
| 36 | ETC MOD – Electronic Toll Collection Module |
| 37 | - |
| 38 | ELM7 – Exterior Lighting Module 7 |
| 39 | ELM3 – Exterior Lighting Module 3 |
| 40 | TPIM1 – Trailer Interface Module 1 TPIM3 – Trailer Interface Module 3 |
| 41 | DSP_FRT – Door Switch Panel Front VLM_E – Vehicle Leveling Module |
| 42 | SEAT_SW_ROW1 – Seat Switch Row 1 VKM SNSR/RLH SNSR– Virtual Key Module Sensor/RLH Sensor |
| 43 | ESCL – Electric Steering Column Lock CHIM – Charge Interface Module |
| 44 | PWR_SOUNDER Power Sounder AERO SHUT – Aero Shutter |
| 45 | PLCM – Power Line Communication Module RFR – Remote Function Receiver |
| 46 | PFA – Pedestrian Friendly Alert & AFS/AHL – Adaptive Forward Lighting/Automatic Headlight Leveling |
| 47 | LIGHT_GRILLE_EMBLEM - Light Grille Emblem SADS – Semi Active Damping System |
| 48 | PWR_TAILGATE- Power Tailgate |
| 49 | - |
| 50 | MTR WDW LIFTER LT – Motor Window Lifter Left |
| 51 | VLM_M – Vehicle Leveling Module |
| 52 | MTR WDW LIFTER RT – Motor Window Lifter Right |
| 53 | DRIVER FRT WPR – Driver Front Wiper |
| 54 | TRAILER_BATT - Trailer Battery |
| 55 | REAR DEFOG – Rear Defog |
| 56 | FOLD SEAT RIGHT MOTOR - Fold Seat Right Motor |
| 57 | EBCM_1 – Electronic Brake Control Module 1 |
| 58 | CFM – Cooling Fan Motor |
| 59 | - |
| 60 | HORN |
| 61 | - |
| 62 | MTR_RR_BLOWER – Motor Rear Blower |
| 63 | MTR_SUNROOF - Motor Sunroof |
| 64 | MSM_M_DRIVER – Memory Seat Module Driver |
| 65 | MSM_M_CO_DRIVER - Memory Seat Module Co-Driver |
| 66 | MTR_FRT_BLOWER – Motor Front Blower |
| 67 | WPR_DE_ICE – Wiper De-Ice |
| 68 | SPARE |
| 69 | SPARE |
| 70 | RELAY'S COIL |
| 71 | REAR_HEATED_SEAT 2 – Rear Heated Seat 2 |
| 72 | FRONT_HEATED_SEAT1 - Front Heated Seat 1 |
| 73 | FOLD SEAT LEFT MOTOR - Fold Seat Left Motor |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | SPARE |
| 76 | SPARE |
| 77 | SPARE |
| 78 | TRLR ST/TRN RT – Trailer Stop/Turn Right TRLR ST/TRN LT – Trailer Stop/Turn Left |
| 79 | REAR_HEATED_SEAT1 – Rear Heated Seat 1 |
| 80 | FRONT_HEATED_SEAT2 - Front Heated Seat 2 |
| 81 | OUT OF PARK DISABLE |
| 82 | WASH PUMP |
| 83 | CAMERA WASH |

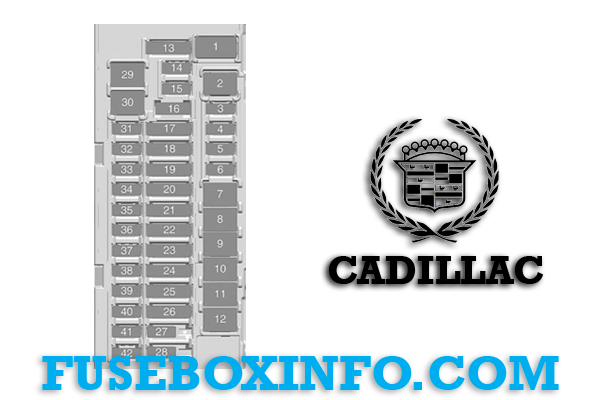

Luggage compartment fuse box:
