Cadillac ATS (Coupe & Sedan) 2016 Fuse Box Info
Fuse box location:

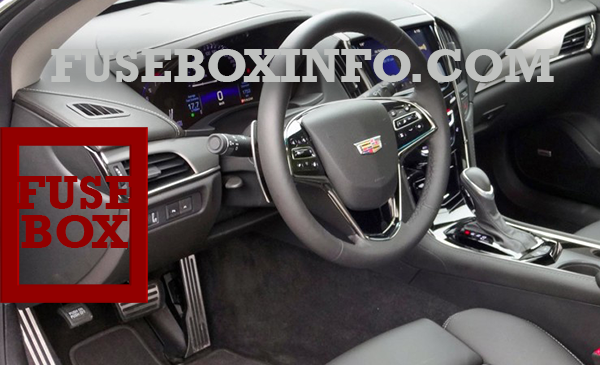

The instrument panel fuse box is in the end of the driver side of the instrument panel.

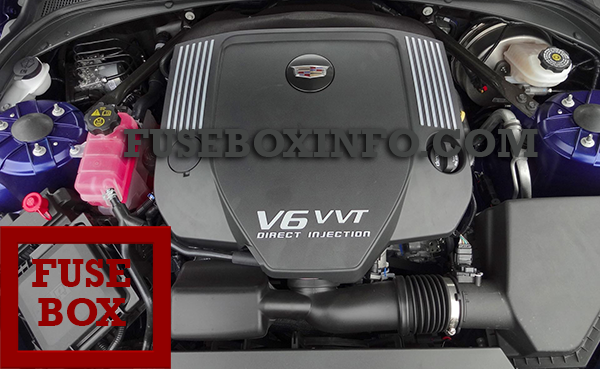

Engine compartment fuse box:

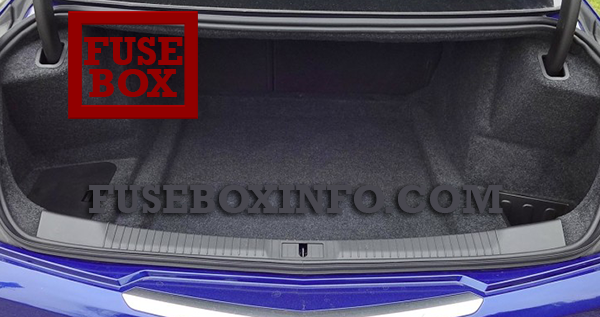

Luggage compartment fuse box:
The rear compartment fuse box is behind a cover on the driver side of the rear compartment.
Fuse Box Diagram | Layout

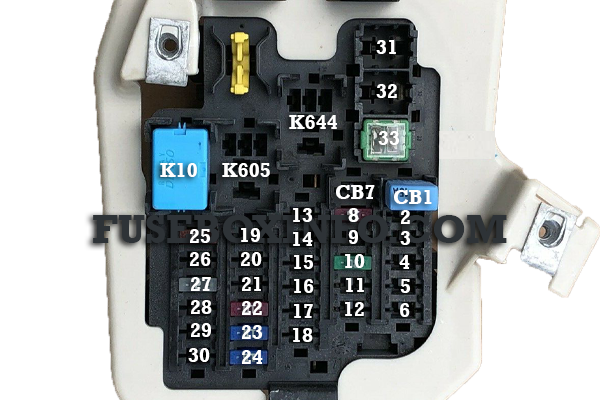

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | Spare |
| 3 | Electric Steering Column Lock |
| 4 | Spare |
| 5 | Heater, Ventilation, and Air Conditioning Contro |
| 6 | Tilt and Telescoping Steering Column |
| 8 | Data Link Connector |
| 9 | Spare |
| 10 | Shunt |
| 11 | Body control module 1 |
| 12 | Body control module 5 |
| 13 | Body control module 6 |
| 14 | Spare |
| 15 | Body control module 7 |
| 16 | Transmission control module |
| 17 | Spare |
| 18 | Spare |
| 19 | Spare |
| 20 | Spare |
| 21 | Spare |
| 22 | Sensing Diagnostic Module/Automatic Occupant Sensing |
| 23 | Radio/DVD/Heater, Ventilation, and Air Conditioning Control |
| 24 | Display |
| 25 | Heated Steering Wheel |
| 26 | Wireless Charger |
| 27 | Steering Wheel Controls |
| 28 | Spare |
| 29 | Visor vanity lamp |
| 30 | Spare |
| 31 | Spare |
| 32 | Spare |
| 33 | Front Heater, Ventilation, and Air Conditioning Blower |
| CB1 | Retained Accessory Power/Accessory Power Outlet Power |
| CB7 | Spare |
| K10 | Retained Accessory Power/Accessory |
| K605 | Logistics |
| K644 | Spare |

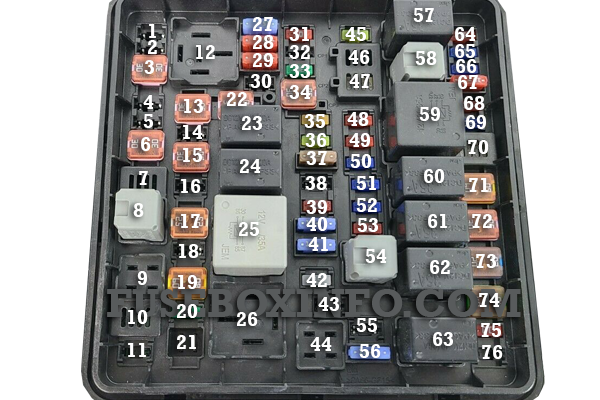

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Not Used |
| 2 | Not Used |
| 3 | Passenger motorized seat belt |
| 4 | Not Used |
| 5 | Not Used |
| 6 | Driver Power Seat |
| 7 | Not Used |
| 8 | Headlamp Washer Relay |
| 9 | Not Used |
| 10 | Not Used |
| 11 | Not Used |
| 12 | Not Used |
| 13 | Passenger Power Seat |
| 14 | Not Used |
| 15 | Passive Entry/ Passive Start |
| 16 | Not Used |
| 17 | Headlamp Washer |
| 18 | Not Used |
| 19 | Antilock Brake System Pump |
| 20 | Antilock Brake System Valve |
| 21 | Not Used |
| 22 | Driver motorized seat belt |
| 23 | Wiper Control Relay |
| 24 | Wiper Speed Relay |
| 25 | Engine Control Module Relay |
| 26 | Not Used |
| 27 | Spare/Heated Seat 2 |
| 28 | Spare/Reverse lockout |
| 29 | AFS AHL/ Pedestrian Protection |
| 30 | Not Used |
| 31 | Passenger window switch |
| 32 | Not Used |
| 33 | Sunroof |
| 34 | Front wiper |
| 35 | Steering column lock |
| 36 | Rear electrical center ignition |
| 37 | Spare/MIL ignition |
| 38 | Spare/PT fuse |
| 39 | Oxygen sensor |
| 40 | Ignition coils/ Injectors |
| 41 | Ignition coils/ Injectors/Spare |
| 42 | Engine control module |
| 43 | Not Used |
| 44 | Not Used |
| 45 | Washer |
| 46 | Not Used |
| 47 | Front washer relay |
| 48 | Instrument panel body ignition |
| 49 | Fuel system control module ignition |
| 50 | Heated steering wheel |
| 51 | Engine control module ignition |
| 52 | Transmission control module ignition |
| 53 | Coolant pump |
| 54 | Coolant pump relay |
| 55 | Not Used |
| 56 | Transmission control module/ Spare |
| 57 | Headlamp low relay |
| 58 | Headlamp high relay |
| 59 | Run/Crank relay |
| 60 | Starer 2 relay |
| 61 | Vacuum pump relay |
| 62 | Starter relay |
| 63 | Air conditioning control relay |
| 64 | Adaptive headlamp leveling |
| 65 | Left high intensity discharge headlamp |
| 66 | Right high intensity discharge headlamp |
| 67 | Headlamp high left/ right |
| 68 | Aero shutter |
| 69 | Horn |
| 70 | Horn relay |
| 71 | Cooling fan |
| 72 | Starter 2 |
| 73 | Brake vacuum pump |
| 74 | Starter |
| 75 | Air conditioning compressor clutch |
| 76 | Not used |

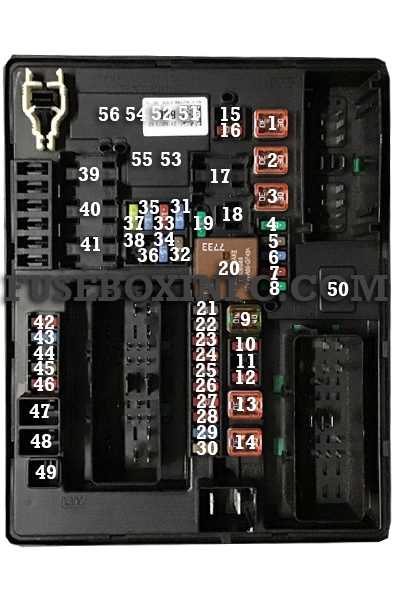

Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| 1* | Rear driver control module/DC DC transformer |
| 2 | Left Window |
| 3 | Body Control Module 8 |
| 4* | A/C Inverter |
| 5 | Passive Entry Passive Start Battery 1 |
| 6 | Body Control Module 4 |
| 7 | Heated Mirrors |
| 8 | Amplifier |
| 9 | Rear Window Defogger |
| 10 | Glass Break |
| 11* | Trailer Connector |
| 12 | OnStar (If Equipped) |
| 13 | Right Window |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Trunk Release |
| 17* | Run Relay |
| 18* | Logistics Relay |
| 19* | Not Used |
| 20 | Rear Window Defogger Relay |
| 21 | Mirror Window Module |
| 22 | Spare |
| 23 | Canister Vent |
| 24 | Body Control Module 2 |
| 25* | Rear Vision Camera |
| 26* | Front Ventilated Seats |
| 27* | SBZA/LDW/EOCM |
| 28* | Trailer/Sunshade |
| 29* | Rear Heated Seats |
| 30* | Semi-Active Damping System |
| 31* | Transfer case control module/Rear control drive module |
| 32 | Theft module/ Universal garage door opener/Rain sensor |
| 33* | UPA |
| 34* | Radio/DVD |
| 35 | Not Used |
| 36* | Trailer |
| 37 | Fuel Pump/Fuel System Control Module |
| 38 | Not Used |
| 39 | Not Used |
| 40 | Not Used |
| 41 | Not Used |
| 42* | Memory Seat Module |
| 43 | Body Control Module 3 |
| 44 | Not Used |
| 45 | Battery Regulated Voltage Control |
| 46 | Engine Control Module Battery |
| 47 | Not Used |
| 48 | Not Used |
| 49* | Trailer Module |
| 50 | Door lock security |
| 51 | Rear closure release |
| 52 | Spare |
| 53 | Not Used |
| 54 | Door lock security |
| 55 | Not Used |
| 56* | Fuel door |
* Optional
