Buick Encore 2017 Fuse Box Info
Fuse box location:

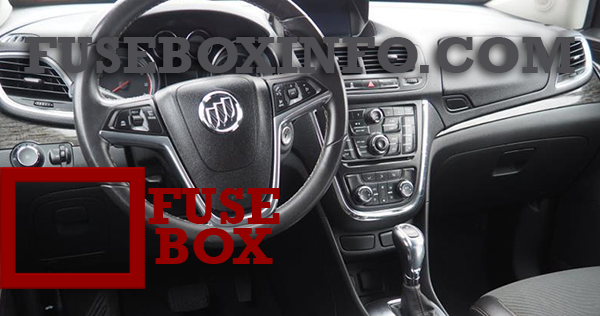

The instrument panel fuse box is on the underside of the driver side instrument panel.

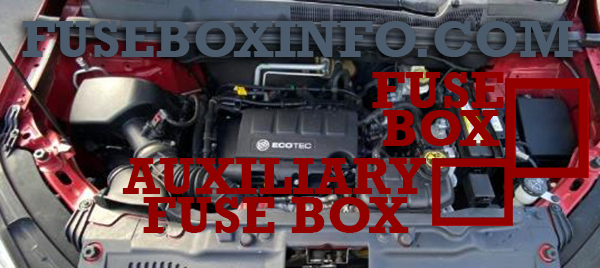

Engine compartment fuse box:

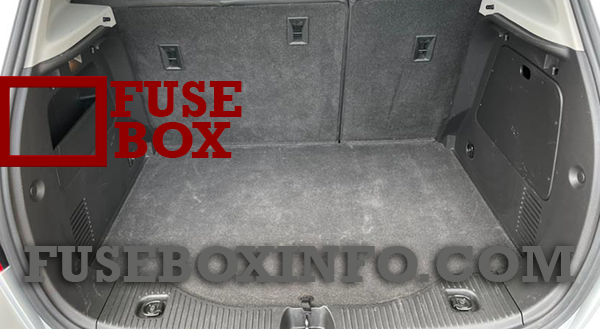

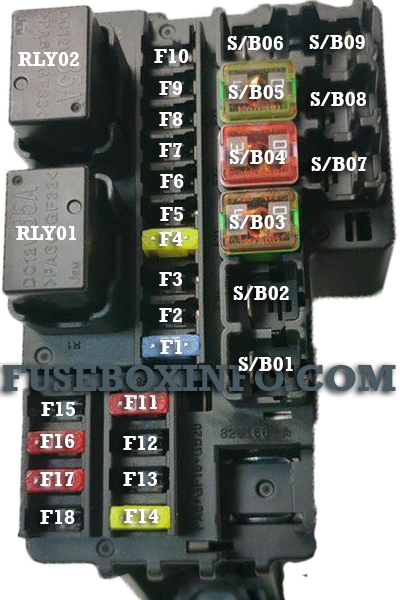

Luggage compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Body Control Module 1 |
| 2 | Body Control Module 2 |
| 3 | Body Control Module 3 |
| 4 | Body Control Module 4 |
| 5 | Body Control Module 5 |
| 6 | Body Control Module 6 |
| 7 | Body Control Module 7 |
| 8 | Body Control Module 8 |
| 9 | Discrete Logic Ignition Switch |
| 10 | Sensing Diagnostic Module Battery |
| 11 | Data Link Connector |
| 12 | HVAC module/ICS |
| 13 | Liftgate Relay |
| 14 | Central gate module |
| 15 | Lane departure warning/GENTEX |
| 16 | Adaptive Forward Lighting Module |
| 17 | Electrical steering column lock |
| 18 | Parking assist module/Side blind zone alert |
| 19 | Body control module/Regulated voltage control |
| 20 | Clock spring |
| 21 | A/C Accessory Power Outlet/ PRNDL |
| 22 | Auxiliary power outlet/DC center |
| 23 | HVAC module/ICS |
| 24 | - |
| 25 | OnStar module/ Eraglonass |
| 26 | Heated steering wheel |
| 27 | Instrument panel cluster/Auxiliary heater/Auxiliary virtual image display |
| 28 | Trailer feed 2 |
| 29 | Faceplate |
| 30 | DC/DC 400W |
| 31 | Instrument panel cluster module battery |
| 32 | Silver box audio module/Navigation |
| 33 | Trailer feed 1 |
| 34 | Passive entry/ Passive start |
| S/B Fuses | |
| 1 | Passenger power seat |
| 2 | - |
| 3 | Front power windows |
| 4 | Rear power windows |
| 5 | Logistic mode relay |
| 6 | Driver power seat |
| 7 | - |
| 8 | Trailer interface module |
| Circuit Breaker | |
| CB1 | - |
| Midi Fuses | |
| M01 | Positive temperature coefficient |
| Relays | |
| 01 | Accessory/Retained Accessory Power |
| 02 | Liftgate |
| 03 | - |
| 04 | - |
| 05 | Logistic Mode |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Sunroof |
| 2 | Exterior rearview mirror switch/Driver side power window/ Rain sensor/ Universal garage door opener |
| 3 | Canister Vent Solenoid |
| 4 | - |
| 5 | Electronic Brake Control Module Valve |
| 6 | Intelligent Battery Sensor |
| 7 | Electric steering column lock |
| 8 | Transmission control module/FICM |
| 9 | Automatic occupancy sensing module |
| 10 | Headlamp leveling switch/Headlamp leveling motor/Rear vision camera/ Interior rearview mirror |
| 11 | Rear Wiper |
| 12 | Rear Window Defogger |
| 13 | Power lumbar switch |
| 14 | Exterior rearview mirror heater |
| 15 | Fuel System Control Module Battery |
| 16 | Heated Seat Module/Memory Module |
| 17 | TIM DC DC converter/Fuel system control module RC/ Compass module |
| 18 | Engine control module RC/ Transmission control module RC/ FICM RC |
| 19 | Fuel Pump |
| 20 | - |
| 21 | Fan relay (auxiliary BEC) |
| 22 | - |
| 23 | Ignition coil/ Injector coil |
| 24 | Washer Pump |
| 25 | Automatic headlamp leveling |
| 26 | EMS Var 1 |
| 27 | –/Auxiliary heater pump |
| 28 | –/Engine control module powertrain/ Ignition 3 |
| 29 | Engine control module powertrain/ Ignition 1/Ignition 2 |
| 30 | EMS Var 2 |
| 31 | Left High-Beam Headlamp |
| 32 | Right High-Beam Headlamp |
| 33 | Engine Control Module Battery |
| 34 | Horn |
| 35 | A/C clutch |
| 36 | Front Fog Lamps |
| J-Case Fuses | |
| 1 | Electronic Brake Control Module Pump |
| 2 | Front Wiper |
| 3 | Linear power module blower |
| 4 | IEC RC |
| 5 | - |
| 6 | - |
| 7 | –/Starter solenoid |
| 8 | Cooling fan low – mid |
| 9 | Cooling fan – high |
| 10 | EVP |
| 11 | Starter solenoid/ Starter pinion |
| U-Micro Relays | |
| 2 | Fuel Pump Power |
| 4 | –/Auxiliary heater pump |
| HC-Micro Relays | |
| 7 | Starter/Starter pinion |
| 10 | Starter solenoid |
| Mini Relays | |
| 1 | Run Crank |
| 3 | Cooling Fan Mid |
| 5 | Powertrain Relay |
| 8 | Cooling Fan Low |
| HC-Mini Relays | |
| 6 | Cooling Fan High |
Auxiliary Fuse Box:
| Fuse/Relay N° | Functions |
| 01 | Electric Vacuum Pump |
| 02 | Cooling Fan Control 1 |
| 03 | Cooling Fan Control 2 |
| 04 | N/A |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | - |
| 2 | - |
| 3 | Amplifier audio |
| 4 | - |
| 5 | Rear drive control module |
| 6 | Left cornering lamp |
| 7 | Right cornering lamp |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | - |
| 18 | - |
| S/B Fuses | |
| 1 | - |
| 2 | - |
| 3 | - |
| 4 | DC/AC inverter module |
| 5 | - |
| 6 | - |
| 7 | DC-DC transformer 400W |
| 8 | DC-DC transformer 400W |
| 9 | - |
| Relays | |
| 1 | Right cornering lamp |
| 2 | Left cornering lamp |
