Buick Encore 2015 Fuse Box Info
Fuse box location:
The instrument panel fuse box is on the underside of the driver side instrument panel.
Engine compartment fuse box:
Luggage compartment fuse box:
Fuse Box Diagram | Layout

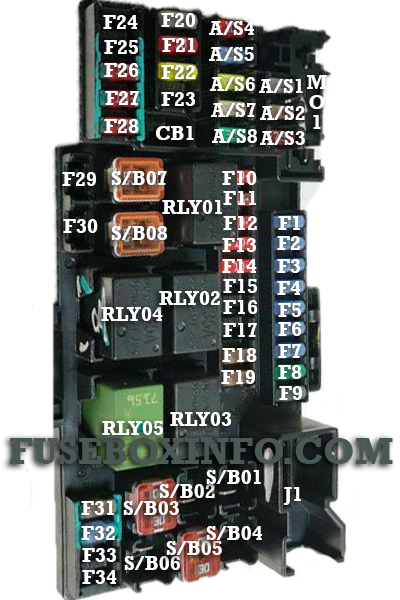

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Body Control Module 1 |
| 2 | Body Control Module 2 |
| 3 | Body Control Module 3 |
| 4 | Body Control Module 4 |
| 5 | Body Control Module 5 |
| 6 | Body Control Module 6 |
| 7 | Body Control Module 7 |
| 8 | Body Control Module 8 |
| 9 | Discrete Logic Ignition Switch |
| 10 | Sensing Diagnostic Module Battery |
| 11 | Data Link Connector |
| 12 | Heater, Ventilation, and Air Conditioning MDL/ICS |
| 13 | Liftgate Relay |
| 14 | UPA Module |
| 15 | LDW Module/Inside Rearview Mirror |
| 16 | Adaptive Forward Lighting Module |
| 17 | Power WNDWSW DR |
| 18 | Rain Sensor |
| 19 | Body Control Module Regulated Voltage Control |
| 20 | Steering Wheel Switch Backlighting |
| 21 | A/C Accessory Power Outlet/ PRNDL |
| 22 | Cigar Lighter/DC Accessory Power Outlet |
| 23 | Spare |
| 24 | Spare |
| 25 | Spare |
| 26 | Automatic Occupant Sensing Display |
| 27 | IPC/PTC Control/ Clutch Switch |
| 28 | Headlamp Switch/ AFL/DC Converter |
| 29 | Spare |
| 30 | Spare |
| 31 | IPC Battery |
| 32 | Radio/Chime/ Aux Jack |
| 33 | Display/Faceplate |
| 34 | OnStar/UHP/DAB |
| S/B Fuses | |
| 1 | Spare |
| 2 | Spare |
| 3 | Power Window Motor Front |
| 4 | Power Window Motor Rear |
| 5 | Logistic Mode Relay |
| 6 | Spare |
| 7 | Spare |
| 8 | Spare |
| Circuit Breaker | |
| CB1 | Spare |
| Midi Fuse | |
| M01 | PTC |
| Relays | |
| 01 | Accessory/Retained Accessory Power |
| 02 | Liftgate |
| 03 | Spare |
| 04 | Spare |
| 05 | Logistic Mode |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Sunroof |
| 2 | Outside Rearview Mirror Switch |
| 3 | Canister Vent Solenoid |
| 4 | Not used |
| 5 | Electronic Brake Control Module Valve |
| 6 | Not used |
| 7 | Not used |
| 8 | Transmission Control Module Battery |
| 9 | BCM Regulated Voltage Control |
| 10 | Fuel System Control Module R/C/ Headlamp Leveling |
| 11 | Rear Wiper |
| 12 | Rear Window Defogger |
| 13 | Not used |
| 14 | Outside Rearview Mirror Heater |
| 15 | Fuel System Control Module Battery |
| 16 | Heated Seat Module/Memory Module |
| 17 | Transmission Control Module R/C |
| 18 | Engine Control Module R/C |
| 19 | Fuel Pump |
| 20 | Not used |
| 21 | Fan Relay (Auxiliary Fuse Block) |
| 22 | Not Used |
| 23 | Ignition Coil/Injectors |
| 24 | Washer Pump |
| 25 | Not used |
| 26 | Canister Purge Solenoid/Water Valve Solenoid/ Oxygen Sensors – Pre and Post/Turbo Wastegate Solenoid (1.4L)/Turbo Bypass Solenoid (1.4L) |
| 27 | Not used |
| 28 | Not used |
| 29 | Engine Control Module Powertrain Ignition 1/Ignition 2 |
| 30 | Mass Air Flow Sensor |
| 31 | Left High-Beam Headlamp |
| 32 | Right High-Beam Headlamp |
| 33 | Engine Control Module Battery |
| 34 | Horn |
| 35 | Air Conditioning Compressor Clutch |
| 36 | Front Fog Lamps |
| J-Case Fuses | |
| 1 | Electronic Brake Control Module Pump |
| 2 | Front Wiper |
| 3 | Blower Motor |
| 4 | IEC R/C |
| 5 | Not used |
| 6 | Not used |
| 7 | Not used |
| 8 | Cooling Fan Low/Mid |
| 9 | Cooling Fan High |
| 10 | EVP |
| 11 | Starter Solenoid |
| U-Micro Relays | |
| 2 | Not Used |
| 4 | Spare |
| HC-Micro Relays | |
| 7 | Starter |
| Mini Relays | |
| 1 | Run Crank |
| 3 | Cooling Fan Mid |
| 5 | Powertrain Relay |
| 8 | Cooling Fan Low |
| HC-Mini Relays | |
| 6 | Cooling Fan High |
Auxiliary Fuse Box:
| Fuse/Relay N° | Functions |
| 01 | Electric Vacuum Pump |
| 02 | Cooling Fan Control 1 |
| 03 | Cooling Fan Control 2 |
| 04 | Trailer (N/A) |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Driver Seat Power Lumbar Switch |
| 2 | Passenger Seat Power Lumbar Switch |
| 3 | Amplifier |
| 4 | Trailer Socket (N/A) |
| 5 | All-Wheel Drive Module |
| 6 | Automatic Occupant Sensing Module |
| 7 | Spare/LPG Module Battery |
| 8 | Trailer Parking Lamps (N/A) |
| 9 | Spare |
| 10 | Spare/Side Blind Zone Alert Module |
| 11 | Trailer Module (N/A) |
| 12 | Nav Dock |
| 13 | Heated Steering Wheel |
| 14 | Trailer Socket (N/A) |
| 15 | EVP Switch |
| 16 | Water In Fuel Sensor |
| 17 | Inside Rearview Mirror/Regulated Voltage Control |
| 18 | Spare/LPG Module Run/Crank |
| S/B Fuses | |
| 1 | Driver Power Seat Switch/Memory Module |
| 2 | Passenger Power Seat Switch |
| 3 | Trailer Module (N/A) |
| 4 | A/C-D/C Inverter |
| 5 | Battery |
| 6 | Headlamp Washer |
| 7 | Spare |
| 8 | Spare |
| 9 | Spare |
| Relays | |
| 1 | Ignition Relay |
| 2 | Run Relay |
