Buick Verano 2015 Fuse Box Info
Fuse box location:

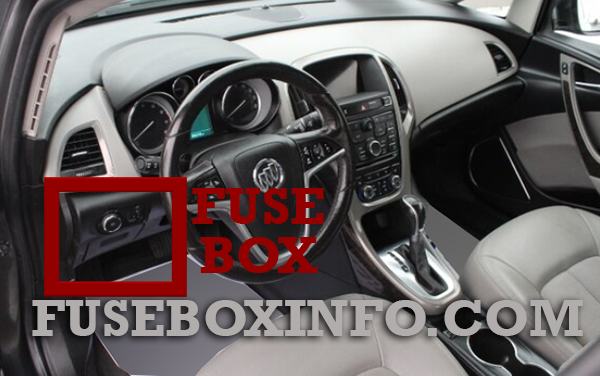

The instrument panel fuse box is on the underside of the driver side instrument panel.

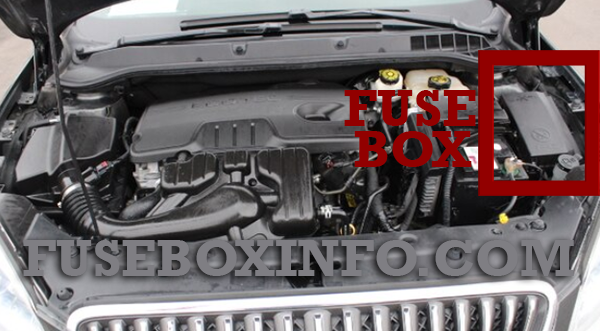

Engine compartment fuse box:

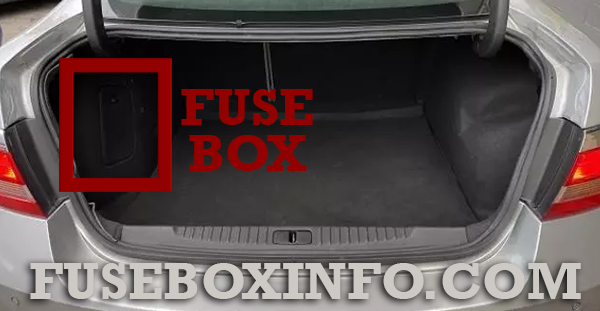

Luggage compartment fuse box:
Fuse Box Diagram | Layout

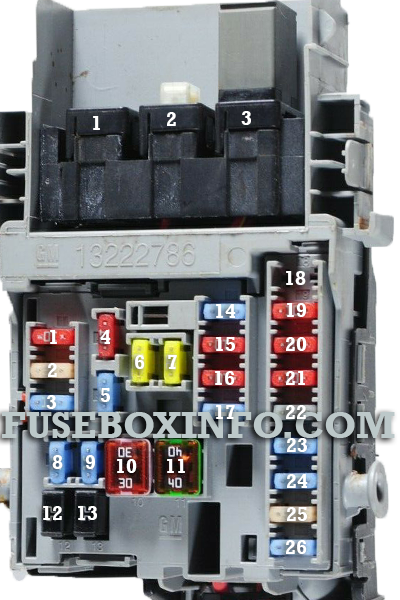

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 2A | Steering Wheel Switches |
| 2 | 20A | Body Control Module |
| 3 | 20A | Body Control Module |
| 4 | 20A | Infotainment System |
| 5 | 10A | Information Display/ Parking Assist |
| 6 | 20A | Cigar Lighter |
| 7 | 20A | Power Outlet |
| 8 | 30A | Body Control Module |
| 9 | 30A | Body Control Module |
| 10 | 30A | Body Control Module |
| 11 | 40A | Interior Fan |
| 12 | 25A | Driver Power Seat |
| 13 | - | Not used |
| 14 | 7.5A | Diagnostic Connector |
| 15 | 10A | Airbag |
| 16 | 10A | Central Locking System/ Tailgate |
| 17 | 10A | Air Conditioning System |
| 18 | 30A | Infotainment System |
| 19 | 30A | Body Control Module |
| 20 | 5A | Passenger Power Seat |
| 21 | 7.5A | Instrument Cluster |
| 22 | 2A/5A | Ignition/ Electronic Key System |
| 23 | 20A | Body Control Module |
| 24 | 20A | Body Control Module |
| 25 | - | Not used |
| 26 | - | Not used |
| Relays | ||
| 1 | Trunk Open | |
| 2 | Door Security | |
| 3 | Power Outlet |

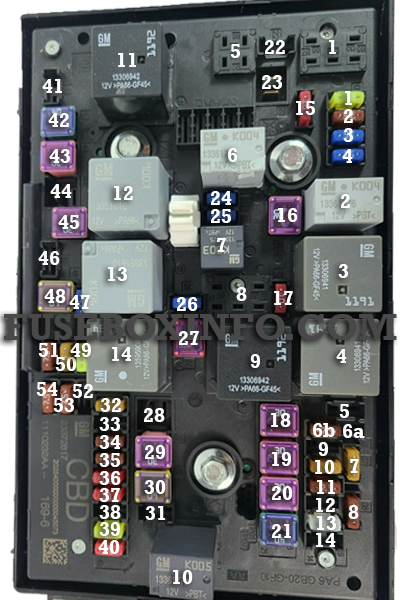

Engine compartment fuse box:
| Fuse/Relay N° | Functions | |
| Mini Fuses | ||
| 1 | 20A | Engine Control Module |
| 2 | 7.5A | Oxygen Sensor/Purge Solenoid |
| 3 | 15A | Ignition Coils/ Injectors |
| 4 | 15A | Spare |
| 5 | - | Empty |
| 6a | - | Empty |
| 6b | 7.5A | Mirror Defogger |
| 7 | 5A | Powertrain Cooling |
| 8 | 7.5A | Mass Air Flow Sensor/ Pre O2 Sensor |
| 9 | - | Empty |
| 10 | 5A | Battery Potential Signal |
| 11 | 7.5A | Spare |
| 12 | - | Empty |
| 13 | 25A | Antilock Brake System Valves |
| 14 | - | Empty |
| 15 | 10A | Engine Control Module |
| 17 | 10A | Transmission Control Module |
| 22 | - | Empty |
| 24 | 15A | Right High-Beam Headlamp |
| 25 | 15A | Left High-Beam Headlamp |
| 26 | 15A | Front Fog Lamps |
| 31 | - | Empty |
| 32 | 5A | Airbag |
| 33 | - | Empty |
| 34 | 7.5A | Spare |
| 35 | 7.5A | Door Switch Supply/Left Power Window |
| 36 | 10A | Air Conditioning Compressor Clutch |
| 37 | 10A | Canister Vent |
| 38 | - | Empty |
| 39 | 20A | Fuel System Control Module |
| 40 | 10A | Front Windshield Washer |
| 41 | - | Empty |
| 46 | - | Empty |
| 47 | 15A | Horn |
| 49 | 20A | Fuel Pump |
| 50 | - | Empty |
| 51 | 7.5A | Inside Rear View Mirror |
| 52 | - | Empty |
| 53 | 7.5A | Ignition Engine Control Module/ Transmission Control Module |
| 54 | 7.5A | Instrument Cluster/Fuel System Control Module/ Heater, Ventilation, and Air Conditioning Run/Crank |
| J-Case Fuses | ||
| 16 | 30A | Starter Control |
| 18 | 30A | Rear Window Defogger |
| 19 | 30A | Front Power Window |
| 20 | 30A | Rear Power Window |
| 21 | 40A | Rear Electrical Center |
| 23 | - | Empty |
| 27 | 50A | Spare |
| 28 | - | Empty |
| 29 | 30A | Electric Parking Brake |
| 30 | 60A | Antilock Brake System Pump |
| 42 | 40A | Engine Cooling Fan (RPO LEA) |
| 43 | 30A | Front Wipers |
| 44 | - | Empty |
| 45 | 30A | Engine Cooling Fan (RPO LEA) |
| 48 | 60A | Engine Cooling Fan |
| Relays | ||
| 1 | Empty | |
| 2 | Starter | |
| 3 | Engine Control Powertrain | |
| 4 | Rear Window Defogger | |
| 5 | Empty | |
| 6 | High-Beam Headlamps | |
| 7 | Spare | |
| 8 | Empty | |
| 9 | Spare | |
| 10 | EGR/Coolant Pump/ AIR Solenoid Valve | |
| 11 | Engine Cooling Fan (RPO LEA) | |
| 12 | Engine Cooling Fan (RPO LEA) | |
| 13 | Engine Cooling Fan (RPO LEA) | |
| 14 | Run/Crank |

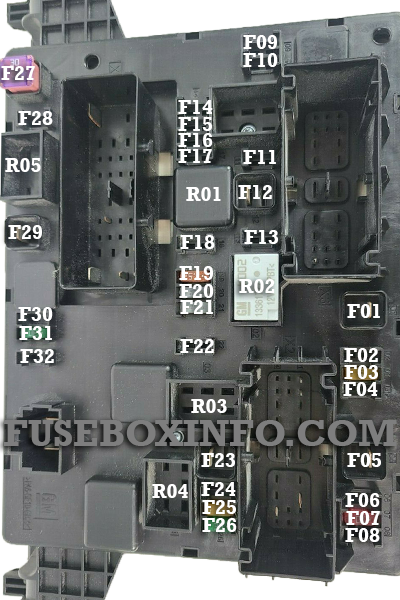

Luggage compartment fuse box:
| Fuse/Relay N° | Functions | |
| Mini Fuses | ||
| F02 | - | Empty |
| F03 | 5A | Rear Park Assist |
| F04 | - | Empty |
| F06 | - | Empty |
| F07 | 10A | Spare |
| F08 | - | Empty |
| F09 | - | Empty |
| F10 | - | Empty |
| F11 | - | Empty |
| F13 | - | Empty |
| F14 | - | Empty |
| F15 | - | Empty |
| F16 | 5A | Rear Vision Camera |
| F17 | - | Empty |
| F18 | - | Empty |
| F19 | 7.5A | Heated Steering Wheel |
| F20 | 25A | Sunroof |
| F21 | 25A | Heated Seats |
| F22 | - | Empty |
| F24 | - | Empty |
| F25 | 5A | Side Blind Zone Alert |
| F26 | 30A | Spare |
| F28 | - | Empty |
| F30 | - | Empty |
| F31 | 30A | Amplifier |
| F32 | - | Empty |
| J-Case Fuses | ||
| F01 | - | Empty |
| F05 | - | Empty |
| F12 | - | Empty |
| F23 | - | Empty |
| F27 | 30A | Passive Entry |
| F29 | - | Empty |
| Relays | ||
| R01 | Run/Crank | |
| R02 | Run | |
| R03 | Empty | |
| R04 | Empty | |
| R05 | Empty |
