Aston Martin Rapide AMR 2019 Fuse Box Info

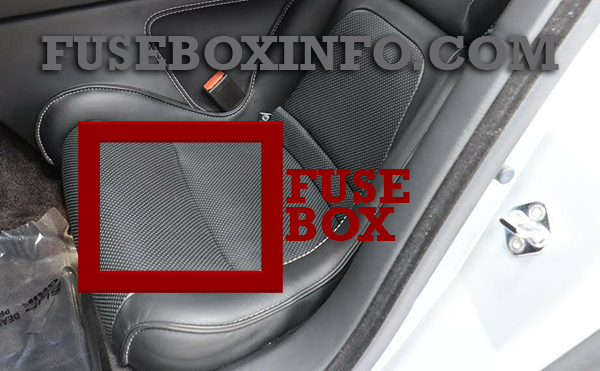

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located under rear left passenger seat.

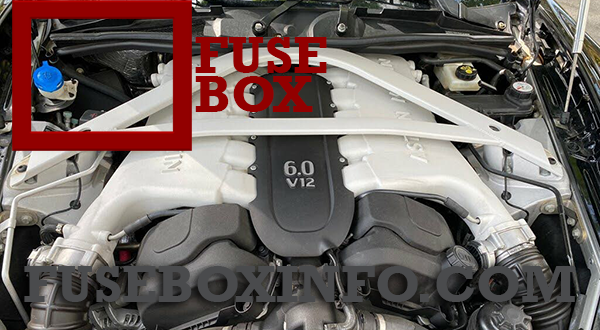

Engine compartment fuse box location:

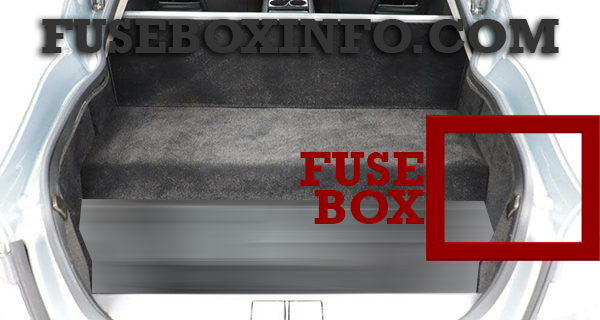

Luggage compartment fuse box location:
The fuse box is located on the right-hand side of trunk.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not Available |
| 2 | 30A | Right Side Electric Park Brake Motor |
| 3 | 15A | Exhaust Bypass Valve |
| 4 | 10A | Driver Center Stack Switch Pack |
| 5 | 30A | Left Side Electric Park Brake Motor |
| 6 | 10A | Reverse Camera |
| 7 | 5A | Electric Park Brake Module |
| 8 | - | Not Available |
| 9 | 30A | Fuel Pump Control Module |
| 10 | 25A | Left Side Rear Door Electronic Control Unit |
| 11 | 10A | Transmission Control Module |
| 12 | 20A | Adaptive Damping System |
| 13 | 10A | Rear Ambient LEDs/ Left Side Rear Interior LED/Left Side Rear Footwell LED / Left Side Rear Seat Release Switch/Rear Header LED |
| 14 | 10A | Driver Center Stack Switch Pack |
| 15 | 10A | Rear Center Stack Switch Pack / Rear LCD |
| 16 | 25A | Left Side Trunk Power Socket |
| 17 | 15A | Rear Heating / Ventilation and Air Conditioning Blower |
| 18 | 30A | Not available |
| 19 | 5A | Satellite Navigation |
| 20 | 5A | Adaptive Damping System |
| 21 | 25A | Left Side Front Door Electronic Control Unit |
| 22 | 5A | Park Distance Control |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Engine Management System Electronic Control Unit B - Permanent Power Feed |
| 2 | 10A | Engine Fuse Box Relays |
| 3 | 10A | Right Side Valved Airbox / Crank Relay / Electric Vapour Management Value |
| 4 | 20A | Engine Management System (Bank A) |
| 5 | 20A | Engine Management System (Bank B) / Left Side Valved Airbox |
| 6 | 15A | Universal Exhaust Gas Oxygen and Catalyst Monitor Sensor (Bank B) |
| 7 | 15A | Ignition Coils (Bank B) |
| 8 | 10A | Variable Valve Timing (Bank B) |
| 9 | 20A | Fuel Injectors (Bank B) |
| 10 | 10A | Air Conditioning Compressor Clutch |
| 11 | 15A | Dual Horn |
| 12 | 10A | Engine Management System Electronic Control Unit A Permanent Power Feed |
| 13 | 20A | Fuel Injectors (Bank A) |
| 14 | 10A | Variable Valve Timing (Bank A) |
| 15 | 25A | Starter Motor |
| 16 | 15A | Ignition Coils (Bank A) |
| 17 | 5A | Not Available |
| 18 | 15A | Universal Exhaust Gas Oxygen and Catalyst Monitor Sensor (Bank A) |
| 19 | 30A | Not Available |
| 20 | 30A | Not Available |
| 21 | 30A | Not available |
| 22 | 5A | Mass Air Flow Sensor (Bank A), Oil Level/Temperature Sensor |
| 23 | - | Not Available |
| 24 | 5A | Not available |
| 25 | 5A | Mass Air Flow Sensor B, Engine Coolant Level Sensor |
| 26 | 20A | Headlamp Wash Pump |
| 27 | 40A | Anti-lock Braking System Module |
| 28 | 10A | Vehicle Key Reader / Steering Angle Sensor, Fuel Tank Leakage Diagnostic Pump / Anti-lock Braking System Module / Electronic Steering Column Lock / Brake Pedal Switch |
| 29 | 20A | Anti-lock Braking System Module |
| 30 | 5A | Anti-lock Braking System Module |
| 31 | 40A | Engine Fuse Box Relays |
| 32 | 30A | Wiper Motor (Slow) |
| 33 | 30A | Wiper Motor (Fast) |
| 34 | 15A | Not Available |
| 35 | 80A | Fan Control Module (x2) |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not available |
| 2 | 20A | Right Side Trunk Power Socket |
| 3 | 30A | Heated Rear Window |
| 4 | 10A | Rear Seat Entertainment Headphones |
| 5 | 30A | Rear Seat Entertainment Module |
| 6 | 5A | B&O Amplifier |
| 7 | - | Not Available |
| 8 | 10A | Left Side Rear Seat Release |
| 9 | 10A | Right Side Rear Seat Release |
| 10 | 25A | Right Side Rear Door Electronic Control Unit |
| 11 | - | Not available |
| 12 | - | Not available |
| 13 | 15A | Powered Latch Module |
| 14 | 5A | Right Seat Rear Seat Release Switch |
| 15 | 5A | Right Side Rear Interior LED / Right Side Rear Footwell LED |
| 16 | 5A | CD Changer |
| 17 | - | Not Available |
| 18 | 5A | Not Available |
| 19 | 5A | Digital Tuner |
| 20 | 15A | Right Side Rear Seat Electronic Control Unit |
| 21 | 25A | Right Side Front Door Electronic Control Unit |
| 22 | 15A | Left Side Rear Seat Electronic Control Unit |
