Aston Martin DB9 2013 Fuse Box Info

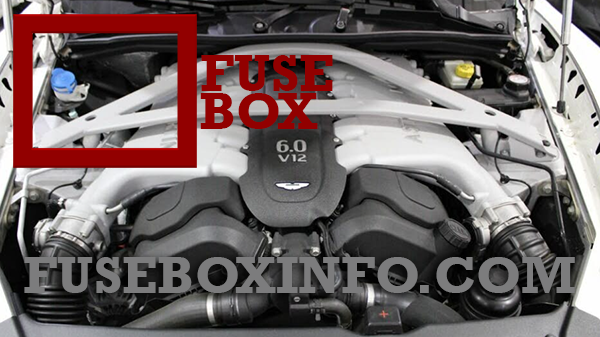

Engine compartment fuse box location:

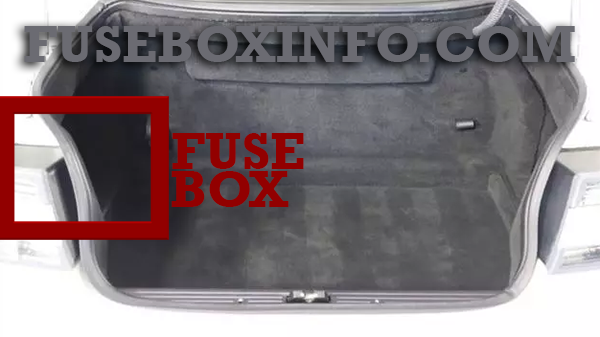

Luggage compartment fuse box location:
The fuse box is located on the left-hand side of trunk.
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Keep alive power (PCM B) |
| 2 | 10A | Not available |
| 3 | 10A | Not available |
| 4 | 20A | Engine management (PCM A) |
| 5 | 20A | Engine management (PCM B) |
| 6 | 15A | Exhaust gas oxygen (HEGO) and catalyst sensors (Bank B) |
| 7 | 15A | Ignition coils 7-12 (Bank B) |
| 8 | 10A | Variable Valve Timing (Bank B) |
| 9 | 20A | Fuel injectors 7-12 (Bank B) |
| 10 | 10A | Air conditioner compressor clutch |
| 11 | 15A | Horn |
| 12 | 10A | Keep alive power (PCM A) |
| 13 | 20A | Fuel injectors 1-6 (Bank A) / Oil level sensor |
| 14 | 10A | Variable Valve Timing (Bank A) |
| 15 | 25A | Starter motor solenoid |
| 16 | 15A | Ignition coils 1-6 (Bank A) |
| 17 | 5A | Not available |
| 18 | 15A | Exhaust gas oxygen (HEGO) and catalyst sensors (Bank A) |
| 19 | 30A | ABS module |
| 20 | 30A | ABS module |
| 21 | 30A | Not available |
| 22 | 5A | Mass air flow sensor (Bank B) / Coolant level sensor |
| 23 | - | Blank |
| 24 | 5A | Not available |
| 25 | 5A | Mass air flow sensor (Bank A) / Vapour management valve |
| 26 | 20A | Headlamp wash pump |
| 27 | 40A | Not available |
| 28 | 10A | ABS Module / Steering angle sensor / Vehicle key reader / Fuel tank diagnostic |
| 29 | 20A | Not available |
| 30 | 5A | Not available |
| 31 | 30A | Not available |
| 32 | 30A | Windshield wiper motor (slow) |
| 33 | 30A | Windshield wiper motor (Fast) |
| 34 | 15A | Steering column lock |
| 35 | 80A | Cooling fan module |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Tonneau lid latch motors |
| 2 | 20A | Rear power outlet |
| 3 | 30A | Heated rear window |
| 4 | 20A | Rear left quarter glass motor |
| 5 | 30A | Audio amplifier |
| 6 | 20A | Rear right quarter glass motor |
| 7 | 5A | Convertible roof module |
| 8 | 30A | Not available |
| 9 | 30A | Fuel pump module |
| 10 | 30A | Convertible roof module |
| 11 | 10A | Satellite navigation / Satellite radio (when installed) |
| 12 | 20A | Automatic transmission module |
| 13 | 10A | Automatic transmission module |
| 14 | 5A | Parking assist / Adaptive damping |
| 15 | 5A | Exhaust bypass |
| 16 | 30A | Convertible roof pump |
| 17 | 5A | Trunk lamps / Trunk power socket illumination |
| 18 | 30A | Audio amplifier |
| 19 | 5A | Not available |
| 20 | 20A | Cubby box power socket |
| 21 | 30A | Tonneau lid latch motors |
| 22 | 20A | Not available |
