Aston Martin DB9 2011 Fuse Box Info
Passenger compartment fuse box location:

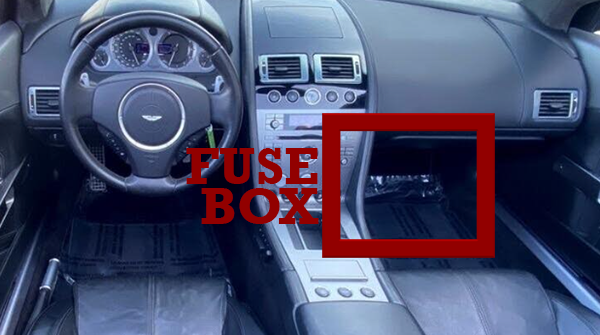

The fuse box in the passenger compartment is located behind the passenger footwell, under the glove box.

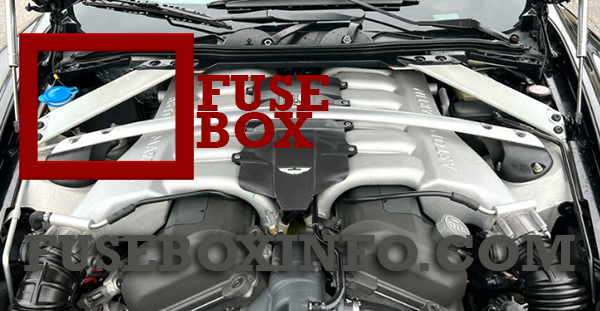

Engine compartment fuse box location:
Luggage compartment fuse box location:
The fuse box is located on the left-hand side of trunk.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 43 | 10A | Multi media module display / Media player / Integrated audio module |
| 44 | 10A | Airbag module |
| 45 | 15A | Not available |
| 46 | 5A | Deployable Rollbars (Volante) / Convertible roof switch (Volante) / Driver Information / Master lamp switch / Glovebox solenoid / Battery OFF switch / Master locking switch / Centre console module |
| 47 | 5A | Glovebox switch / Fuel flap release / Garage door opener / Interior lamps (front / footwell / rear) / Trunk lamps / Seat switches / Trunk accessory socket illumination |
| 48 | 15A | Front windshield washer relay and pump |
| 49 | 10A | Airbag module / Power seats |
| 50 | 5A | Not available |
| 51 | 10A | Dynamic stability control / Diagnostic inputs / Parking aid module / Adaptive damping |
| 52 | 5A | Not available |
| 53 | 10A | Headlamp levelling module / Power steering module |
| 54 | 10A | Engine fuse box, Trunk fuse box / Tire pressure sensing |
| 55 | 20A | Accessory socket / Cigar Lighter |
| 56 | 10A | Centre console module / Sounder module / Hands-free phone module |
| 57 | 15A | Diagnostic connectors / Brake pedal switch |
| 58 | 10A | High beam (RH) / Headlamp Levelling module |
| 59 | 10A | High beam (LH) |
| 60 | 15A | Drivers seat heater |
| 61 | 15A | Passenger seat heater |
| 62 | 20A | A/C module |
| 63 | 20A | Adaptive damping |
| 64 | 5A | Global positioning system module |
| 65 | 5A | Multi media module / Multi media display / Integrated audio module / AM/FM antenna amplifiers |
| 66 | 10A | Auxiliary socket module |
| 67 | 15A | Spare |
| 68 | 5A | Not available |
| 69 | 5A | Convertible roof module (Volante) |
| 70 | 15A | Not available |
| 71 | - | Not available |
| 72 | - | Not available |
| 73 | 5A | Not available |
| 74 | 15A | Fuel pump |
| 75 | - | Not available |
| 76 | - | Not available |
| 77 | 15A | Trunk power socket |
| 78 | - | Not available |
| 79 | 5A | Reversing Lamps / Parking Aid Module / Garage Door Opener |
| 80 | 5A | Not available |
| 81 | 20A | Ignition Control |
| 82 | 25A | Passenger door module |
| 83 | 25A | Driver door module |
| 84 | 30A | Passenger seat power and switch pack |
| 85 | 30A | Driver seat power and switch pack |
| 86 | 5A | Ignition Control |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Keep alive power PCM (Bank B) |
| 2 | 10A | Clock |
| 3 | 10A | Not available |
| 4 | 20A | Engine management (PCM A) |
| 5 | 20A | Engine management (PCM B) |
| 6 | 15A | Exhaust Gas Oxygen (HEGO) sensors / Catalyst monitor sensor (CMS) (Bank B) |
| 7 | 15A | Coils 7-12 / Suppressor solenoids (Bank B) |
| 8 | 10A | Engine coolant level sensor |
| 9 | 20A | Injectors 7-12 / Mass air flow sensor (MAF) (Bank B) |
| 10 | 10A | A/C clutch |
| 11 | 15A | Horn |
| 12 | 10A | Keep alive power PCM (Bank A) |
| 13 | 20A | Injectors 1-6 / Mass air flow sensor (MAF) (Bank A) |
| 14 | 10A | Vapour Management valve (VMV) (Bank A) |
| 15 | 25A | Starter motor solenoid |
| 16 | 15A | Coils 1-6 / Suppressor solenoids (Bank A) |
| 17 | 5A | Glove box release solenoid |
| 18 | 15A | Exhaust Gas Oxygen (HEGO) sensors / Catalyst monitor sensor (CMS) (Bank A) |
| 19 | 30A | ABS module / Battery feed |
| 20 | 30A | ABS module / Battery feed |
| 21 | 30A | Not available |
| 22 | 5A | Not available |
| 23 | - | Not available |
| 24 | 5A | Not available |
| 25 | 5A | Not available |
| 26 | 20A | Headlamp wash pump |
| 27 | 25A | Not available |
| 28 | 10A | ABS module, Steering angle sensor / Vehicle key reader |
| 29 | 25A | Not available |
| 30 | 5A | Not available |
| 31 | 30A | Not available |
| 32 | 30A | Wiper motor (slow) |
| 33 | 30A | Wiper motor (fast) |
| 34 | 20A | Electric steering column lock |
| 35 | 60A | Cooling fan module |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Convertible deck lid lock motors (Volante) |
| 2 | 20A | Not available |
| 3 | 30A | Heated rear windshield |
| 4 | 20A | Rear quarter glass motor LH (Volante) |
| 5 | 30A | Audio amplifier |
| 6 | 20A | Rear quarter glass motor RH (Volante) |
| 7 | 5A | Not available |
| 8 | 30A | Fuel pump module (Bank B) |
| 9 | 30A | Fuel pump module (Bank A) |
| 10 | 30A | Convertible roof module (Volante) |
| 11 | 20A | Not available |
| 12 | 20A | Transmission control module (Automatic) |
| 13 | 10A | Not available |
| 14 | 5A | Not available |
| 15 | 5A | Transmission control module (Automatic) |
| 16 | 30A | Convertible roof pump (Volante) |
| 17 | 5A | Trunk lamps / Trunk power socket illumination |
| 18 | 30A | Audio amplifier |
| 19 | 5A | Not available |
| 20 | 10A | Not available |
| 21 | 30A | Convertible deck lid lock motors (Volante) |
| 22 | 20A | Exhaust by-pass valve and vacuum pump |
