Aston Martin Cygnet 2012 Fuse Box

Aston Martin Hits: 79

Aston Martin Cygnet 2012 Fuse Box Info

Passenger compartment fuse box location:

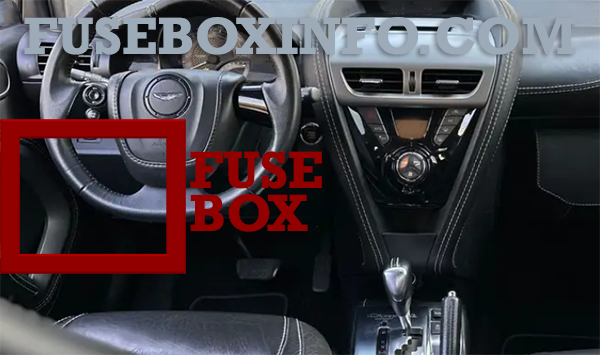

The fuse box is located at the left side of the steering column, under the dashboard, driver's side front footwell.

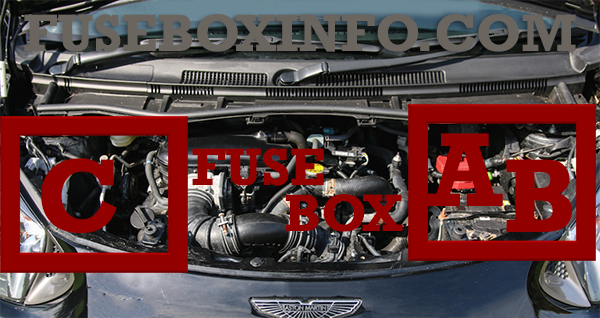

Engine compartment fuse box location:

Fuse Box Diagram | Layout

Passenger compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	7.5A	Vehicle stability control system, shift lock control system, electric power steering, automatic headlamp, main body ECU, Stop & Start system
2	10A	Electric cooling fan(s), charging system, emergency flashers, front passenger’s seat belt reminder lamp, back-up lamps, multiport fuel injection system/sequential multiport fuel injection system, windshield wiper ECU, auto anti-glare inside rear view mirror
3	10A	Air conditioning system, wiper deicer, rear window demist
4	10A	Windscreen washer
5	10A	Rear window wiper
6	25A	Windscreen wipers
7	10A	Windshield washer
8	7.5A	On-board diagnosis system
9	7.5A	Rear fog lamp
10	10A	Manual headlamp levelling dial, front position lamps, tail lamps, license plate lamps
11	20A	Power windows
12	15A	Power door lock system, main body ECU
13	30A	Power windows
14	15A	Power outlet
15	5A	Outside rear view mirrors, audio system, shift lock control system, main body ECU, Stop & Start system
16	5A	Meter, power management ECU
17	10A	Front position lamps, tail lamps, license plate lamps, rear fog lamp, front fog lamps, manual headlamp leveling dial, multiport fuel injection system/sequential multiport fuel injection system, instrument cluster, windshield wiper ECU
18	15A	Front fog lamps
19	7.5A	ACC, starting system
20	10A	Vehicle stability control system, power management ECU, shift lock control system, stop lamps, multiport fuel injection system/ sequential multiport fuel injection system
21	10A	Power door lock system
22	15A	Seat heaters

Engine compartment fuse box (Fuse box A):

Fuse/Relay N°	Rating	Functions
1	120A	Charging system, RDI, ABS NO.1, HTR-B, ACC, CIG, GAUGE, ECUIG NO.1, HTR-IG, WIPER WASHER, AM1, DOOR NO.1, STOP, DOOR NO.2, OBD, RR FOG, FR FOG, DEF, TAIL NO.2, EPS, PTC NO.1, PTC NO.2, PTC NO.3, DEICER, D/L NO.1, D/L NO.2, PANEL
2	80A	EFI MAIN, EFI NO.1, HORN, AM2 NO.1, AM2 NO.2, DOME, ECU-B NO.2, TURN&HAZ, H-LP LO, H-LP LH LO, ECU-B NO.1, D/C CUT, ETCS, H-LP HI, IG2, IGN

Engine compartment fuse box (Fuse box B):

Fuse/Relay N°	Rating	Functions
1	30A	ECU-B NO.1, DOME
2	7.5A	Smart entry & start system
3	10A	Turn signal lamps, emergency flashers
4	10A	Electronic throttle control system
5	5A	Meter, double locking system, power windows, air conditioning system
6	7.5A	Power management ECU, Stop & Start system
7	20A	Headlamp (low beam)
8	40A	Stop & Start system
9	30A	Spare fuse
10	20A	Spare fuse
11	5A	Spare fuse
12	30A	Starting system
13	7.5A	Headlamp (high beam)
14	20A	Steering lock system
15	-	Not used
16	15A	Interior lamp, audio system
17	7.5A	Main body ECU, power door lock system, smart entry & start system, Stop & Start system
18	7.5A	Outside rear view mirror demisters
19	7.5A	Power management ECU
20	30A	Rear window demist
21	50A	Electric power steering
22	30A	RDI FAN
23	50A	Anti-lock brake system
24	-	Not used
25	40A	HTR, BLR
26	30A	Anti-lock brake system
27	10A	Horn
28	20A	Multiport fuel injection system/sequential multiport fuel injection system, EFI NO.1, Fuel pump
29	-	Not used
30	15A	Injection, igniter
31	10A	Smart entry & start system, SRS airbag system, meter
32	10A	Multiport fuel injection system/ sequential multiport fuel injection system

Engine compartment fuse box (Fuse box C):
