Aston Martin Rapide 2012 Fuse Box Info
Passenger compartment fuse box location:

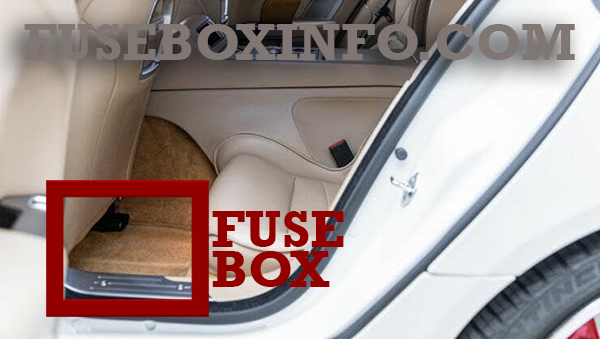

The fuse box in the passenger compartment is located under rear left passenger footwell.
Engine compartment fuse box location:
Luggage compartment fuse box location:

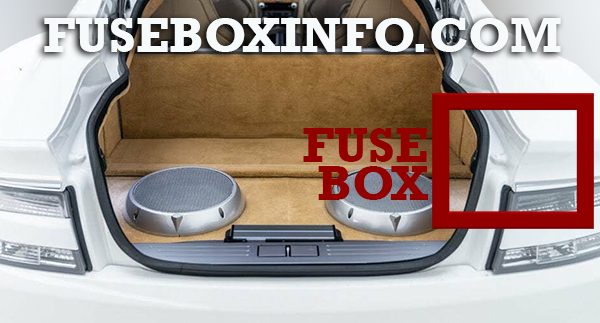

The fuse box is located on the right-hand side of trunk.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Aston Martin tracker keep alive power |
| 2 | 30A | Electric park brake module (+VE motor (RH) |
| 3 | 15A | Vacuum pump / Exhaust bypass valve |
| 4 | 10A | Front centre console switches |
| 5 | 30A | Electric park brake module (+VE motor (LH) |
| 6 | 10A | Rear centre console switches |
| 7 | 5A | Electric park brake module |
| 8 | 30A | FPDM B module |
| 9 | 30A | FPDM A module |
| 10 | 25A | Rear left door module |
| 11 | 10A | Rear accessory socket |
| 12 | 20A | Adaptive damping module |
| 13 | 10A | Rear left footwell LED / Rear accessory socket illumination / Front and rear left trunk LEDs / Rear left seat back release switch / Front left and right footwell LEDs / Rear left interior LED / Rear left and right header LEDs / Front header LED |
| 14 | 10A | Front centre console switches |
| 15 | 10A | Centre stack switches |
| 16 | 25A | Rear left accessory socket |
| 17 | 15A | Rear blower speed regulator |
| 18 | 30A | Not available |
| 19 | 5A | Multi media module |
| 20 | 5A | Adaptive damping module |
| 21 | 25A | Front left door module |
| 22 | 5A | Parking assist module |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | ECU B keep alive power |
| 2 | 10A | Not available |
| 3 | 10A | Not available |
| 4 | 20A | ECU A |
| 5 | 20A | ECU B |
| 6 | 15A | Heated oxygen and catalyst sensors (front and rear, bank B) |
| 7 | 15A | Ignition coils 7 to 12 (bank B) |
| 8 | 10A | Engine coolant sensor |
| 9 | 20A | Injectors 7 to 12 (bank B) / MAF sensor |
| 10 | 10A | Air conditioner compressor clutch |
| 11 | 15A | Horns |
| 12 | 10A | ECU A keep alive power |
| 13 | 20A | Injectors 1 to 6 (bank A) / MAF sensor / Oil level sensor |
| 14 | 10A | Vapor management valve |
| 15 | 25A | Starter motor solenoid |
| 16 | 15A | Ignition coils 1 to 6 (bank A) |
| 17 | 15A | Not available |
| 18 | 15A | Heated oxygen and catalyst sensors (front and rear, bank A) |
| 19 | 40A | ABS Module |
| 20 | 20A | ABS Module |
| 21 | 30A | Not available |
| 22 | 5A | Not available |
| 23 | - | - |
| 24 | 5A | Not available |
| 25 | 5A | Not available |
| 26 | 20A | Headlamp wash pump |
| 27 | 25A | Not available |
| 28 | 10A | ABS Module / Steering angle sensor / Vehicle key reader |
| 29 | 25A | Not available |
| 30 | 5A | ABS Module |
| 31 | 30A | Not available |
| 32 | 30A | Windscreen motor (slow) |
| 33 | 30A | Windscreen motor (fast) |
| 34 | 15A | Eclectic steering column lock |
| 35 | 80A | Cooling fan |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not available |
| 2 | 20A | Automatic transmission module |
| 3 | 30A | Heated rear windscreen |
| 4 | 20A | Wireless headphones transmitter and module |
| 5 | 30A | Audio amplifier / Audio power |
| 6 | 5A | Audio amplifier / MOST (wake up) |
| 7 | 5A | Rear seat entertainment module |
| 8 | 10A | Rear left seat back release |
| 9 | 10A | Rear right seat back release |
| 10 | 25A | Rear right door module |
| 11 | 5A | Not available |
| 12 | 10A | Not available |
| 13 | 15A | Not available |
| 14 | 5A | Rear right interior lamp / Front right and left trunk lamp / Rear accessory socket illumination / Rear right seat back release switch |
| 15 | 5A | Rear footwell lamp / Trunk lamp |
| 16 | 25A | Rear accessory socket |
| 17 | 5A | Battery disconnect switch |
| 18 | 30A | Audio amplifier / MOST [B+] |
| 19 | 5A | DVD changer module / Satellite radio tuner |
| 20 | 15A | Rear right seat heater |
| 21 | 25A | Front right door module |
