Aston Martin Rapide S 2015 Fuse Box Info

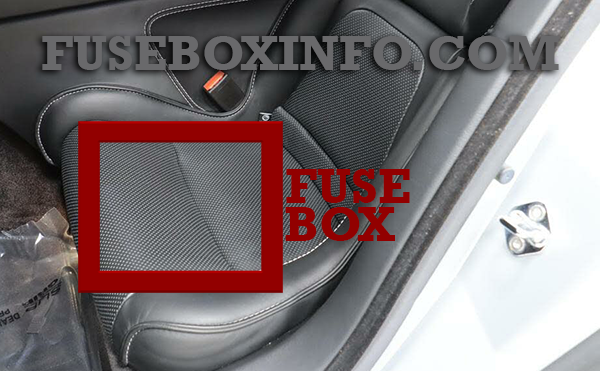

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located under rear left passenger seat.

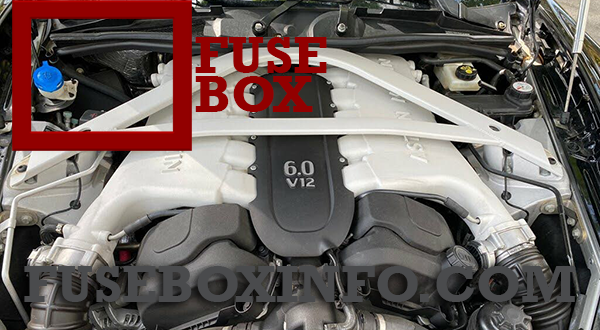

Engine compartment fuse box location:

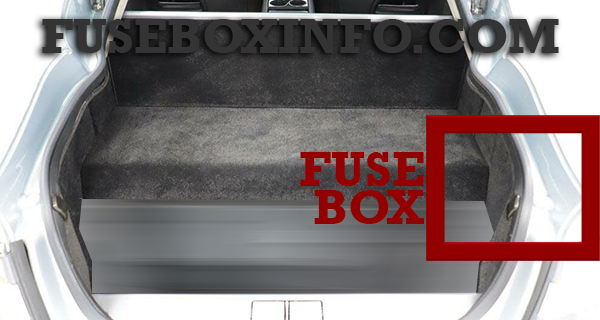

Luggage compartment fuse box location:
The fuse box is located on the right-hand side of trunk.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not Available |
| 2 | 30A | Electric Park Brake (Right Hand Motor) |
| 3 | 15A | Exhaust Bypass Valve |
| 4 | 10A | Driver Center Stack Switch Pack |
| 5 | 30A | Electric Park Brake (Left Hand Motor) |
| 6 | 10A | Rear Center Stack Switch Pack / Rear LCD / Camera |
| 7 | 5A | Electric Park Brake |
| 8 | - | Not Available |
| 9 | 30A | Fuel Pump Control Module |
| 10 | 25A | Rear Left Hand Door Electronic Control Unit |
| 11 | 10A | Transmission Control Module |
| 12 | 20A | Adaptive Damping System |
| 13 | 10A | Interior Lamps (All Left Hand Front and Rear) |
| 14 | 10A | Driver Center Stack Switch Pack |
| 15 | 10A | Rear Center Stack Switch Pack / Rear LCD |
| 16 | 25A | Left Hand Power Socket Trunk |
| 17 | 15A | Rear Heating / Ventilation and Air Conditioning Blower |
| 18 | 30A | Not available |
| 19 | 5A | Satellite Navigation |
| 20 | 5A | Adaptive Damping System |
| 21 | 25A | Left Hand Front Door Electronic Control Unit |
| 22 | 5A | Park Distance Control |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Permanent Power Feed Electronic Control Unit B |
| 2 | 10A | Not available |
| 3 | 10A | Valved Air Boxes |
| 4 | 20A | Electronic Control Unit A |
| 5 | 20A | Electronic Control Unit B |
| 6 | 15A | Heated Oxygen and Catalyst Sensors (Front and Rear, Bank B) |
| 7 | 15A | Ignition Coils 7 to 12 (Bank B) |
| 8 | 10A | Oil Control Valves (Bank B) |
| 9 | 20A | Injectors 7 to 12 (Bank B) / Mass Airflow Sensor |
| 10 | 10A | Air Conditioner Compressor Clutch |
| 11 | 15A | Horns |
| 12 | 10A | Permanent Power Feed Electronic Control Unit A |
| 13 | 20A | Injectors 1 to 6 (Bank A) / Oil Level Sensor |
| 14 | 10A | Oil Control Valves (Bank A) |
| 15 | 25A | Starter Motor Solenoid |
| 16 | 15A | Ignition Coils 1 to 6 (Bank A) |
| 17 | 5A | Valved Air Boxes |
| 18 | 15A | Heated Oxygen and Catalyst Sensors (Front and Rear, Bank A) |
| 19 | 30A | Not Available |
| 20 | 30A | Not Available |
| 21 | 30A | Not available |
| 22 | 5A | ECL Sensor / Mass Airflow Sensor (Bank B) |
| 23 | - | Not Available |
| 24 | 5A | Not available |
| 25 | 5A | Mass Airflow Sensor (Bank A) / Electric Vapour Management Valve |
| 26 | 20A | Headlamp Wash Pump |
| 27 | 40A | Anti-lock Braking System Module |
| 28 | 10A | Anti-lock Braking System Module / Steering Angle Sensor / Vehicle |
| 29 | 20A | Anti-lock Braking System Module |
| 30 | 5A | Anti-lock Braking System Module |
| 31 | 30A | Not available |
| 32 | 30A | Windshield Motor (Slow) |
| 33 | 30A | Windshield Motor (Fast) |
| 34 | 15A | Electric Steering Column Lock |
| 35 | 80A | Cooling Fan |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not available |
| 2 | 20A | Right Hand Trunk Power Socket |
| 3 | 30A | Heated Rear Window |
| 4 | 10A | Rear Seat Entertainment Headphones |
| 5 | 30A | Not Available |
| 6 | 5A | B&O Amplifier |
| 7 | - | Not Available |
| 8 | 10A | Left Hand Rear Seat Release |
| 9 | 10A | Right Hand Rear Seat Release |
| 10 | 25A | Right Hand Rear Door Electronic Control Unit |
| 11 | - | Not available |
| 12 | - | Not available |
| 13 | 15A | Powered Latch Module |
| 14 | 5A | Right Rear Seat Release Software |
| 15 | 5A | Lamps (Right Hand Rear Foot Well and Right Hand Interior) |
| 16 | 25A | Not Available |
| 17 | - | Not Available |
| 18 | 30A | Not Available |
| 19 | 5A | Digital Tuner / Rear Seat Entertainment DVD Changer |
| 20 | 15A | Right Hand Rear Seat Electronic Control Unit |
| 21 | 25A | Right Hand Front Door Electronic Control Unit |
| 22 | 15A | Left Hand Rear Seat Electronic Control Unit |
