Ducati Monster 2023 Fuse Box Info

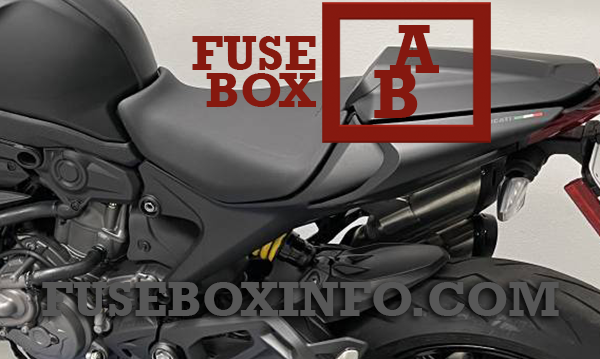

Fuse box location:
Fuse Box Diagram | Layout
Fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Key 1 (ECU / ABS / IMU |
| 2 | 15A | Key 2 (Dashboard / BBS) |
| 3 | 10A | Key 3 (Accessories) |
| 4 | 7.5A | Diagnostics |
| 5 | 10A | Fuel pump relay |
| 6 | - | - |
| 7 | - | - |
| 8 | 10A | Spare |
| 9 | 20A | Spare |
| 10 | 15A | Spare |
Fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | El. loads relay |
| 2 | 7.5A | Starter relay |
| 3 | 20A | Dashboard |
| 4 | 10A | BBS |
| 5 | 20A | ABS |
| 6 | 25A | ABS |
| 7 | - | - |
| 8 | 10A | Spare |
| 9 | 20A | Spare |
| 10 | 15A | Spare |
Main fuse is located on solenoid starter.
