Ducati Diavel 1260 Lamborghini 2021 Fuse Box Info
Fuse box location:

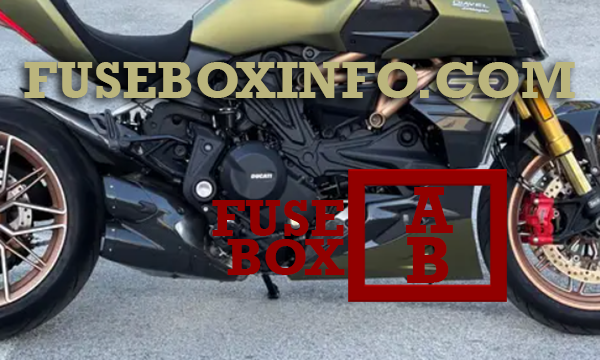

Fuses are located under the right cowling, next to the battery.
Fuse Box Diagram | Layout
Fuse box A:
Fuse/Relay N° | Rating | Functions |
1 | 5A | KEY EMS / ABS / IMU |
2 | 15A | KEY DSB / BBS |
3 | - | - |
4 | - | - |
5 | 10A | KEY Accessories |
6 | 25A | +30 Hands Free |
7 | 7.5A | +30 Diagnosis / charge |
Fuse box B:
Fuse/Relay N° | Rating | Functions |
1 | 25A | +30 EMS LOAD RELAY |
2 | 10A | +30 FUEL PUMP RELAY |
3 | 7.5A | +30 Starter RELAY |
4 | 15A | +30 Instrument panel |
5 | 10A | +30 Black Box System (BBS) |
6 | 25A | +30 ABS UBMR |
7 | 10A | +30 ABS UBVR |
Main fuse is 30 A and is located on the solenoid starter.
