Yamaha Bolt 2020 Fuse Box Info

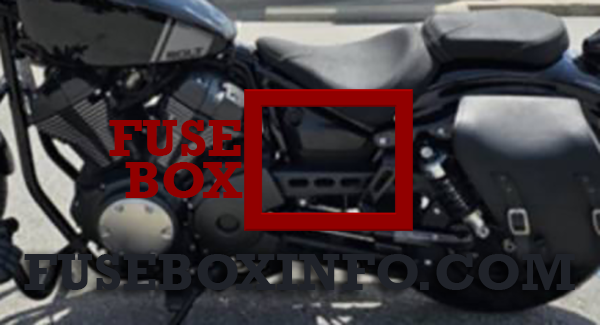

Fuse box location:
The fuse box is located under the owner’s tool box, behind panel.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Ignition fuse |
| 2 | 7.5A | Signaling system fuse |
| 3 | 7.5A | Taillight fuse |
| 4 | 7.5A | Backup fuse (for clock) |
| 5 | 20A | Headlight fuse |
| 6 | Spare fuse |
Main fuse (40A) is located near fuse box. Fuel injection system fuse (10A) and Fuel injection system spare fuse are located under starter relay cover.
