Husqvarna Svartpilen 701 2019 Fuse Box Info

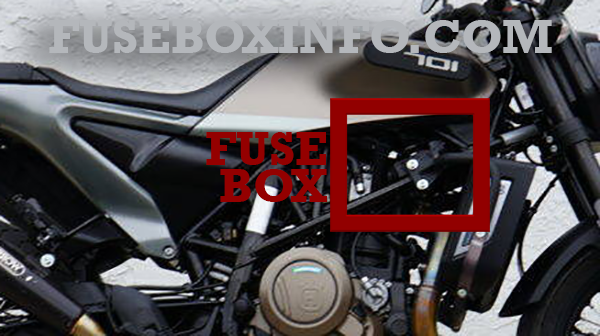

Fuse box location:
The fuse box is located on the right under the fuel tank.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Immobilizer, ignition switch, combination instrument, light relay |
| 2 | 10A | Engine electronics control unit, ignition coils, evaporate emission control system, injection valve, secondary air system, lambda sensor heater |
| 3 | 10A | Fuel pump |
| 4 | 10A | Radiator fan |
| 5 | 10A | Horn, brake light, turn signal |
| 6 | 10A | High beam, low beam, position light, tail light, license plate lamp |
| 7 | 10A | Permanent positive for auxiliary equipment (ACC1) |
| 8 | 10A | Ignition positive for auxiliary equipment (ACC2), USB socket |
| 9 | 10A | ABS control unit, diagnostics connector, combination instrument, headlight control unit |
| 10 | - | Not assigned |
| SPARE | 10A | Spare fuses |
Main fuse is located near the battery, under the front rider's seat.
Two fuses for the ABS are located under the front rider's seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
