Husqvarna Svartpilen 250 2021 Fuse Box

Husqvarna Svartpilen 250 2021 Fuse Box Info

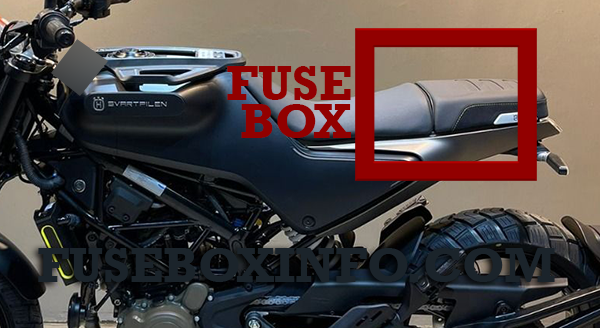

Fuse box location:

The fuse box is located under the passenger seat.



Fuse Box Diagram | Layout

Fuse/Relay N° Rating Functions
1 - Not assigned
2 10A Combination instrument
3 10A Power relay
4 15A Ignition coil, start auxiliary relay, fuel pump, horn
5 10A Radiator fan
6 15A Brake light, turn signal, high beam, low beam, position light, tail light, license plate lamp
7 10A ABS control unit, combination instrument, diagnostics connector
8 10A Emergency off
9 10A Permanent positive for auxiliary equipment (ACC1 front)
10 10A Ignition positive for auxiliary equipment (ACC2 front, ACC2 rear)
SPARE 10/15/30A Spare fuses

Main fuse is located near the fuse box, under protection cap.

Two fuses for the ABS are located under the protection cap next to the fuse box. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
