Genesis GV70 2026 Fuse Box Info

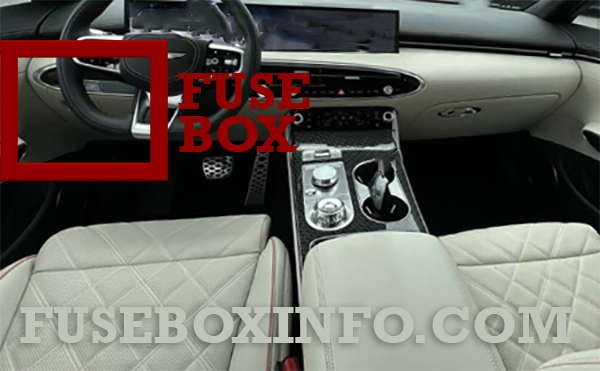

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

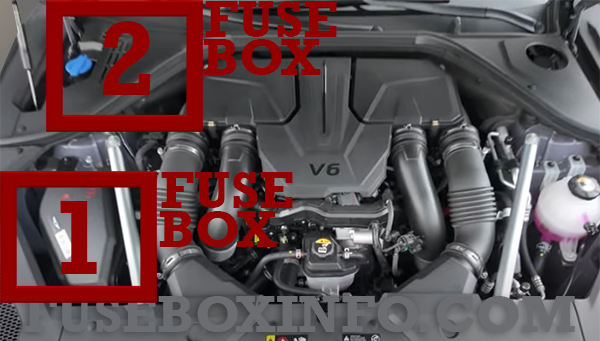

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:

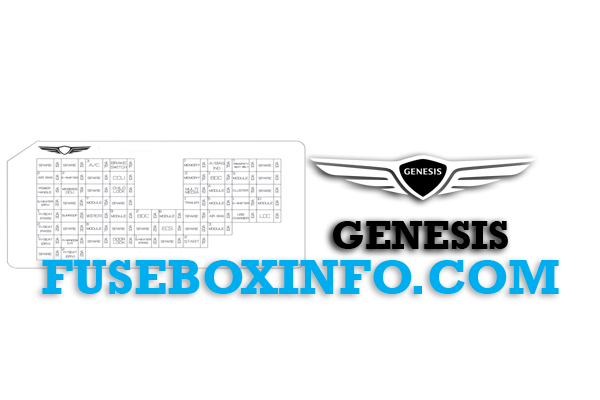

Type A

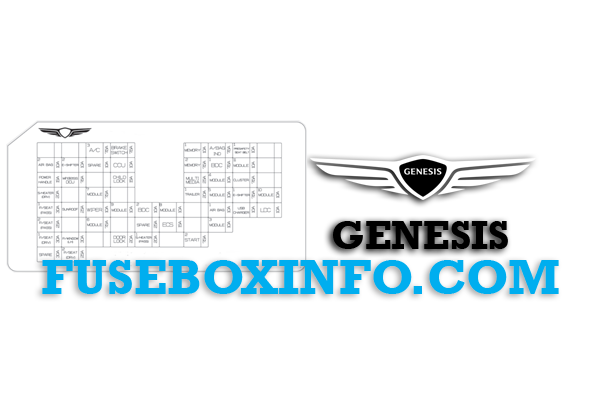

Type B
| Fuse/Relay Name | Rating | Functions |
| A/C3 | 7.5A | E/R Junction Block (RLY2,RLY3, RLY4), Front/ Rear A/C Controller, A/C Control Module, A/C PM Sensor, Incar Temperature Sensor |
| BRAKE SWITCH | 7.5A | Stop Lamp Switch, BDC |
| MEMORY1 | 10A | BDC, Console Mood Lamp Unit, Mood Lamp Unit, CDCU, Driver/Passenger Door Mood Lamp, Front Monitor, Security Indicator, ETCS Unit, Built-In Cam Unit, Smart Phone Wireless Charger, Driver/Passenger Door Mood Lamp #1/2, Rear Door Mood Lamp LH/RH #1/2,Rear Radar LH, ADAS Unit (Parking) |
| A/BAG IND | 7.5A | Overhead Console Assembly |
| PRESAFETY SEAT BELT1 |
10A | Pre-Active Seat Belt Unit |
| AIR BAG2 | 10A | SRS Control Module |
| E-SHIFTER2 | 10A | Electronic ATM Shift Lever Dia |
| CCU | 10A | CCU |
| MEMORY2 | 7.5A | Front/Rear A/C Controller, Front Console Keyboard, A/C Control Module, Head-Up Display |
| BDC1 | 7.5A | BDC, BMS Control Module |
| MODULE11 | 10A | CCU, DCU, Stop Lamp Switch |
| POWER HANDLE |
15A | Steering Tilt & Telescopic Unit |
| wireless DCU | 7.5A | DCU |
| CHILD LOCK | 15A | Rear Door Lock Actuator LH/RH |
| MULTI MEDIA | 25A | Low DC-DC Converter, CCIC Head Unit |
| MODULE4 | 10A | Smart Phone Wireless Charger, A/C Control Module, AMP, Low DC-DC Converter, Data Link Connector, ICC Unit, Built-In Cam Unit, CCIC Head Unit, UVC Lamp Unit, Electro Chromic Mirror, Crash Pad Switch, Overhead Console, Lamp, Front/ Rear A/C Controller, Front Console Switch, Low DC-DC Converter (AMP),Driver/Passenger Seat Module |
| CLUSTER | 7.5A | Head-Up Display, Front Monitor |
| S/HEATER DRV | 20A | Driver Power Seat Module |
| MODULE7 | 7.5A | 12V Lithium Auxiliary Battery, AC Inverter, AC Inverter Outlet, Head Lamp LH/RH |
| TRAILER1 | 20A | Trailer Connector |
| MODULE5 | 10A | Driver Door Module, Multifunction Switch |
| E-SHIFTER1 | 7.5A | Electronic ATM Shift Lever Dial |
| MODULE10 | 10A | Front Monitor, CCU, Low DC-DC Converter, DCU, Built-In Cam Unit, Armrest Lamp, Electronic ATM Shift Lever Dial, CCIC Head Unit, BDC, Front Console Keyboard, Emergency Call Switch, ADAS Unit (Parking), E/R Sub Junction Block (RLY. 9), AMP, Low DC-DC Converter (AMP) |
| P/SEAT PASS1 | 30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| SUNROOF | 25A | Sunroof Control Unit (Master) |
| WIPER | 12A | Multifunction Switch, Rear Junction Block (Rear Wiper Relay) |
| MODULE9 | 12A | Data Link Connector, Steering Tilt & Telescopic Unit, Driver/ Passenger Power Outside Mirror, Driver/ Passenger Power Seat Module, Driver/ Passenger Power Seat Switch, Power Tailgate Unit, Driver Door Module, TMS |
| BDC2 | 10A | BDC, Ignition Switch, Bluetooth Unit #1 (Master), Bluetooth Unit #2 (Slave), Driver/Passenger Door Outside Handle, Rear Door Outside Handle LH/RH,UWB Antenna (Front LH/RH, Rear LH/RH) |
| MODULE8 | 10A | Multifunction Switch, Rain Sensor, ICC Unit |
| AIR BAG1 | 10A | SRS Control Module |
| USB CHARGER | 10A | Rear USB Charger |
| LDC | 10A | Front/Rear Radar LH/RH, Smart Phone Wireless Charger, Front/Rear A/C Controller, ADAS (Parking),Head-Up Display |
| P/SEAT PASS2 | 25A | Passenger Power Seat Switch, Passenger Power Seat Module |
| MODULE6 | 7.5A | BDC |
| ECS | 15A | ECS Unit |
| MODULE3 | 10A | LKAS Unit, CDCU, ECS Unit, Crash Pad Switch,Steering Tilt & Telescopic Unit, Rear Spoiler Control Module, Rear Radar LH/RH, ADAS Unit (Driving/Parking),ELSD Control Module, Active Hood Lift Control Module |
| P/SEAT DRV1 | 30A | Driver Power Seat Module |
| P/WINDOW LH | 30A | Rear Power Window Module LH, Driver Power Window Module |
| DOOR LOCK | 20A | Driver/ Passenger Door Lock Actuator,Rear Door Lock Actuator LH/RH, Fuel Filler Door Motor |
| S/HEATER PASS1 | 20A | Passenger Power Seat Module |
| START2 | 7.5A | BDC, PCB Block (P/N Relay) |
| P/SEAT DRV2 | 25A | Driver Power Seat Module |

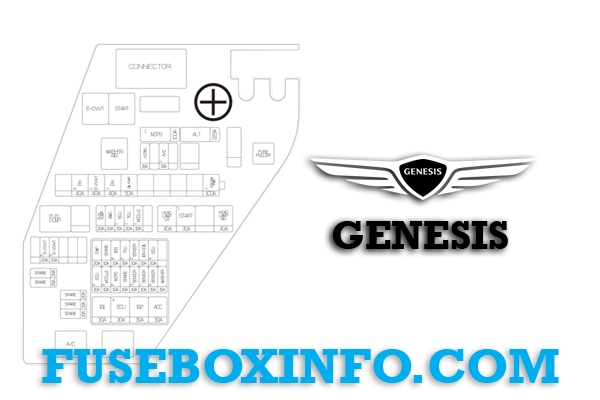

Engine compartment fuse box 1:
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 100A | MDPS Unit |
| ALT | 225A | Alternator |
| B+2 | 40A | PDC (IPS11, IPS12) |
| E-CVVT1 | 40A | E-CVVT Relay (RLY.1) |
| B+1 | 40A | PDC (Fuse - F36/F46/F48/F26/F38) |
| OIL PUMP | 50A | Electronic Oil Pump |
| COOLING FAN1 |
100A | Cooling Fan Motor (G6DS) |
| HEAD LAMP LH |
40A | Head Lamp LH |
| START | 30A | Start Relay (RLY.2) |
| HEAD LAMP RH |
40A | Head Lamp RH |
| FUEL PUMP | 20A | Fuel Pump Relay (RLY.4) |
| AWD | 20A | AWD ECU |
| ECU1 | 15A | ECM |
| TCU1 | 20A | TCM |
| MODULE1 | 10A | Active Air Flap Module |
| HORN | 15A | PCB Block (Horn Relay) |
| A/C1 | 15A | A/C Relay (RLY.5) |
| E-CVVT2 | 20A | ECM(G4KR) |
| E-CVVT3 | 20A | ECM(G4KR) |
| IG1 | 30A | IG1 Relay |
| ECU3 | 30A | Engine Control Relay |
| IG2 | 30A | IG2 Relay |
| ACC | 30A | ACC Relay |
| ECU2 | 10A | ECM |
| MODULE2 | 10A | Smart Cruise Control Radar, Front Radar LH/RH, AWD ECU |
| MDPS 2 | 10A | MDPS Unit |
| SENSOR3 | 10A | [G4KR] Oxygen Sensor (Up/Down) [G6DS] Not Used |
| SENSOR1 | 10A | [G4KR] Injector #1~#4, E/R Junction Block (RLY.4) [G6DS] Injector #1~#6(MPI), E/R Junction Block (RLY.4) |
| SENSOR4 | 15A | Cooling Fan Motor |
| WASHER | 15A | Washer Relay, E/R Junction Block (RLY.3) |
| EWP | 20A | Electric Water Pump |
| IEB4 | 10A | IEB Unit |
| TCU2 | 15A | P/N Relay, TCM, Electronic Oil Pump |
| SENSOR2 | 10A | [G4KR] E/R Junction Block (RLY.5), Oil Control Valve (Exhaust), Oil Pump Solenoid Valve, Purge Control Solenoid Valve,RCV Control Solenoid Valve, Canister Close Valve [G6DS] E/R Junction Block (RLY.5), RCV Control Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Pump Solenoid Valve, Oxygen Sensor #1~#4, Oil Control Valve #1~#4, Canister Close Valve |
| IGN COIL | 15A | [G4KR] Ignition Coil #1~#4 [G6DS] Ignition Coil #1~#6 |
| ECU4 | 20A | ECM |

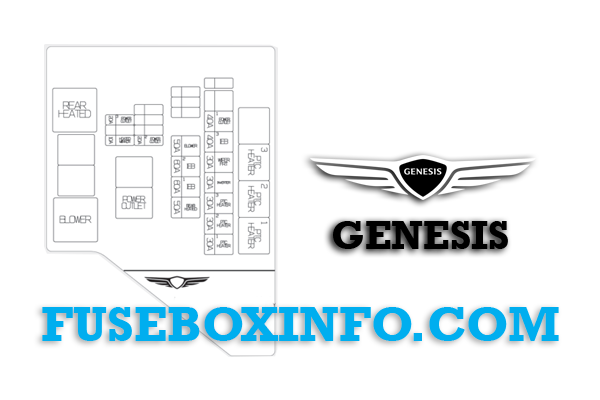

Engine compartment fuse box 2:
| Fuse/Relay Name | Rating | Functions |
| PTC HEATER1 | 30A | PTC Heater 1 Relay-LHD (RLY.4) |
| PTC HEATER2 | 30A | PTC Heater 2 Relay-LHD (RLY.3) |
| PTC HEATER3 | 30A | PTC Heater 3 Relay-LHD (RLY.2) |
| INVERTER | 30A | AC Inverter |
| WIPER FRT | 30A | Wiper Motor |
| IEB3 | 40A | IEB Unit |
| POWER OUTLET1 | 40A | Power Outlet1 Relay (RLY.6) |
| REAR HEATED | 50A | Rear Heated Relay (RLY.7) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| BLOWER | 50A | Blower Relay (RLY.10) |
| POWER OUTLET2 | 20A | Luggage Power Outlet |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror |
| POWER OUTLET3 | 20A | Front Power Outlet |
Luggage compartment fuse box:

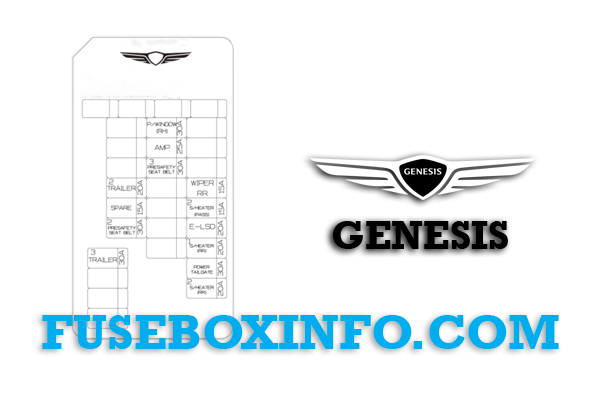

Type A

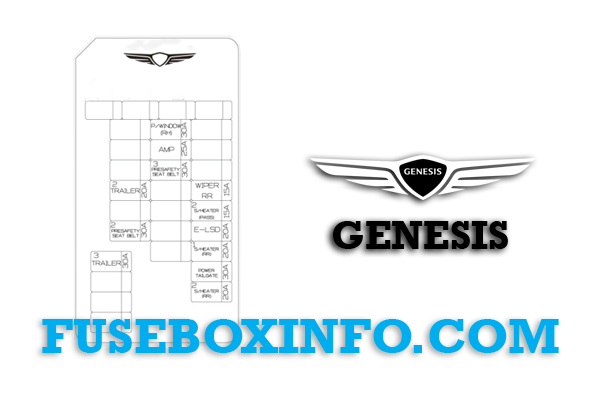

Type B
| Fuse/Relay Name | Rating | Functions |
| TRAILER3 | 30A | Trailer Connector |
| POWER WINDOW RH |
30A | Rear Power Window Module RH [LHD] Passenger Power Window Module [RHD] Driver Power Window Module |
| AMP | 25A | [W/O ISG] AMP [With ISG] Low DC-DC Converter (AMP) |
| PRESAFETY SEAT BELT3 |
30A | Pre-Active Seat Belt Unit |
| TRAILER2 | 20A | [W/O ISG] AMP [With ISG] Low DC-DC Converter (AMP) |
| WIPER RR | 15A | Rear Wiper Motor |
| S/HEATER PASS2 |
15A | [W/O IMS] Passenger Power Seat Module |
| PRESAFETY SEAT BELT2 |
30A | Pre-Active Seat Belt Unit |
| E-LSD | 20A | E-LSD Control Module |
| S/HEATER RR1 | 20A | Rear Air Ventilation Seat Control Module, Rear Seat Warmer Control Module |
| POWER T/GATE | 30A | Power Tailgate Module |
| S/HEATER RR2 | 20A | Rear Air Ventilation Seat Control Module, Rear Seat Warmer Control Module |
Battery box fuse panel:
| Fuse/Relay Name | Rating | Functions |
| AUX BATT | 50A | 12 V Lithium Auxiliary Battery |
| B+5 | 50A | PDC (IPS4, IPS5, IPS6, IPS7) |
| B+3 | 50A | PDC (Fuse - F9/F10/F17/F18/F25/F33/F34/F43/F51/F52/F59) |
| B+4 | 50A | PDC (IPS13, Long Term Load Latch Relay, Fuse - F4/F5/F12/F13/F20/F21/F37/F54/F55) |
| B+7 | 125A | Rear Junction Block (Fuse - S1/F6/F9/F12/F14/F16/F19/F20/ F22/F24/F25/F26) |
| B+6 | 100A | E/R Junction Block |
| AMS | 10A | Battery Sensor |
