Genesis G80 2020 Fuse Box Info

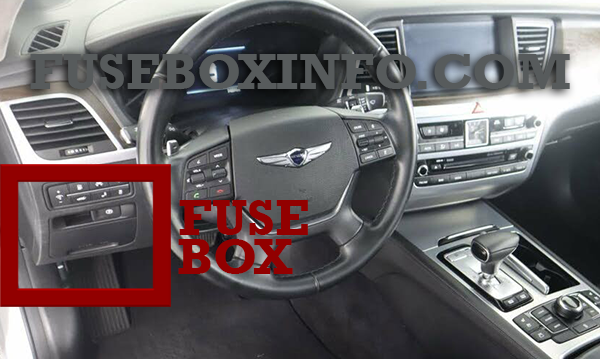

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| SUNROOF | 25A | Sunroof Motor |
| MULTIMEDIA 2 | 10A | A/V & Navigation Head Unit, Keyboard, Front Monitor, I-BOX |
| MULTIMEDIA 1 | 15A | A/V & Navigation Head Unit |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| MODULE 6 | 15A | Head Lamp LH/RH, Adaptive Front Lighting Module, A/T Shift Lever IND. Auto Head Lamp Leveling Device Module, Auto Hold & Driver Mode Switch |
| MEMORY 1 | 10A | Steering Tilt & Telescopic Module, External Buzzer, BCM, Tire Pressure Monitoring Module, Security Indicator, A/C Control Module, Digital Clock, Head-Up Display, Instrument Cluster, Driver Lumbar Support Unit, Driver IMS Control Module, Power Trunk Lid Control Module |
| PRESAFETY SEAT BELT |
10A | Pre-Active Seat Belt Module |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Lever |
| SMART KEY 3 | 10A | Smart Key Control Module |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Module |
| SMART KEY 2 | 15A | Smart Key Control Module |
| POWER OUTLET 2 | 20A | Front Power Outlet & Cigarette Lighter |
| MODULE 3 | 10A | Multifunction Switch, BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH |
| A/BAG IND | 10A | A/C Control Module, Instrument Cluster |
| P/DOOR DRV | 15A | Driver Door Latch |
| MODULE 9 | 10A | BCM |
| INTERIOR LAMP | 10A | Front Vanity Lamp LH/RH, Room Lamp, Room Lamp LH/RH, Overhead Console Lamp |
| B/ALARM HORN | 10A | Burglar Alarm Horn |
| HEATED STEERING |
15A | BCM |
| POWER OUTLET | 120A | Front Power Outlet & Cigarette Lighter |
| MODULE 4 | 10A | Blind-spot Collision Warning Radar LH/RH, Crash Pad Switch, ECS Unit, Parking Distance Warning-forward Sensor (Center) LH/RH, Console Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Steering Tilt & Telescopic Module, Parking Distance Warning-Reverse Sensor LH/RH, Parking Distance Warning-Reverse Sensor (Center) LH/RH, Electric Parking Brake Module, Lane Keeping Assist Module, Parking Distance Warning-Forward Sensor LH/RH |
| POWER OUTLET 3 | 20A | Metal Core Block (PCB #1 - Power Outlet Relay) |
| P/WDW LH | 30A | Driver Power Window Module, Rear Power Window Module LH |
| MODULE 1 | 10A | Electronic Parking Brake Switch, Hazard Switch, Rain Sensor, Data Link Connector, Driver/Passenger Door Module, Rear Door Module LH/RH |
| MODULE 5 | 10A | Head Lamp LH/RH, A/V Navigation Head Unit, Module, A/C Control Module, Electro Chromic Mirror, I-BOX, Driver/Passenger CCS Module, Driver/Passenger Seat Warmer Control Module, AMP, Rear CCS Module LH/RH, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module, Driver Power Seat Switch |
| P/DOOR PASS | 15A | Passenger Door Latch |
| S/HEATER PASS | 20A | Passenger CCS Module, Passenger Seat Warmer Control Module |
| MODULE 10 | 10A | Driver/Passenger Power side view Mirror |
| E-SHIFTER 1 | 10A | Electronic ATM Shift Lever |
| SMART KEY 1 | 10A | Start/Stop Button Switch |
| MODULE 7 | 10A | Surround View Monitor Module, Sunroof Motor, Head-Up Display, Cooling Fan Controller, Passenger Lumbar Support Unit |
| MODULE 8 | 10A | Smart Key Control Module, BCM |
| MODULE 2 | 20A | Smart Key Control Module, Overhead Console Lamp, BCM, AMP Digital Clock, Keyboard, I-BOX, A/V & Navigation Head Unit, Front Monitor, Electronic ATM Shift Lever, Front Wireless Charger, Front Power Outlet & Cigarette Lighter, Multi-View Camera Module, Metal Core Block (PCB #1 - Power Outlet Relay) |
| P/SEAT DRV 1 | 30A | Driver IMS Control Module, Driver Power Seat Relay Box |
| P/SEAT PASS 1 | 30A | Passenger Power Seat Relay Box |
| DOOR LAMP | 10A | Driver/Passenger Door Module, Rear Door Module LH/RH |
| BRAKE SWITCH | 10A | Smart Key Control Module, Stop Lamp Switch |
| A/CON | 20A | Metal Core Block (PCB #1 - Blower Relay), Ionizer, CO2 Sensor, A/C Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 200A | Alternator, Multifuse (BATT) - B+2/ B+5/ MDPS 1, Fuse - P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2 |
| B+1 | 60A | IGPM (Fuse - BRAKE SWITCH, E-SHIFTER 1 Leak Current Autocut Device (Fuse - INTERIOR LAMP/ MULTI MEDIA 1/ MEMORY 3), IPS 1) |
| B+3 | 60A | IGPM (Fuse - SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7) |
| B+4 | 60A | IGPM (Fuse - DOOR LAMP/ MODULE 9/ MODULE 10, IPS 4/ IPS6/ IPS) |
| B+6 | 60A | Metal Core Block (PCB #1 Fuse - ECU 3/ IG2/ MODULE 1) |
| B+7 | 80A | Metal Core Block (PCB #2 Fuse - HORN/ ACC/ EPB 1/ EPB 2/ B/UP LAMP) |
| B+2 | 60A | IGPM (Fuse - P/HANDLE/ P/WDW LH/ P/SEAT DRV 1/ P/SEAT PASS 1/ S/HEATER PASS/ POWER OUTLET 3/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS) |
| B+5 | 80A | Metal Core Block (PCB #1 Fuse - BLOWER/ DEICER/ H/LAMP WASHER/ H/LAMP HI SOL) |
| MDPS 1 | 125A | MDPS Unit |
| C/FAN | 80A | Cooling Fan Controller |
| P/SEAT RR |
30A | Not Used |
| ESC 2 | 40A | ESC Module, Multipurpose Check Connector |
| ESC 1 | 40A | ESC Module, Multipurpose Check Connector |
| P/SEAT DRV 2 | 25A | Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| VACUUM PUMP |
40A | Vacuum Pump Relay |
| WIPER 1 | 30A | Wiper Motor |
| S/HEATER DRV |
25A | Driver CCS Module, Driver Seat Warmer Control Module |
| 4WD | 30A | 4WD ECM |
| PRESAFETY SEAT BELT 1 |
30A | Pre-Active Seat Belt Module |
| PRESAFETY SEAT BELT 2 |
30A | Pre-Active Seat Belt Module |
| IG2 | 30A | IG2 Relay |
| ECU 3 | 30A | Engine Control Relay |
| MODULE 1 | 10A | 4WD ECM, Smart Cruise Control Radar, Active Air Flap |
| WIPER 2 | 10A | Metal Core Block (PCB #2 - Wiper Relay) |
| WASHER | 20A | Washer Relay |
| SENSOR 2 | 10A | G6DN : Oxygen Sensor #1/#2/#3/#4, Variable Intake Solenoid Valve #1/#2 G8BE : Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat G6DP : Oxygen Sensor #1/#2/#3/#4, RCV Control Solenoid Valve |
| SENSOR 1 | 10A | Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve |
| SENSOR 3 | 10A | Electronic Thermostat, Rear Junction Block (Fuel Pump Relay) |
| SENSOR 4 | 10A | G8BE : Camshaft Position Sensor #1/#2/#3/#4 |
| IGN COIL | 15A | G6DN : Ignition Coil #1/#2/#3/#4/#5/#6 G8BE : Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8 G6DP : Ignition Coil #1/#2/#3/#4/#5/#6 |
| ECU 4 | 20A | ECM |
| H/LAMP HI SOL |
10A | H/LAMP HI SOL Relay |
| DEICER | 20A | Metal Core Block (PCB #2 - Front Deicer Relay) |
| H/LAMP WASHER |
25A | Head Lamp Washer Relay |
| A/CON 2 | 10A | A/C Control Module |
| BLOWER | 40A | Blower Relay |
| IG1 | 40A | IG1 Relay |
| START | 30A | E/R Junction Block (RLY. 2 - Start Relay) |
| ECU 1 | 15A | ECM |
| TCU 1 | 20A | TCM |
| ESC 3 | 10A | ESC Module |
| MODULE 3 | 10A | Smart Cruise Control Radar, Active Air Flap, 4WD ECM |
| MDPS 2 | 10A | MDPS Unit, Steering Angle Sensor |
| SENSOR 5 | 10A | G6DP : Brake Boost Vacuum Pressure Sensor Switch |
| HORN | 20A | Horn Relay |
| ECU 2 | 10A | ECM |
| TCU 2 | 15A | TCM, Transmission Range Switch, P/N Relay, B/UP Lamp Relay |
| EPB 2 | 15A | Electronic Parking Brake Module |
| EPB 1 | 15A | Electronic Parking Brake Module |
| B/UP LAMP | 10A | B/UP Lamp Relay |
| ACC | 40A | ACC Relay |
Luggage compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| P/TRUNK | 30A | Power Trunk Lid Control Module |
| P/DOOR RR RH | 15A | Rear Door Latch RH |
| DOOR LOCK 2 | 15A | Passenger Door Module |
| P/DOOR RR LH | 15A | Rear Door Latch LH |
| AIR BAG | 15A | Air Bag Relay |
| SPARE 1 | 10A | Spare Fuse |
| P/SEAT PASS 2 | 25A | Passenger Power Seat Relay Box |
| F/LID | 10A | Fuel Lid Open Relay, Crash Pad Switch |
| ECS | 15A | ECS Unit |
| DOOR LOCK 1 | 10A | Driver Door Module |
| SPARE 6 | 15A | Spare Fuse |
| TRUNK | 10A | Trunk Lid Relay, Power Trunk Module Buzzer |
| S/HEATER RR RH |
20A | Rear Seat Warmer Control Module RH |
| FOG LAMP RR |
10A | Not Used |
| AMP | 25A | AMP |
| S/HEATER RR LH |
20A | Rear Seat Warmer Control Module LH |
| P/WDW RH | 30A | Passenger Power Window Module, Rear Power Window Module RH |
| F/PUMP | 20A | Fuel Pump Relay |
| RR HTD | 40A | Rear Defogger Relay |
Battery box fuse panel:
| Fuse/Relay Name | Rating | Functions |
| B+9 | 100A | Rear Junction Block (Fuse - RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/ TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/ F/PUMP/ AIR BAG) |
| B+8 | 80A | Metal Core Block (PCB #2 Fuse - TCU/ ECU 1/ START/ IG 1) |
| AMS | 10A | Battery Sensor |
