Genesis GV60 2026 Fuse Box Info

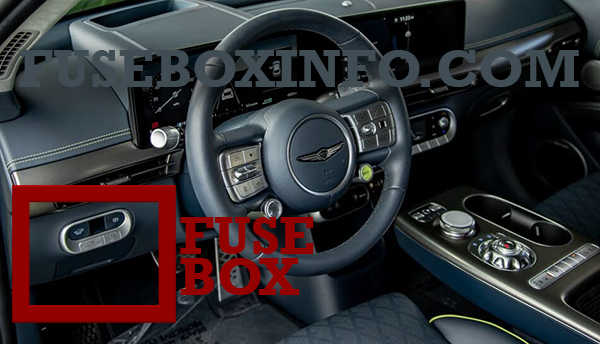

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

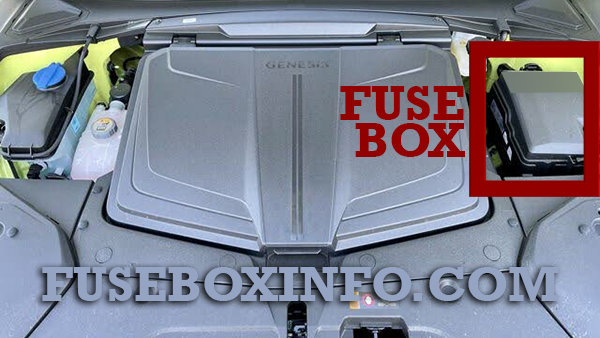

Engine compartment fuse box location:
Fuse Box Diagram | Layout

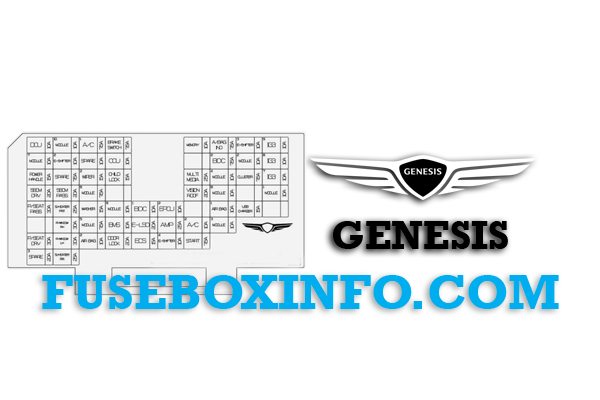

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| DCU | 10A | DCU |
| MODULE 10 | 10A | P/R Junction Block (RLY.1), Active Air Flap Unit LH/RH |
| A/C 1 | 7.5A | A/C Controller, A/C Control Module |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY | 10A | BDC, Head-Up Display, Security Indicator, Front Monitor, ADAS Unit (Parking), A/C Controller, Foot Mood Lamp LH/RH, Smart Ambient Light Control Unit, Smart Phone Wireless Charger (Mood Lamp), A/C Control Module, Rear Corner Radar LH/RH, Driver Door Mood Lamp #1/2/3 (Handle/Garnish/Pocket), Passenger Door Mood Lamp #1/2/3 (Handle/Garnish/Pocket), Rear Door Mood Lamp LH/RH #1/2 (Handle/Garnish) |
| AIRBAG IND | 7.5A | Overhead Console |
| E-SHIFTER 3 | 10A | Electronic ATM Shift Dial, SCU |
| IG3 9 | 10A | BMS, Rear Inverter |
| MODULE 7 | 10A | Steering Tilt & Telescopic Unit, ICCU Unit (In Cabin Cam) |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Dial |
| CCU | 10A | CCU |
| BDC 2 | 7.5A | BDC |
| MODULE 2 | 10A | Stop Lamp Switch, CCU |
| IG3 8 | 10A | VCMS, CCU, SCU, ICCU, V2L Unit, Console Switch, Rear Electronic Oil Pump |
| POWER HANDLE |
15A | Steering Tilt & Telescopic Unit |
| FRT WIPER 2 | 15A | Multifunction Switch |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTI MEDIA | 25A | CCIC Head Unit |
| MODULE 4 | 10A | CCIC Head Unit, ICCU Unit (In Cabin Cam), CCIC Keyboard, Electro Chromic Mirror, AMP, Driver/Passenger Power Seat Module, Smart Phone Wireless Charger |
| CLUSTER | 7.5A | Head-Up Display, Front Monitor |
| IG3 7 | 10A | A/C Controller, Front Monitor, A/C Control Module, Incar Temperature Sensor, CCIC Head Unit, A/C PTC Heater |
| SBCM DRV | 20A | Driver SBCM |
| SBCM PASS | 20A | Passenger SBCM |
| MODULE 6 | 7.5A | Head Lamp LH/RH, Passenger Power Seat Module |
| VISION ROOF | 20A | Vision Roof Unit |
| MODULE 8 | 10A | Multifunction Switch, Driver Power Window Switch |
| MODULE 1 | 10A | Center Control Panel, BDC, CCU, DCU, P/R Junction Block, CCIC Head Unit, P/R Junction Block (RLY.12), Front Monitor, ADAS Unit (Parking), AMP |
| POWER SEAT (PASS) |
30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| SEAT HEATER (FRT) |
25A | Driver Power Seat Module, Passenger Power Seat Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| WASHER | 15A | P/R Junction Block (RLY.5) |
| MODULE 9 | 10A | Driver Power Window Switch, Power Liftgate Unit, Driver Lumbar Support Motor, Driver/Passenger Power Seat Switch, Driver/Passenger Power Seat Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Driver Power Outside Mirror Switch, Driver/Passenger Door Outside Handle, Driver/Passenger Outside Mirror Unit, Charging Door Module, Rain Sensor, CCIC Keyboard, Multifunction Switch |
| BDC 1 | 10A | Front UWB Unit LH/RH, Rear UWB Unit LH/RH, BDC, UWB Unit (Master/Slave) |
| EPCU 2 | 10A | Rear Inverter |
| AIRBAG 1 | 10A | SRS Control Module, ODS |
| USB CHARGER | 15A | Console USB Charger Connector |
| POWER WINDOW (RH) |
30A | Rear Safety Power Window Module RH Passenger Safety Power Window Module |
| MODULE 5 | 7.5A | BDC |
| BMS | 10A | Battery System Assembly (BMU) |
| E-LSD | 20A | E-LSD Unit |
| AMP | 25A | AMP |
| A/C 2 | 10A | A/C Control Module |
| MODULE 3 | 10A | E-LSD Unit, Rear Inverter (System), Rear Corner Radar LH/RH, ADAS Unit (Driving/Parking), Front Corner Radar LH/RH, Front Inverter (System), Steering Tilt & Telescopic Unit, Smart Cruise Control Radar, ECS Unit, Front View Camera, Crash Pad Switch |
| POWER SEAT (DRV) |
30A | Driver Power Seat Switch, Driver Power Seat Module |
| POWER WINDOW (LH) |
30A | Rear Safety Power Window Module LH Driver Safety Power Window Module |
| AIRBAG 2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| ECS | 15A | ECS Unit |
| E-SHIFTER 4 | 10A | SCU |
| START | 7.5A | BDC, VPC |
| SEAT HEATER (RR) |
25A | Rear Seat Warmer Control Module |

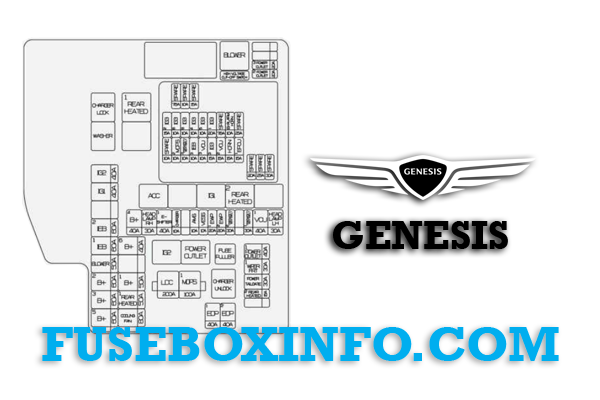

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 200A | P/R Junction Block (Fuse: F15, F16, F17, F18, F20, F21) |
| MDPS1 | 100A | MDPS Unit |
| COOLING FAN |
80A | Cooling Fan Motor |
| RR HTD 1 | 50A | P/R Junction Block (RLY.2) |
| B+1 | 50A | PDC (Fuse: F29, F36, F38, F46, F48, F49, F53, F56) |
| AUX BATT | 50A | 12V Lithium Auxiliary Battery |
| B+6 | 40A | PDC (IPS4, IPS5, IPS6, IPS7) |
| B+5 | 60A | PCB Block (IG3 Main Relay, Fuse - F02, F04) |
| B+3 | 60A | PDC (Fuse: F01, F02, F09, F10, F17, F18, F25, F26, F33, F34, F44, F51, F52, F58, F59) |
| B+2 | 60A | PDC (Long Term Load Latch Relay, IPS13, Fuse - F04, F05, F12, F20, F21, F37, F47, F54, F55) |
| BLOWER | 50A | Blower Relay |
| IEB 1 | 60A | IEB Unit |
| IEB 2 | 60A | IEB Unit |
| IG1 | 40A | P/R Junction Block (RLY.8, RLY.10) |
| IG2 | 40A | P/R Junction Block (RLY.13) |
| EOP 1 | 40A | Rear Electronic Oil Pump |
| EOP 2 | 40A | Front Electronic Oil Pump |
| REAR HEATED 2 |
15A | P/R Junction Block (RLY.7) |
| TAILGATE OPEN |
30A | Power Liftgate Unit |
| FRT WIPER 1 | 30A | Wiper Motor |
| POWER OUTLET 1 |
40A | P/R Junction Block (RLY.12) |
| B+4 | 40A | PDC (IPS2, IPS12) |
| HEAD LAMP RH |
30A | Head Lamp RH |
| E-SHIFTER 1 | 40A | SCU |
| CHARGER 1 | 10A | P/R Junction Block (RLY.3, RLY.11), ICCU, VCMS |
| AMS | 10A | 12 V Battery Sensor |
| VESS | 10A | VESS Unit |
| EWP 1 | 20A | Electronic Water Pump #1 (HV Battery) |
| EWP 2 | 20A | Electronic Water Pump #2 (HV Battery) |
| PRESAFETY SEAT BELT 2 |
30A | Preactive Seat Belt Unit |
| PRESAFETY SEAT BELT 1 |
30A | Preactive Seat Belt Unit |
| VCU 1 | 40A | VPC |
| HEAD LAMP LH |
30A | Head Lamp LH |
| POWER OUTLET 2 |
20A | Luggage Power Outlet |
| POWER OUTLET 3 |
20A | Front Power Outlet |
| IG3 2 | 15A | VPC |
| IG3 6 | 10A | Cooling Fan Motor, Front Electronic Oil Pump |
| IG3 4 | 10A | Electronic Water Pump #1, #2, A/C Coolant Valve, Front Inverter (System), Electronic A/C Compressor |
| IG3 5 | 10A | BMS Coolant 3Way Valve |
| IG3 1 | 20A | PDC |
| B/ALARM | 10A | PCB Block (Burglar Alarm Horn Relay) |
| MDPS 2 | 10A | MDPS Unit |
| PRESAFETY SEAT BELT 3 |
10A | Preactive Seat Belt Unit |
| IEB 3 | 10A | IEB Unit |
| VCU 3 | 10A | VPC |
| IG3 3 | 15A | Electronic Water Pump (Rear PE) |
| VCU 2 | 15A | VPC |
| HORN | 15A | PCB Block (Horn Relay) |
| EPCU 1 | 15A | Front Inverter (System) |
