Genesis G70 2025 Fuse Box Info

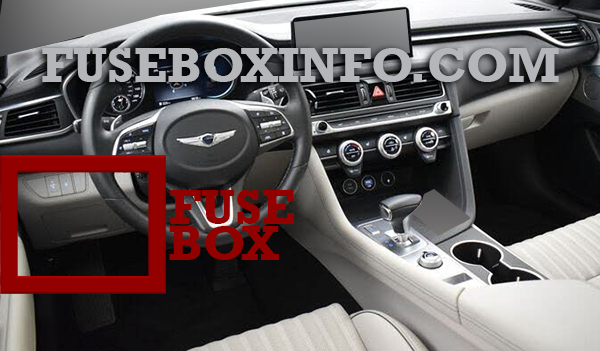

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:

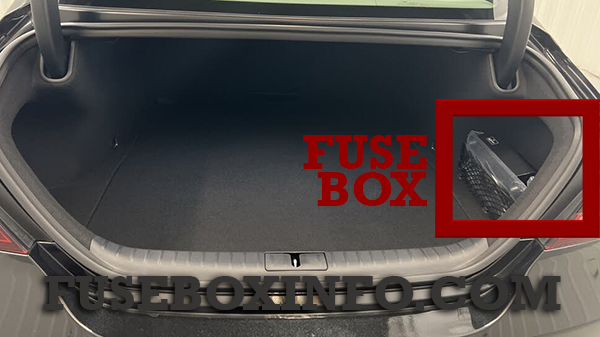

Luggage compartment fuse box location:
Fuse Box Diagram | Layout

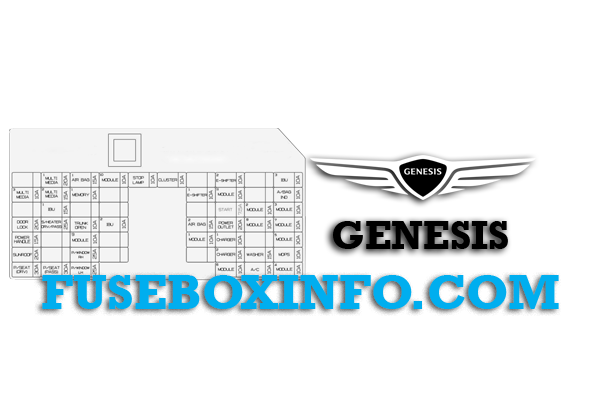

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MULTI MEDIA1 | 20A | Fuse - MULTIMEDIA 2/3 |
| AIR BAG1 | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE10 | 10A | Power Trunk Module, Driver/Passenger Power Side View Mirror, Driver Door Module, Driver IMS Control Module, Driver Air Lumbar Control Unit |
| STOP LAMP | 10A | IBU, Stop Lamp Switch |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| E-SHIFTER2 | 10A | Electronic ATM Shift Lever |
| IBU3 | 10A | IBU |
| MULTI MEDIA3 | 10A | Surround View Monitor |
| MULTI MEDIA2 | 15A | A/V & Navigation Head Unit |
| MEMORY1 | 10A | A/C Control Module, A/C Switch, Security Indicator, Head-Up Display, Instrument Cluster |
| E-SHIFTER1 | 10A | Electronic ATM Shift Lever |
| MODULE11 | 10A | IAU, Multifunction Switch |
| AIR BAG IND. | 10A | Instrument Cluster, Overhead Console Lamp |
| IBU1 | 15A | IBU |
| START | 7.5A | IBU, PCB Block (P/N Block) |
| MODULE2 | 10A | IAU, IBU |
| MODULE3 | 10A | Driver Door Module, Stop Lamp Switch |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |
| S/HEATER DRV/PASS |
25A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| TRUNK OPEN | 10A | Trunk Lid Relay, Fuel Lid Relay |
| IBU2 | 10A | Driver/Passenger Power Side View Mirror, Driver/Passenger Smart Key Outside Handle |
| AIR BAG2 | 15A | SRS Control Module |
| POWER OUTLET | 20A | Front Power Outlet |
| MODULE8 | 10A | A/C Switch |
| MODULE7 | 10A | AWD ECM, Smart Cruise Control Module, ECS Unit, Console Switch, IBU, Multifunction Camera Unit, Steering Tilt & Telescopic Module, Steering Angle Sensor, Surround View Monitor, Crash Pad Switch |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Module |
| MODULE9 | 10A | Driver Air Lumbar Control Unit |
| MODULE1 | 10A | Data Link Connector, Console Switch, Hazard Switch, Crash Pad Switch, Multifunction Switch |
| CHARGER1 | 10A | Front USB Charger, Front Tray USB Charger |
| MODULE5 | 10A | Front Seat Warmer Control Module, Driver IMS Control Module, Front Air Ventilation Seat Control Module, A/C Control Module, A/C Switch, Electro Chromic Mirror, Rear Seat Warmer Control Module, AMP, Data Link Connector, Front Wireless Charger, A/V & Navigation Head Unit |
| SUNROOF | 20A | Sunroof Control Unit (Glass) |
| P/WINDOW RH | 25A | Passenger Safety Power Window Module, Rear Safety Power Window Module RH |
| CHARGER2 | 10A | Rear USB Charger |
| WASHER | 15A | Multifunction Switch |
| MDPS | 10A | MDPS Unit |
| P/SEAT (DRV |
30A | Driver IMS Control Module, Driver Seat Manual Switch |
| P/SEAT (PASS) |
30A | Passenger Seat Manual Switch, Passenger Walk In Relay Module |
| P/WINDOW LH | 25A | Driver Safety Power Window Module, Rear Safety Power Window Module LH |
| MODULE6 | 10A | Surround View Monitor, IBU, AMP, IAU, Electronic ATM Shift Lever, A/V & Navigation Head Unit |
| A/C | 10A | A/C Control Module, A/C Switch |
| MODULE4 | 10A | Not Used |

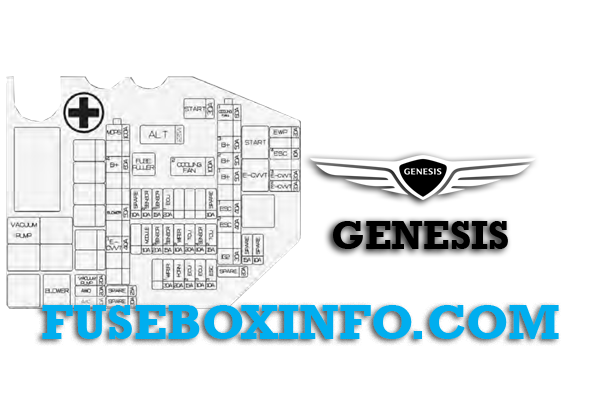

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 225A | Alternator, Fuse - COOLING FAN2, Multi Fuse 1 - COOLING FAN1, B+1, B+2, B+3, IG2, ECS1, ECS2 |
| COOLING FAN2 | 100A | [G6DP] Cooling Fan Controller |
| START | 30A | Start Relay |
| COOLING FAN1 | 80A | [G4KR] Cooling Fan Controller |
| B+3 | 50A | ICU Junction Block (Long Term Load Latch Relay, Fuse - STOP LAMP, MEMORY1, MULTIMEDIA 1/2/3, MODULE10) |
| B+2 | 50A | ICU Junction Block (Fuse - DOOR LOCK, POWER HANDLE, SUNROOF, P/SEAT (DRV/PASS)) |
| B+1 | 50A | ICU Junction Block (Fuse - S/HEATER DRV/PASS, TRUNK OPEN, MODULE9, P/WINDOW LH/RH) |
| ESC1 | 40A | ESC Module |
| ESC2 | 40A | ESC Module |
|
IG2 VACUUM PUMP |
30A 20A |
PCB Block (IG2 Relay) Vacuum Pump Relay |
| AWD | 20A | AWD ECM |
| A/C | 10A | PCB Block (A/C Relay) |
| MDPS | 100A | MDPS Unit |
| B+4 | 60A | PCB Block (Engine Control Relay, Fuse - HORN, MODULE, WIPER1) |
| BLOWER | 50A | Blower Relay |
| E-CVVT1 | 40A | [G4KR] E-CVVT Relay |
| EWP | 20A | Electronic Water Pump |
| ESC4 | 10A | ESC Module |
| E-CVVT3 | 20A | [G4KR] ECM |
| E-CVVT2 | 20A | [G4KR] ECM |
| ESC3 | 10A | ESC Module |
| ECU3 | 10A | ECM |
| ECU2 | 15A | ECM |
| HORN | 20A | Horn Relay |
|
WIPER1 TCU2 |
30A 15A |
Wiper Power Relay P/N Relay, TCM |
| SENSOR4 | 10A | Brake Vacuum Switch, E/R Junction Block (Vacuum Pump Relay) |
| TCU1 | 20A | TCM |
| WIPER2 | 10A | IBU, ECM |
| SENSOR1 | 15A | [G6DP] Rear Sub Junction Block (Fuel Pump Relay) [G4KR] Rear Sub Junction Block (Fuel Pump Relay), Injector #1-1/#2-1/#3-1/#4-1 |
| SENSOR5 | 20A | [G6DP] Ignition Coil #1/#2/#3/#4/#5/#6 [G4KR] Ignition Coil #1/#2/#3/#4 |
| MODULE | 10A | E/R Junction Block (Blower Relay) |
| ECU1 | 20A | ECM |
| SENSOR3 | 15A | [G6DP] Oxygen Sensor #1/#2/#3/#4 [G4KR] Oxygen Sensor (Up/Down) |
| SENSOR2 | 10A | [G6DP] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Canister Close Valve, Recirculation Control Solenoid Valve, Purge Control Solenoid Valve, Variable Exhaust Flap Actuator LH/RH, Cooling Fan Controller [G4KR] A/C Relay, Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Recirculation Control Solenoid Valve, Canister Close Valve, Cooling Fan Controller, Variable Oil Pump Solenoid |
| E35 | - | Vacuum Pump Relay |
| E40 | - | Blower Relay |
| E41 | - | Start Relay |
| E42 | E-CVVT Relay (G4KR) |

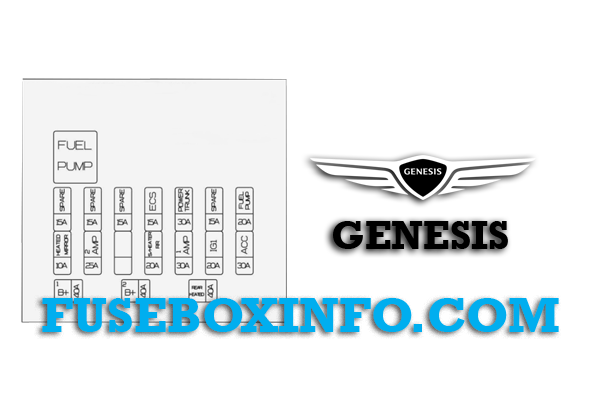

Luggage compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ECS | 15A | ECS Unit |
| POWER TRUNK | 30A | Power Trunk Module |
| FUEL PUMP | 20A | Fuel Pump Relay |
| HEAT MIRROR | 10A | Driver/Passenger Power Side View Mirror |
| AMP2 | 25A | AMP |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| AMP1 | 30A | Fuse - AMP2 |
| IG1 | 20A | IG1 Relay |
| ACC | 30A | ICU Junction Block (Fuse - POWER OUTLET1, CHARGER1/2, MODULE6) |
| B+1 | 40A | ICU Junction Block (IPS6, IPS7, IPS8, IPS9, IPS10, IPS11, Fuse - IBU 1/2) |
| B+2 | 40A | ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, Fuse - E-SHIFTER1, MODULE1, AIRBAG2) |
| REAR HEATED | 30A | Rear Heated Relay |
Battery box fuse panel:
| Fuse/Relay Name | Rating | Functions |
| B+1 | 100A | Rear Sub Junction Block (ACC Relay, Fuse - B+2, REAR HEATED, FUEL PUMP, AMP1, IG1) |
| B+2 | 100A | Rear Sub Junction Block (Fuse - B+1, ECS, S/HEATER RR, POWER TRUNK) |
| START | 40A | E/R Junction Block (Fuse - START), PCB Block (Fuse - ECU2, TCU1) |
| AMS | 10A | Battery Sensor |
