Holden Volt 2014 Fuse Box Info
Passenger compartment fuse box location:

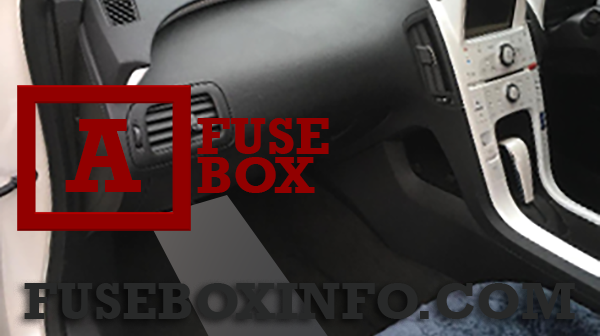

The left instrument panel fuse box is on the left side end of the instrument panel.

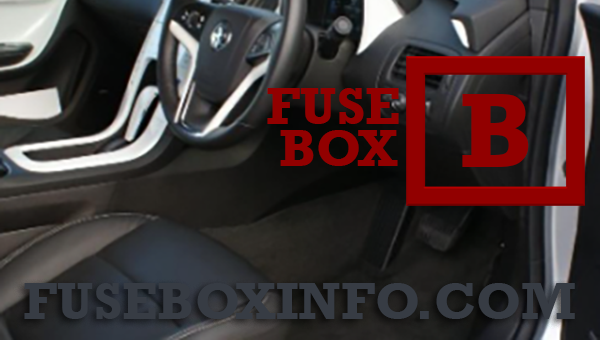

The right instrument panel fuse box is on the right side end of the instrument panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:

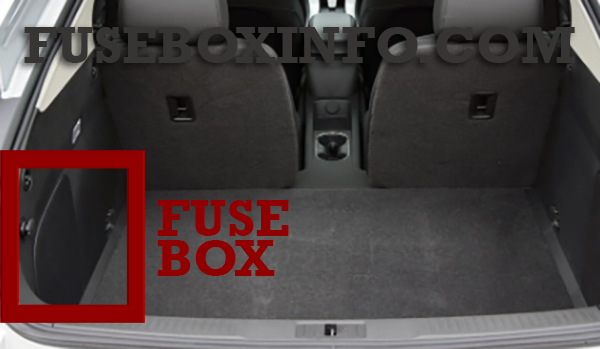

The luggage compartment fuse box is on the left side of the luggage compartment behind a removable cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | LTR |
| 2 | Radio |
| 3 | Empty |
| 4 | Display |
| 5 | HVAC |
| 6 | Airbag |
| 7 | DLC LT |
| 8 | Empty |
| 9 | GSM |
| 10 | BCM/EXT Lights |
| 11 | LT Headlamp |
| 12 | Empty |
| 13 | Empty |
| 14 | Empty |
| 15 | APO |
| 16 | Empty |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | RAP Relay |
| R2 | Empty |
| R3 | Empty |
| R4 | RHD Child Lockout |
| Diodes | |
| DIODE | Empty |
Passenger compartment fuse box B:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | SWC BKLT |
| 2 | RHD CLM |
| 3 | RHD Cluster |
| 4 | RT Headlamp |
| 5 | BCM EXT Lights |
| 6 | Empty |
| 7 | Interior Lamps |
| 8 | Turn Signal/Locks |
| 9 | Locks |
| 10 | DLCRT |
| 11 | UGDO, Theft Sensor, LDW |
| 12 | Empty |
| 13 | Empty |
| 14 | Empty |
| 15 | Empty |
| 16 | Empty |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | Empty |
| R2 | Empty |
| R3 | Empty |
| R4 | RHD DBOLT |
| Diodes | |
| DIODE | Empty |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Engine Control Module – Switched Power |
| 2 | Emissions |
| 3 | Not Used |
| 4 | Ignition Coils/ Injectors |
| 5 | CLM |
| 6a | Empty |
| 6b | Rear Demister |
| 7 | Empty |
| 8 | Empty |
| 9 | Heated Mirrors |
| 10 | Air Conditioning Control Module |
| 11 | Traction Power Inverter Module – Battery |
| 12 | Not Used |
| 13 | Cabin Heater Pump and Valve |
| 14 | PWR SNDR |
| 15 | Traction Power Inverter Module and Transmission Control Module – Battery |
| 17 | Engine Control Module – Battery |
| 22 | Left High‐Beam Headlamp |
| 24 | Empty |
| 25 | Empty |
| 26 | Theft deterrent Horn |
| 31 | Not Used |
| 32 | Run/Crank – Sensing Diagnostic Module (SDM), Instrument Cluster, Passenger Airbag Display, Automatic Dimming Inside Rearview Mirror (If Equipped) |
| 33 | Run/Crank for Vehicle Integration Control Module |
| 34 | Vehicle Integration Control Module – Battery |
| 35 | Not Used |
| 36 | Power Electronics Coolant Pump |
| 37 | Cabin Heater Control Module |
| 38 | Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump |
| 39 | Rechargeable Energy Storage System (High Voltage Battery) Control Module |
| 40 | Front Windshield Washer |
| 41 | Right High‐Beam Headlamp |
| 46 | Empty |
| 47 | Empty |
| 49 | Empty |
| 50 | Run/Crank – Rear Vision Camera, Accessory Power Module |
| 51 | Run/Crank for ABS/ Rechargeable Energy Storage System (High Voltage Battery) |
| 52 | Engine Control Module/ Transmission Control Module – Run/Crank |
| 53 | Traction Power Inverter Module – Run/Crank |
| 54 | Run/Crank – Fuel System Control Module, Air Conditioning Control Module, On Board Charger |
| J‐Case Fuses | |
| 16 | AIR Solenoid (PZEV Only) |
| 18 | Empty |
| 19 | Power Window – Front |
| 20 | Empty |
| 21 | Antilock Brake System Electronic Control Unit |
| 23 | Charge Port Door |
| 27 | AIR Pump (PZEV Only) |
| 28 | Empty |
| 29 | Empty |
| 30 | Antilock Brake System Motor |
| 42 | Cooling Fan – Right |
| 43 | Front Wipers |
| 44 | Charger |
| 45 | Empty |
| 48 | Cooling Fan – Left |
| Mini Relays | |
| 3 | Powertrain |
| 4 | Rear Demist |
| 7 | Empty |
| 9 | AIR Pump (PZEV Only) |
| 11 | Empty |
| 12 | Empty |
| 13 | Empty |
| 14 | Run/Crank |
| Micro Relays | |
| 1 | Empty |
| 2 | AIR Solenoid (PZEV Only) |
| 6 | Empty |
| 8 | Empty |
| 10 | Empty |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Empty |
| 2 | Fuel System Control Module |
| 3 | Passive Start/Passive Entry Module |
| 4 | Heated Seats (If Equipped) |
| 5 | Driver Door Switches (Outside Rear View Mirror/Refuel Request/ Driver Window Switch) |
| 6 | Fuel (Diurnal Valve and Evap. Leak Check Module) |
| 7 | Accessory Power Module Cooling Fan |
| 8 | Amplifier |
| 9 | Empty |
| 10 | Regulated Voltage Control/Ultrasonic Front and Rear Parking Assist |
| 11 | Horn |
| 12 | Rear Power Windows |
| 13 | Electric Parking Brake |
| 14 | Rear Demist (Upper Grid) |
| 15 | Empty |
| 16 | Hatch Release |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | Rear Demist (Upper Grid) |
| R2 | Hatch Release |
| R3 | Empty |
| R4 | Empty |
| R5 | Empty |
| R6 | Empty |
| R7/R8 | Horn |
| Diodes | |
| DIODE | Empty |
