Holden Rodeo 2008 Fuse Box Info

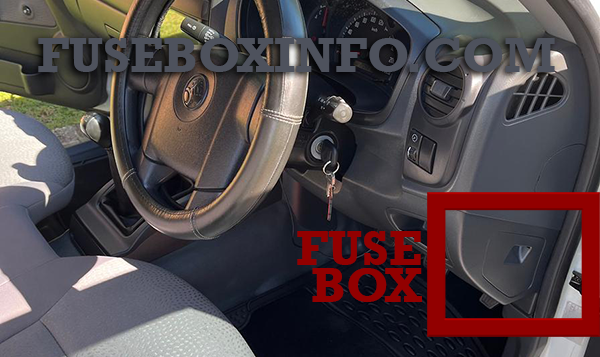

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

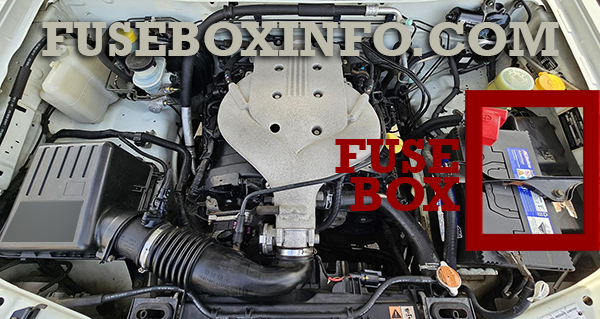

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Petrol L4 engine):
| Fuse/Relay N° | Rating | Functions |
| Fuse | ||
| 1 | - | - |
| 2 | 10A | Meter |
| 3 | - | - |
| 4 | 15A | IG coil |
| 5 | 15A | Back light |
| 6 | 10A | Turn light |
| 7 | 15A | Elec. IG |
| 8 | 10A | Engine |
| 9 | 10A | ABS/4WD |
| 10 | 20A | Frt wipe |
| 11 | 10A | Audio |
| 12 | 20A | Cigar & Acc socket |
| 13 | 15A | Audio (+B) |
| 14 | 20A | Door Lock |
| 15 | 10A | Meter (+B) |
| 16 | 10A | Room light |
| 17 | - | - |
| 18 | 15A | Stop light |
| 19 | - | - |
| 20 | 10A | Starter |
| 21 | 10A | SRS |
| Slow blow fuse | ||
| SBF 10 | - | - |
| SBF 11 | - | - |
| Connector / Relay | ||
| B-7 | - | - |
| B-8 | - | - |
| B-40 | - | - |
Passenger compartment fuse box (HFV6 engine):
| Fuse/Relay N° | Rating | Functions |
| Fuse | ||
| 1 | - | - |
| 2 | 10A | Meter |
| 3 | - | - |
| 4 | 10A | Engine |
| 5 | 15A | Back light |
| 6 | 10A | Turn light |
| 7 | 15A | Elec. IG |
| 8 | 10A | ECU |
| 9 | 10A | ABS/4WD |
| 10 | 20A | Frt wipe |
| 11 | 10A | Audio |
| 12 | 20A | Cigar & Acc socket |
| 13 | 15A | Audio (+B) |
| 14 | 20A | Door Lock |
| 15 | 10A | Meter (+B) |
| 16 | 10A | Room light |
| 17 | - | - |
| 18 | 15A | Stop light |
| 19 | - | - |
| 20 | 10A | Starter |
| 21 | 10A | SRS |
| Slow blow fuse | ||
| SBF 10 | 20A | RR defog |
| SBF 11 | 30A | Power Window |
| Connector / Relay | ||
| B-7 | - | RR defog |
| B-8 | - | Power window |
| B-40 | - | - |
Passenger compartment fuse box (Diesel engine):
| Fuse/Relay N° | Rating | Functions |
| Fuse | ||
| 1 | - | - |
| 2 | 10A | Meter |
| 3 | - | - |
| 4 | 15A | TCM |
| 5 | 15A | Back light |
| 6 | 10A | Turn light |
| 7 | 15A | Elec. IG |
| 8 | 10A | Engine |
| 9 | 10A | ABS/4WD |
| 10 | 20A | Frt wipe |
| 11 | 10A | Audio |
| 12 | 20A | Cigar & Acc socket |
| 13 | 15A | Audio (+B) |
| 14 | 20A | Door Lock |
| 15 | 10A | Meter (+B) |
| 16 | 10A | Room light |
| 17 | - | - |
| 18 | 15A | Stop light |
| 19 | - | - |
| 20 | 10A | Starter |
| 21 | 10A | SRS |
| Slow blow fuse | ||
| SBF 10 | 20A | RR defog |
| SBF 11 | 30A | Power Window |
| Connector / Relay | ||
| B-7 | - | RR defog |
| B-8 | - | Power window |
| B-40 | - | - |
Engine compartment fuse box (Petrol L4 engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | - | - |
| 3 | 20A | Trailer |
| 4 | 10A | ACG (S) |
| 5 | 10A | H/light-high (RH) |
| 6 | 10A | H/light-high (LH) |
| 7 | 10A | H/light-low (RH) |
| 8 | 10A | H/light-low (LH) |
| 9 | 20A | Fuel Pump |
| 10 | 10A | O2 Sensor |
| 11 | 10A | Tail light (RH) |
| 12 | 10A | Illumi & tail light (LH) |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| Slow blow fuses | ||
| 20 | 100A | Main |
| 21 | - | - |
| 22 | - | - |
| 23 | 20A | Cond. Fan |
| 24 | 40A | IG-1 |
| 25 | - | - |
| 26 | 20A | Frt fog light |
| 27 | 30A | Blower |
| 28 | 50A | IG-2 |
| Relays | ||
| X-1 | - | Tail light |
| X-2 | - | Fuel pump |
| X-3 | - | Horn |
| X-4 | - | H/light dimmer |
| X-5 | - | - |
| X-6 | - | Starter |
| X-7 | - | Headlight |
| X-8 | - | - |
| X-9 | - | Frt fog light |
| X-10 | - | Cond. fan |
| X-11 | - | Heater |
| X-12 | - | - |
| X-13 | - | Starter cut |
| X-14 | - | A/C Comp |
| X-15 | - | A/C thermo |
Engine compartment fuse box (HFV6 engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 15A | ECM |
| 2 | 15A | O2 Sensor pre |
| 3 | 10A | ECM (B) |
| 4 | 10A | TCM/PIM (B) |
| 5 | 10A | H/light-high (RH) |
| 6 | 10A | H/light-high (LH) |
| 7 | 10A | H/light-low (RH) |
| 8 | 10A | H/light-low (LH) |
| 9 | 20A | Trailer |
| 10 | - | - |
| 11 | 10A | Tail light (RH) |
| 12 | 10A | Illumi & tail light (LH) |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | 15A | O2 Sensor post |
| 18 | 15A | IGN. coil (RH) |
| 19 | 15A | IGN. coil (LH) |
| Slow blow fuses | ||
| 20 | - | - |
| 21 | 20A | Frt fog light |
| 22 | 60A | Rad. fan |
| 23 | 20A | Fuel pump |
| 24 | 40A | IG-1 |
| 25 | 30A | Blower |
| 26 | 40A | ABS-1 |
| 27 | 20A | ABS-2 |
| 28 | 50A | IG-2 |
| Relays | ||
| X-1 | - | Fog light |
| X-2 | - | Tail light |
| X-3 | - | Horn |
| X-4 | - | H/light dimmer |
| X-5 | - | - |
| X-6 | - | Headlight |
| X-7 | - | - |
| X-8 | - | - |
| X-9 | - | - |
| X-10 | - | - |
| X-11 | - | Heater |
| X-12 | - | ECM main |
| X-13 | - | Fuel pump |
| X-14 | - | A/C Comp |
| X-15 | - | Starter |
Engine compartment fuse box (Diesel engine):
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 10A | ACG (S) |
| 2 | 10A | TCM |
| 3 | 10A | Fuel pump |
| 4 | 10A | Engine |
| 5 | 10A | H/light-high (RH) |
| 6 | 10A | H/light-high (LH) |
| 7 | 10A | H/light-low (RH) |
| 8 | 10A | H/light-low (LH) |
| 9 | 20A | Trailer |
| 10 | 20A | Cond. fan |
| 11 | 10A | Tail light (RH) |
| 12 | 10A | Illumi & tail light (LH) |
| 13 | 10A | A/C |
| 14 | 10A | 4WD |
| 15 | 10A | Horn |
| 16 | 10A | Hazard |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| Slow blow fuses | ||
| 20 | 120A | Main |
| 21 | 40A | ABS-1 |
| 22 | 20A | ABS-2 |
| 23 | 40A | ECM |
| 24 | 40A | IG-1 |
| 25 | 30A | Blower |
| 26 | 20A | Frt fog light |
| 27 | 60A | Glow |
| 28 | 50A | IG-2 |
| Relays | ||
| X-1 | - | Fog light |
| X-2 | - | Tail light |
| X-3 | - | Horn |
| X-4 | - | H/light dimmer |
| X-5 | - | Glow |
| X-6 | - | Headlight |
| X-7 | - | Starter cut |
| X-8 | - | Starter |
| X-9 | - | Cond. fan |
| X-10 | - | Transmission |
| X-11 | - | Heater |
| X-12 | - | ECM main |
| X-13 | - | Fuel pump |
| X-14 | - | A/C Comp |
| X-15 | - | A/C thermo |
