Holden Viva 2006 Fuse Box Info

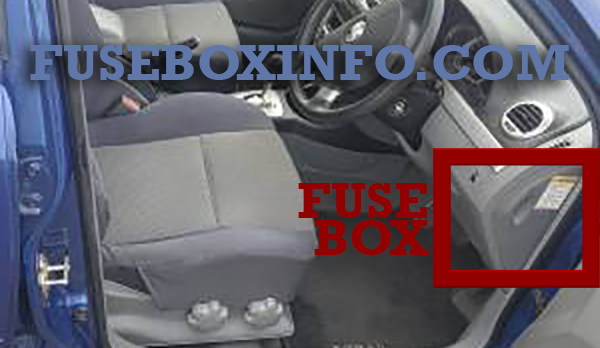

Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

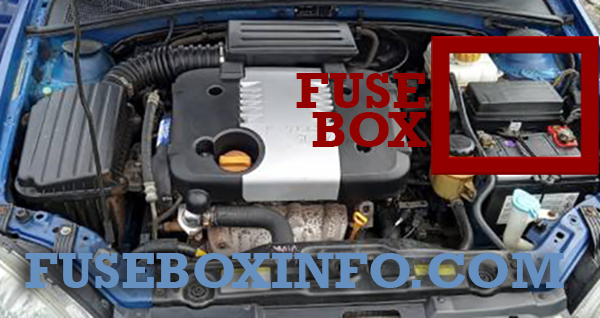

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Air Bag |
| 2 | 10A | Electronic Control Module |
| 3 | 15A | Turn Signal |
| 4 | 15A | Cluster |
| 5 | 10A | Engine |
| 6 | 20A | Heating and Air Conditioning System |
| 7 | 15A | Sunroof (If equipped) |
| 8 | 25A | Wiper |
| 9 | 10A | Anti lock Brake System (If equipped) |
| 10 | 10A | Immobilizer |
| 11 | 10A | Traction Control Module (if equipped) |
| 12 | 15A | Hazard Flashers |
| 13 | 15A | Antitheft System (If equipped) |
| 14 | 10A | Diagnosis |
| 15 | 10A | Sound System; Clock |
| 16 | 15A | Extra Jack (If equipped) |
| 17 | 15A | Lighter |
| 18 | 10A | Backup Lamps |
| 19 | 15A | Rear Fog Lamps (If equipped) |
| 20 | 15A | Automatic Climate Control (If equipped); Clock |
| 21 | 15A | Sound System |
| 22 | 10A | Immobilizer (If equipped) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Main Battery |
| 2 | 60A | Anti lock Brake System (If equipped) |
| 3 | 30A | Blower Motor |
| 4 | 30A | Ignition 2 |
| 5 | 30A | Ignition 1 |
| 6 | 25A | Headlamp |
| 7 | 10A | Electronic Control Module |
| 8 | 10A | Anti lock Brake System Warning Light Module |
| 9 | 15A | Interior Fuse Block |
| 10 | 15A | Fuel Pump |
| 11 | 10A | Air Conditioning System |
| 12 | 15A | Horn |
| 13 | 15A | High Beam Head Lamp |
| 14 | 20A | Driver's Power Windows |
| 15 | 15A | Stop Lamps |
| 16 | 15A | Door Locks |
| 17 | 10A | Heated Mirror |
| 18 | 15A | Fog Lamp (If equipped) |
| 19 | 10A | Left Illumination |
| 20 | 15A | Injector |
| 21 | 15A | Engine Management System |
| 22 | 10A | Lett Low Beam Headlamp |
| 23 | 10A | Lett Low Beam Headlamp |
| 24 | 20A | Low Speed Electric Fan |
| 25 | 30A | Demister |
| 26 | 30A | Hight Speed Electric Fan |
| 27 | 20A | Power Windows |
| 28 | 10A | Right Illumination |
| 29 | 10A | Right Low Beam Head Lamp |
| 30 | - | Low Speed Electric Fan Relay |
| 31 | - | Demister Relay |
| 32 | - | High Speed Electric Fan Relay |
| 33 | - | Front Fog Lamp Relay (If equipped) |
| 34 | - | Air Conditioning Compressor Relay |
| 35 | - | Fuel Pump Relay |
| 36 | - | Power Windows Relay |
| 37 | - | Illumination Relay |
| 38 | - | Horn Relay |
| 39 | - | Main Relay |
| 40 | - | Headlamp Relay |
