Holden Equinox 2020 Fuse Box Info

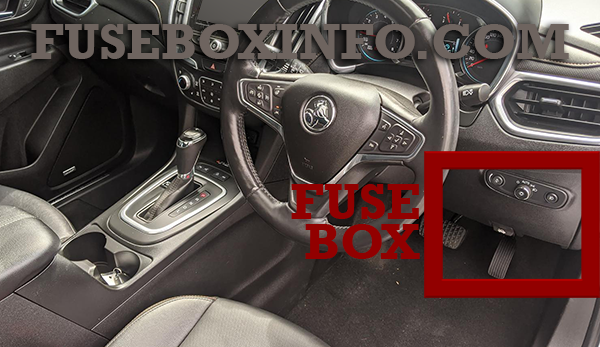

Passenger compartment fuse box location:
The instrument panel fuse box is located under the instrument panel on the driver side.

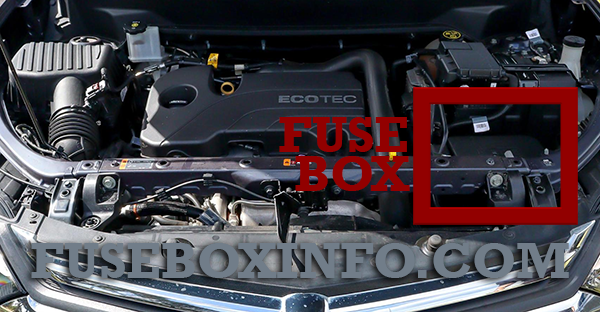

Engine compartment fuse box location:

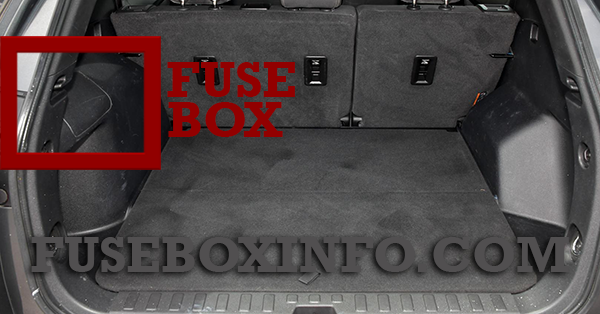

Luggage compartment fuse box location:
The rear fuse box is located behind the side trim in the rear compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses: | |
| 01 | DC AC inverter |
| 02 | Front windows |
| 03 | Trailer brake |
| 04 | Heating, ventilation, and air conditioning blower |
| 05 | Body control module 2 |
| 06 | Cyber security |
| 07 | - |
| 08 | Body control module 3 |
| 09 | Amplifier |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | Transmission control module |
| 16 | Front heated seats 1 |
| 17 | Left data link connector |
| 18 | Body control module 7 |
| 19 | Exterior mirror fold |
| 20 | Body control module 1 |
| 21 | Body control module 4 |
| 22 | Body control module 6 |
| 23 | Electric steering column lock |
| 24 | Sensing and diagnostic module |
| 25 | Occupancy sensor |
| 26 | - |
| 27 | Power seats |
| 28 | Rear windows |
| 29 | - |
| 30 | - |
| 31 | Steering wheel controls |
| 32 | Body control module 8 |
| 33 | Heating, ventilation, and air conditioning |
| 34 | Passive entry, passive start |
| 35 | Liftgate latch |
| 36 | Shift charger |
| 37 | Cigarette lighter |
| 38 | OnStar |
| 39 | Instrument panel USB |
| 40 | Camera module/ Liftgate module |
| 41 | Parking assist module |
| 42 | Radio |
| Relays: | |
| K01 | - |
| K02 | Retained accessory power |
| K03 | Liftgate |
| K04 | - |
| K05 | Logistics |
| Circuit Breakers: |
|
| CB1 | Front auxiliary power outlet |
| CB2 | Auxiliary power outlet console |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses: | |
| 01 | Front/Rear washer pump |
| 02 | Air Conditioning Clutch |
| 03 | Starter Solenoid 1 |
| 04 | Automatic Headlamp Levelling |
| 05 | Left High-beam Headlamp |
| 06 | Right High-beam Headlamp |
| 07 | - |
| 08 | Horn |
| 09 | - |
| 10 | - |
| 11 | Diesel fuel heater (diesel only) |
| 12 | Engine control module |
| 13 | Ignition coils |
| 14 | Lambda sensor 2 |
| 15 | Lambda sensor 1 |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | Front wiper speed/Control |
| 20 | Engine control module |
| 21 | Starter solenoid 2 |
| 22 | Right daytime running lamp |
| 23 | Left daytime running lamp |
| 24 | Engine control module |
| 25 | - |
| 26 | Transmission control module |
| 27 | Front Fog Lamps |
| 28 | - |
| 29 | Shift Control |
| 30 | Heated Steering Wheel |
| 31 | Engine Control Module / Transmission Control Module |
| 32 | Transmission Range Control Module |
| 33 | Antilock brake valves |
| 34 | FlexFuel Sensor |
| 35 | Australia Trailer Tow |
| 36 | Variable Functions |
| 37 | Motorised headlamp |
| 38 | NOx soot sensor (diesel only) |
| 39 | - |
| 40 | LD Trailer |
| 41 | Selective catalytic reduction module (diesel only) |
| 42 | Interior Rear View Mirror |
| 43 | - |
| 44 | Passenger side Ventilated Seat |
| 45 | Canister vent solenoid |
| 46 | Driver side Ventilated Seat |
| 47 | - |
| 48 | Fuel System |
| 49 | Steering column lock assembly |
| 50 | DC DC converter 2 |
| 51 | Front Heated Seats |
| 52 | - |
| 53 | Rear Window Demister |
| 54 | Afterboil pump |
| 55 | Mirror Defroster |
| 56 | Rear Wiper |
| 57 | Antilock Brake Pump |
| Relays: | |
| K01 | High-beam headlamps |
| K02 | Horn |
| K03 | - |
| K04 | Front Washer Pump |
| K05 | Rear Washer Pump |
| K06 | Air Conditioning Control |
| K07 | - |
| K08 | Front Wiper speed |
| K09 | Starter Solenoid |
| K10 | Fuel heater (diesel only) |
| K11 | Starter pinion |
| K12 | - |
| K13 | - |
| K14 | Headlamps/Daytime running lamps |
| K15 | Fog lamps |
| K16 | Engine Control Module |
| K17 | Selective catalytic reduction (diesel only) |
| K18 | - |
| K19 | Fuel pump |
| K20 | Rear Window Demister |
| K21 | Rear Wiper Control |
| K22 | Front Wiper Control |
| K23 | Coolant pump |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses: | |
| 1 | Exhaust fuel heater |
| 2 | Liftgate |
| 3 | Trailer auxiliary power |
| 4 | Passenger power seat |
| 5 | Memory seat module |
| 6 | Sunroof |
| 7 | Side blind spot alert |
| 8 | Trailer reverse lamps |
| 9 | Rear heated seat 1 |
| 10 | Park lamps |
| 11 | Rear heated seat 2 |
| 12 | - |
| 13 | Trailer parking lamp |
| 14 | Right trailer brake lamp/Turn signal lamp |
| 15 | Left park lamp |
| 16 | Right park lamp |
| 17 | Video processing module |
| 18 | Left trailer brake lamp/Turn signal lamp |
| 19 | All-wheel drive |
| 20 | Lumbar |
| 21 | Rear auxiliary power outlet |
| 22 | Rear drive unit |
| Relays: | |
| K1 | Right trailer brake lamp / Turn signal lamp |
| K2 | Trailer reverse lamps |
| K3 | Left trailer brake lamp / Turn signal lamp |
| K4 | Park lamps |
| K5 | Selective catalytic reduction (SCR) – (diesel only) |
