Holden Cascada 2016 Fuse Box

Holden Cascada 2016 Fuse Box Info

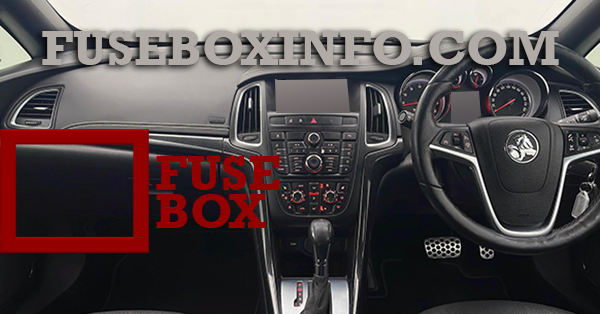

Passenger compartment fuse box location:

The fuse box is located behind a cover in the glovebox.

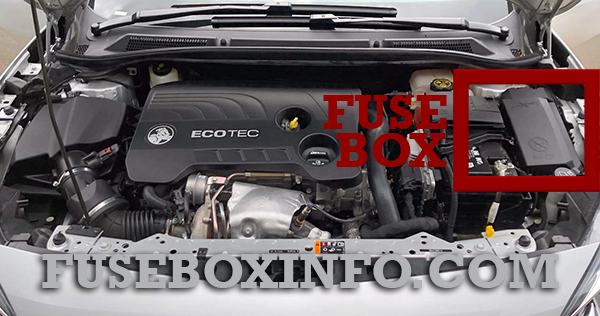

Engine compartment fuse box location:

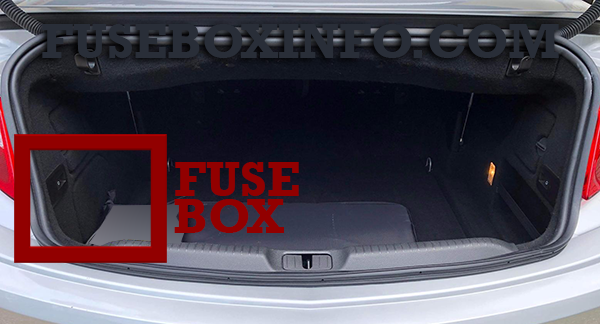

Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
1 Displays
2 Body control module/Exterior lamps
3 Body control module/Exterior lamps
4 Infotainment system
5 Information system/ Instrument
6 Power outlet/Cigarette lighter
7 Power outlet
8 Body control module/Left low beam
9 Body control module/Right low beam
10 Body control module/Door locks
11 Interior fan
12 Driver power seat
13 Passenger power seat
14 Diagnostic connector
15 Airbag
16 Boot lid relay
17 Air conditioning system
18 Service diagnose
19 Body control module/Brake lights/Tail lights/Interior lights
20 -
21 Instrument panel
22 Ignition system
23 Body control module
24 Body control module
25 -
26 Trunk power outlet accessory




Engine compartment fuse box:

Fuse/Relay N° Functions
1 Engine control module
2 Lambda sensor
3 Fuel injection/ Ignition system
4 Fuel injection/ Ignition system
5 -
6 Mirror heating
7 Fan control
8 Lambda sensor/Engine cooling
9 Rear window sensor
10 Vehicle battery sensor
11 Trunk release
12 Adaptive forward lighting/Automatic light control
13 ABS valves
14 -
15 Engine control module
16 Starter
17 Transmission control module
18 Heated rear window
19 Front power window
20 Rear power window
21 Rear electrical center
22 Left high beam (Halogen)
23 Headlamp washer system
24 Right low beam (Xenon)
25 Left low beam (Xenon)
26 Front fog lamps
27 -
28 Start stop system
29 Electric parking brake
30 ABS pump
31 -
32 Airbag
33 Adaptive forward lighting/Automatic light control
34 Exhaust gas recirculation
35 Power windows/Rain sensor/Exterior mirror
36 Climate control
37 -
38 Vacuum pump
39 Fuel system control module
40 Windscreen washer system
41 Right high beam (Halogen)
42 Radiator fan
43 Windscreen wiper
44 -
45 Radiator fan
46 -
47 Horn
48 Radiator fan
49 Fuel pump
50 Headlamp levelling/Adaptive forward lighting
51 -
52 -
53 Transmission control module/Engine control module
54 Vacuum pump/Instrument panel cluster/Heating ventilation/Air conditioning system




Luggage compartment fuse box:

Fuse/Relay N° Functions
1 Soft top control module/Power rail right
2 -
3 Parking assist
4 -
5 -
6 -
7 Power seats
8 Soft top control module
9 -
10 -
11 Trailer module/Tyre pressure monitor and rear view camera
12 Soft top control module/Tail lights
13 -
14 Rear seat electrical folding
15 -
16 Seat ventilation/Rear view camera/Soft top control module
17 -
18 -
19 Steering wheel heating
20 -
21 Seat heating
22 -
23 Soft top control module/Power rail left
24 -
25 -
26 Jumper fuse for non logistic mode
27 Passive entry
28 -
29 Hydraulic unit
30 -
31 -
32 Flex Ride
