Holden Barina 2016 Fuse Box Info

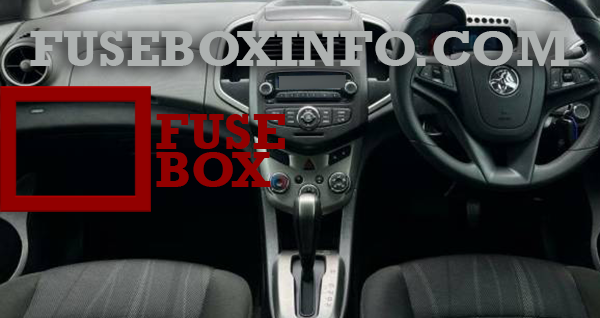

Passenger compartment fuse box location:
The instrument panel fuse box is located in the glove box.

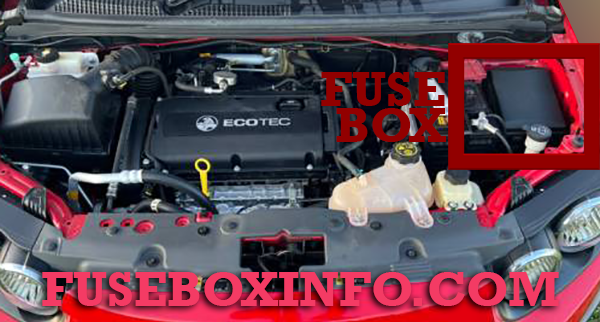

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | 2A | DLIS |
| 2 | 15A | DLC |
| 3 | 10A | AIRBAG |
| 4 | 10A | L/GATE |
| 5 | 20A | SPARE |
| 6 | 30A | BCM8 |
| 7 | 20A | BCM7 |
| 8 | 20A | BCM6 |
| 9 | 25A | BCM5 |
| 10 | 30A | BCM4 |
| 11 | 30A | BCM3 |
| 12 | 20A | BCM2 |
| 13 | 20A | BCM1 |
| 14 | 10A | IPC |
| 15 | 10A | ONSTAR |
| 16 | 10A | URPA |
| 17 | 5A | RAIN SNSR |
| 18 | 15A | AUDIO |
| 19 | 20A | TRAILER |
| 20 | 10A | VLBS/FCA/LDW |
| 21 | 4A | CHEVYSTAR |
| 22 | 10A | HVAC |
| 23 | 10A | HDLP ALC |
| 24 | 7.5A | CLUTCH SW |
| 25 | 10A | IPC AOS |
| 26 | 10A | AIRBAG RUN/CRANK |
| 27 | 10A | TRAILER RUN/CRANK |
| 28 | 2A | CLOCKSPRING |
| 29 | 10A | HVAC |
| 30 | 10A | SPARE |
| 31 | 10A | S/ROOF SW |
| 32 | 20A | CIGAR APO |
| 33 | 20A | SPARE |
| 34 | 25A | PWR WNDW REAR |
| 35 | 25A | PWR WNDW FRONT |
| 36 | 30A | DCDC CONV |
| 37 | 20A | PWR WNDW EXP DRV |
| 38 | 60A | PTC2 |
| 39 | 40A | PTC1 |
| Relays | ||
| 1 | - | RUN RELAY |
| 2 | - | L/GATE RELAY |
| 3 | - | RAP/ACCY |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1 | 30A | ABS VALVE |
| F2 | 20A | SUNROOF |
| F3 | 25A | SPARE |
| F4 | 20A | REAR WIPER |
| F5 | 5A | RVC |
| F6 | 5A | ABS OIL |
| F7 | 5A | AOS/ROS |
| F8 | 7.5A | OSRVM |
| F9 | 20A | SPARE |
| F10 | 30A | RR WDW DEFOG |
| F11 | 15A | SPARE |
| F12 | 7.5A | OSRVM HTD |
| F13 | 25A | HEATED SEAT FRONT |
| F14 | 20A | FSCM 1 |
| F15 | 10A | FLEX FUEL |
| F16 | 10A | WASHER |
| F17 | 20A | FUEL PUMP |
| F18 | 10A | ECM 5 |
| F19 | 10A | FSCM 2/LEVELING |
| F20 | 10A | TCM 1 |
| F21 | 10A | ECM 1 |
| F22 | 10A | COIL |
| F23 | 10A | ECM 4 |
| F24 | 10A | ECM 3 |
| F25 | 20A | ECM 2 |
| F26 | 15A | INJECTOR/IG COIL |
| F27 | 15A | ECM |
| F28 | 10A | AC CLUTCH |
| F29 | 15A | TCM |
| F30 | 15A | HORN |
| F31 | 10A | FRT FOG |
| F32 | 10A | HIGH BEAM LH |
| F33 | 10A | HIGH BEAM RH |
| FU1 | 40A | ABS PUMP |
| FU2 | 30A | FRT WIPER |
| FU3 | 40A | BLOWER |
| FU4 | 30A | RUN/CRANK IEC |
| FU5 | 30A | SPARE |
| FU6 | 40A | COOL FAN K5 |
| FU7 | 30A | COOL FAN K4 |
| FU8 | 20A | EVP |
| FU9 | 25A | START |
| Relays | ||
| 1 | - | FRT WIPER CONT |
| 2 | - | FRT WIPER SPEED |
| 3 | - | RR DEFOG |
| 4 | - | RUN/CRANK |
| 5 | - | SPARE |
| 6 | - | FUEL PUMP |
| 8 | - | COOL FAN K3 |
| 9 | - | P/T |
| 10 | - | START |
| 11 | - | AC CLUTCH |
| 12 | - | HIGH BEAM |
| 13 | - | COOL FAN K1 |
Auxiliary fuse box (1.4 L) - The fuse box is located in the engine compartment next to the engine coolant reservoir.
| Fuse/Relay N° | Rating | Functions |
| Relays | ||
| 1 | - | COOL FAN K3 |
| 2 | - | COOL FAN K7 |
