Holden Barina 2008 Fuse Box Info
Passenger compartment fuse box location:

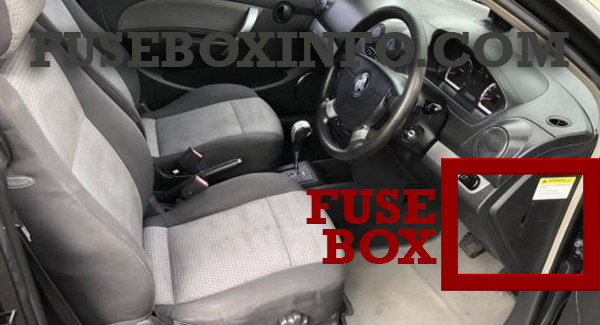

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

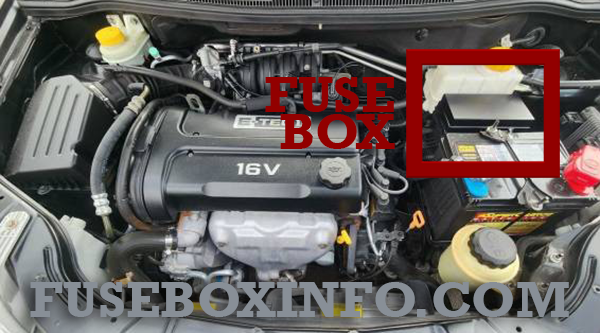

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Outside mirror demister |
| 2 | 10A | Backup lamp |
| 3 | 25A | Rear window demister |
| 4 | 10A | Audio/clock |
| 5 | 10A | EMS2 |
| 6 | 15A | Audio/RKE |
| 7 | 15A | Door lock |
| 8 | 10A | Room lamp |
| 9 | 15A | Cigarette lighter |
| 10 | 10A | Turn signals |
| 11 | 10A | Cluster |
| 12 | 25A | Wipers |
| 13 | 15A | Stop lamps |
| 14 | - | Spare |
| 15 | 10A | RR Fog (if fitted) |
| 16 | 10A | Electric mirrors |
| 17 | 10A | Horn |
| 18 | 20A | Sunroof (if fitted) |
| 19 | 10A | OBD |
| 20 | 15A | EMS1 |
| 21 | 10A | SDM |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Battery |
| 2 | - | Fuel pump relay |
| 3 | 10A | Power window 2 |
| 4 | 20/30A | Power window 1 |
| 5 | 10A | Park lamp L/H |
| 6 | 10A | Park lamp R/H |
| 7 | - | Power window relay |
| 8 | 15A | Fuel pump |
| 9 | 10A | ECU |
| 10 | 15A | EMS1 |
| 11 | 30A | Ignition2/ST |
| 12 | 30A | Ignition2/ACC |
| 13 | - | Park lamp relay |
| 14 | 15A | EMS2 |
| 15 | 15A | Hazard |
| 16 | - | Front fog lamps relay (if fitted) |
| 17 | - | Fuse puller |
| 18 | - | Headlight h i relay |
| 19 | 20A | Spare |
| 20 | 15A | Spare |
| 21 | 10A | Spare |
| 22 | 10A | Headlight low R/H |
| 23 | 10A | Headlight low L/H |
| 24 | 15A | Front fog lights (if fitted) |
| 25 | 15A | Headlight hi |
| 26 | 50A | ABS (if fitted) |
| 27 | - | Head light low relay |
| 28 | - | Fan Hi relay |
| 29 | - | Fan low relay |
| 30 | - | A/C relay |
| 31 | - | Battery positive |
| 32 | 30A | Fan hi |
| 33 | 20A | Fan low |
| 34 | 10A | A/C compressor |
| 35 | - | Main relay |
