Holden Barina 2004 Fuse Box Info

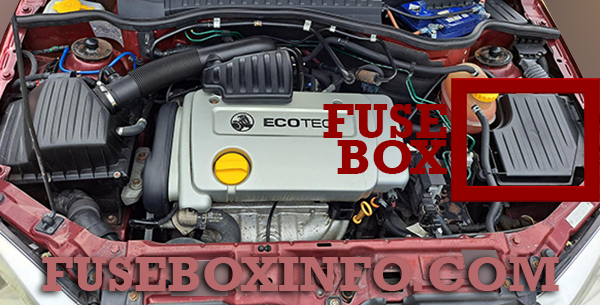

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Central control unit |
| 2 | 7.5A | Engine control unit |
| 3 | 7.5A | Instruments, horn, information display, hazard warning flashers |
| 4 | 5A | Number plate light |
| 5 | - | - |
| 6 | 10A | Automatic transmission (if fitted) |
| 7 | - | - |
| 8 | 10A | Starter |
| 9 | 20A | Fuel injection system, fuel pump |
| 10 | 10A | Horn |
| 11 | 15A | Central control unit |
| 12 | 15A | Information display, radio |
| 13 | - | - |
| 14 | - | - |
| 15 | 10A | Windscreen washer system |
| 16 | 5A | Courtesy lamp |
| 17 | 20A | Central control unit |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | 20A | Central control unit |
| 23 | 20A | Windscreen wipers |
| 24 | 5A | Radio, information display courtesy lamp, instruments, EPS, immobiliser |
| 25 | 10A | Brake lights |
| 26 | 10A | Cigarette lighter |
| 27 | - | - |
| 28 | - | - |
| 29 | 20A | Windscreen washer system |
| 30 | 15A | Engine control unit |
| 31 | 15A | Air conditioning system (if fitted) |
| 32 | 10A | Heated rear window (if fitted) |
| 33 | - | - |
| 34 | - | - |
| 35 | 5A | Radio |
| 36 | 10A | Dipped beam (left) |
| 37 | 10A | Dipped beam (right) |
| 38 | 5A | Park and tail lights (left) |
| 39 | 5A | Park and tail lights (right) |
| 40 | - | - |
| 41 | - | - |
| 42 | 10A | Fog lights |
| 43 | 10A | Headlights – high beam (left) |
| 44 | 10A | Headlights – high beam (right) |
| 45 | 30A | Air conditioning (if fitted) |
| 46 | 20A | Engine control unit |
| 47 | 30A | Heated rear window (if fitted) |
| 48 | 30A | Starter |
