Holden Commodore 2019 Fuse Box

Holden Commodore 2019 Fuse Box Info

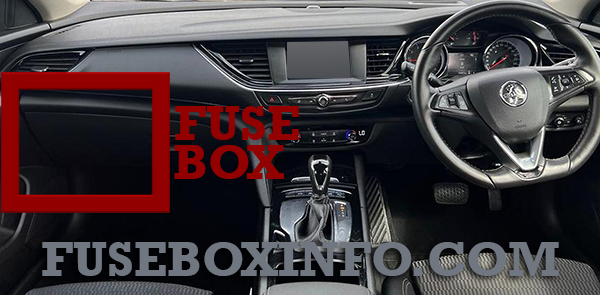

Passenger compartment fuse box location:

The fuse box is located behind a cover in the glovebox.



Engine compartment fuse box location:

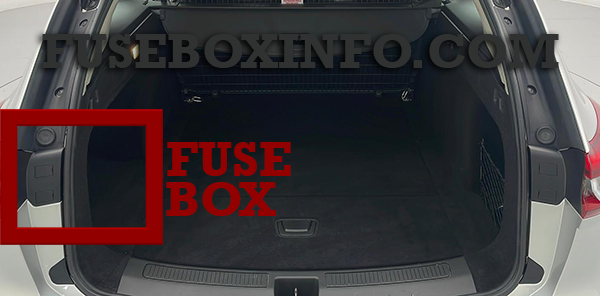

Luggage compartment fuse box location:

The rear compartment fuse boxes are located behind a cover in the left-hand side trim within the load compartment.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
1 Left power window
2 Right power window
3 Body control module
4 Climate control fan
5 Body control module
6 Trailer provisions
7 Rear seat power folding
8 Body control module
9 Engine control module
10 Head-up display
11 NOx reduction / Pipe heater
12 NOx reduction / Soot sensor
13 AdBlue module
14 Heated steering wheel
15 Transmission control module
16 Amplifier
17 Alarm
18 Body control module
19 AdBlue module
20 Body control module
21 Body control module
22 Body control module
23 Electric steering wheel lock
24 Airbag
25 Diagnostic connector
26 Power outlet load compartment
27 EBCM valve
28 Police provision
29 -
30 -
31 Steering wheel controls
32 Ignition switch
33 Climate control
34 Central gateway module
35 AUX / USB connector
36 Wireless charger
37 Rear wiper
38 OnStar module
39 Display
40 Parking assist
41 Overhead console
42 Radio



Engine compartment fuse box:

Fuse/Relay N° Functions
1 -
2 -
3 ABS
4 -
5 -
6 Tailgate
7 Fog light
8 Memory module
9 Heated windscreen
10 Seat lumbar
11 DC/DC battery
12 Heated rear window
13 Heated mirror
14 -
15 -
16 Front wiper
17 Power seat, passenger
18 Sunblind
19 Power seat, driver
20 -
21 Sunroof
22 Rear wiper / Airbag
23 Adaptive forward lighting
24 -
25 -
26 Transmission control module
27 Ignition/Instrument panel
28 -
29 Rear view camera / Air vent
30 Malfunction indicator light / Trailer
31 -
32 Camera
33 Seat heater, front
34 Seat heater, rear
35 Damping / All-wheel drive
36 Fuel system
37 -
38 -
39 -
40 Steering wheel lock
41 -
42 -
43 Heated steering wheel
44 Headlight level adjustment
45 -
46 Engine control module
47 -
48 DC/DC converter / Air vent / EBoost
49 Rear door control module
50 -
51 -
52 -
53 -
54 -
55 -
56 Starter
57 -
58 -
59 Left headlight (LED)
60 Cooling fan
61 -
62 -
63 -
64 -
65 Climate control
66 -
67 -
68 -
69 Right high beam (Halogen) / Right headlight (LED)
70 Left high beam (Halogen)
71 -
72 Starter
73 -
74 Transmission control module
75 Engine control module
76 Exhaust reduction system
77 -
78 Horn
79 Washer system
80 -
81 Engine control module
82 -
83 Ignition coil
84 Ignition coil
85 ECM
86 -
87 Diesel fuel heating
88 Air shutter
89 -
90 -
91 -
92 After boil pump
93 Electronic key system
94 -
95 Coolant pump
96 Diesel fuel heating
97 -
98 -
99 Coolant pump



Luggage compartment fuse box:

Fuse/Relay N° Functions
1 -
2 -
3 -
4 -
5 Hand-free tailgate sensor control module
6 -
7 -
8 Tailgate control module
9 -
10 -
11 -
12 Seat heater control module
13 Seat heater control module
14 -
15 Seat heater control module, rear
16 Seat heater control module, rear
17 -
18 -
19 -
20 -
21 -
22 Tailgate control module
  Battery Fuse Block, V6
1 Battery sensor module
