Volvo V70 2011 Fuse Box

Volvo V70 2011 Fuse Box Info

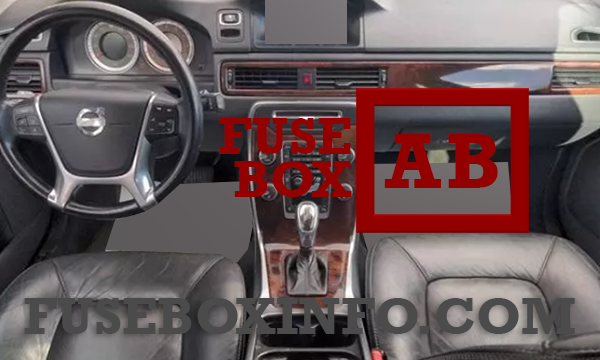

Passenger compartment fuse box location:

The fuse boxes A and B in the passenger compartment are located under the glove box.

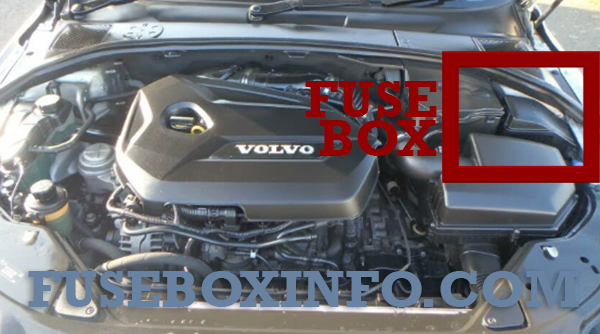

Engine compartment fuse box location:

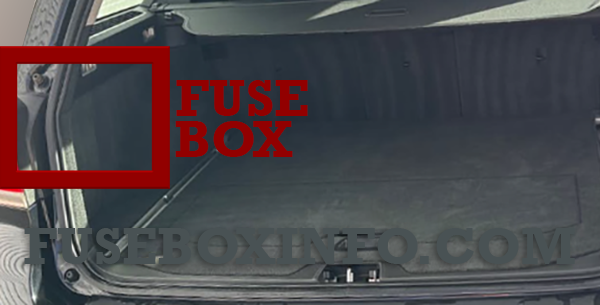

Luggage compartment fuse box location:

The rear compartment fuse box is located on the left side of the trunk behind a cover.





Fuse Box Diagram | Layout



Passenger compartment fuse box (A):

Fuse/Relay N° Rating Functions
1 40A Primary fuse, control module, audio Bass speaker
2 - -
3 - -
4 - -
5 - -
6 - -
7 15A 12 V socket, cargo area
8 20A Control panel, driver's door
9 20A Control panel, front passenger door
10 20A Control panel, rear passenger door, righ
11 20A Control panel, rear passenger door, left
12 20A Keyless*
13 20A Power seat driver's side*
14 20A Power seat passenger side*
15 15A Folding head restraint*
16 - -
17 10A Radio, Display, RTI*
18 15A Infotainment system
19 5A Telephone, BluetoothTM*
20 - -
21 5A Sun roof*, interior lighting roof, climate sensor
22 15A Cigarette lighter
Rear Seat Entertainment (RSE)*
23 15A Seat heating (passenger side)
24 15A Seat heating (driver's side)
25 - -
26 15A Seat heating, rear passenger side* right
27 15A Seat heating, rear passenger side* left
28 5A Parking assistanceParking camera*, RTI*
29 10A Control module AWD*
30 10A Active chassis Four-C*

* Option/accessory



Passenger compartment fuse box (B):

Fuse/Relay N° Rating Functions
1 15A Rear wiper
2 - -
3 7.5A Interior lighting, Power driver's seat*
4 5A Information display (DIM)
5 10A Adaptive cruise control, ACC*, collision warning system*
6 7.5A Interior lighting, Rain sensor
7 7.5A Steering wheel module
8 10A Central locking system rear, fuel filler flap
9 15A Washers
10 15A Windscreen washers
11 10A Opening tailgate
12 10A Lock tailgate
13 20A Fuel pump
14 5A Remote control key receiver, Alarm*, Climate
15 15A Steering lock
16 5A Alarm/OBDII
17 - -
18 10A Airbag
19 5A Collision warning system, radar front
20 7.5A Accelerator pedal, electric engine block heater (diesel), power door mirrors*, seat heating, rear*
21 15A Infotainment (ICM), CD & Radio
22 5A Brake light
23 20A Sun roof*
24 5A mmobiliser

* Option/accessory


Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 50A Primary fuse CEM KL30B
2 50A Primary fuse CEM KL30A
3 60A Primary fuse RJBA KL30
4 60A Primary fuse CJB KL30
5 60A Primary fuse CJB 15E KL30
6 - -
7 100A PTC Air preheater*
8 20A Headlight washers*
9 30A Windscreen wipers
10 25A Parking heater*
11 40A Ventilation fan
12 - -
13 40A ABS pump
14 20A ABS valves
15 - -
16 10A Headlamp levelling* (Xenon, Active Xenon)
17 20A Primary fuse CEM
18 5A ABS 15-feed
19 5A Speed related power steering*
20 10A Engine Control Module (ECM), transm. SRS
21 10A Heated washer nozzles*
22 5A Vacuum pump 5-cyl Petrol Turbo and GTDI
Electro-hydraulic power steering 1.6 DRIVe
23 5A Lighting panel
24 - -
25 - -
26 - -
27 5A Relay, engine compartment box
28 20A Auxiliary lights*
29 15A Horn
30 10A Engine Control Module (ECM)
31 15A Control module, automatic gearbox*
32 15A A/C compressor
33 5A Relay coils
34 30A Starter motor relay
35

10A

20A

-

10A

Ignition coils 4-cyl. petrol, Glow control module

Ignition coils 5, 6-cyl. petrol

-

EGR, TCV (2.0D) HP Fuel pump (1.6D)

36

10A

15A

Engine control module, Throttle petrol

Engine control module, Throttle diesel

37

15A

15A

Injection system (4, 5, 6-cyl. petrol), Mass air flow sensor (5, 6-cyl. petrol), ECM (6-cyl.)
Mass air flow sensor, valves (5-cyl diesel)
Mass air flow sensor, engine control module, throttle (1.6D)

Mass air flow sensor (2.0D)

38 10A Engine valves
39

15A

10A

EVAP, Lambda-sond, Injection (petrol)

Lambda-sond (4-cyl. petrol, 5-cyl. diesel)

40

-

20A

-

Vacuum pump, crankcase valve (5-cyl. turbo, 2.0 GTDI)
Diesel filter heater

41 5A Crankcase ventilation heater (5-cyl. diesel)
42

60A

70A

Glow plugs (4-cyl. diesel)

Glow plugs (5-cyl. diesel)

43

60A

80A

-

Cooling fan (4 - 5-cyl. petrol)

Cooling fan (6-cyl. petrol), (5-cyl. diesel)

-

44

80A

100A

Electro-hydraulic power steering (1.6D)

Electro-hydraulic power steering (other)

* Option/accessory



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Electric parking brake, left
2 30A Electric parking brake, right
3 30A Rear window defroster
4 15A Trailer socket 2*
5 30A POT (automatic tailgate opening)*
6 - -
7 - -
8 - -
9 - -
10 - -
11 40A Trailer socket 1*
12 - -

* Option/accessory
