Volvo V70 1998 Fuse Box

Volvo V70 1998 Fuse Box Info



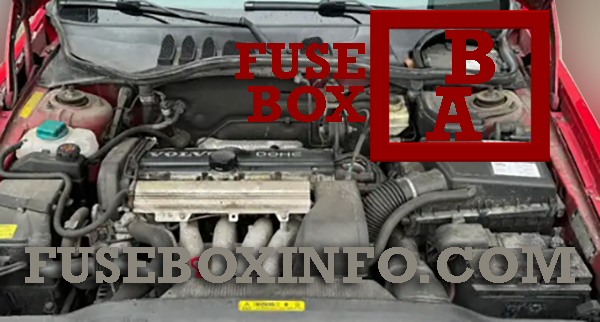

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Engine compartment fuse box A:

Fuse/Relay N° Rating Functions
1 60A Electric cooling fan
2 50A Fuses in Supplementary fuse box
3 50A Starter motor, air pump
4 50A ABS
5 50A Headlights
6 60A Fuses in Supplementary fuse box
7 60A Fuses in Supplementary fuse box
8 60A Control modules - engine/automatic transmission
9 60A Electrically operated windows
10 10A Ignition switch, Control modules - engine/automatic transmission
11 10A Fuel injectors, A/C relay
12 20A Fuel pump, fuel injection system
13 10A Control module - automatic transmission
14 10A A/C relay, emissions systems
15 - System relay
16 - Air pump relay
17 - Starter motor relay
18 - Air conditioning relay




Engine compartment fuse box B:

Fuse/Relay N° Rating Functions
1 - -
2 10A Central locking, driving mode selectors (aut. trans.)
3 10A ABS
4 10A Immobilizer (Canada only)
5 15A Climate systems, Onboard diagnostics OBDII
6 - -
7 15A Audio system
8 15A Immobilizer (Canada only), trip computer, headlight switch
9 20A Electrically heated rear seat (certain models)
10 15A Ignition switch
11 10A Brake lights
12 - -
13 15A Hazard warning flashers, headlight flashers, remote operated central locking system
14 30A Heated rear window and door mirrors
15 10A Courtesy lights, door open warning lights, trunk/cargo space light, seat belt reminder, glove compartment light
16 30A Power antenna, electrical connector for trailer, accessories
17 20A Front fog lights
18 10A Key reminder
19 15A Left high beam
20 15A Right high beam, high beam indicator light
21 15A Left low beam
22 15A Right low beam
23 10A Left front/rear parking lights, left tail light, license plate lights
24 10A Right front/rear parking lights, right tail light
25 10A Rear fog light, rear fog light indicator lamp
26 15A Headlight switch
27 15A Backup lights, turn signals
28 25A Heated seats - front/rear (certain models)
29 10A Heated rear window, shiftlock, seat belt reminder, cruise control, heated door mirrors, bulb failure warning sensor
30 - -
31 25A Passenger compartment blower-climate systems
32 10A Audio system
33 15A Tailgate wiper/washer
34 25A Windshield wipers/washers, horn
35 10A Instrument lighting, accessories, power sun roof
36 15A Rear auxiliary socket, power sun roof
37 AUT/CB Power windows, power sun roof
38 - -
39 AUT/CB Power seat (driver's side)
40 AUT/CB Power seat (passenger's side)
